Urgent : How to Bind more Values in the RadScheduler

[Brijesh]

Hi..

I Am using  Rad Scheduler in my web application.

I have almost done with the basic functionality, But i have a issue that is I want to display the Different value in the Subject, Description and i want an extra value using that i want to set the the CSS for the Appointment.


such as
SubjectId="1"
Subject = "Task"
Description = "This is a Task."
TypeId= 1

SubjectId="10"
Subject = "TroubleTicket"
Description = "This is a TroubleTicket."
TypeId= 2

so on radsch_AppointmentDataBound() event
I am checking  following condition.



if( e.Appointment.TypeId==1)

            {

                e.Appointment.CssClass = "rsCategoryYellow";

            }

            else if (e.Appointment.TypeId== 2)

            {

                e.Appointment.CssClass = "rsCategoryRed";

            }

            else

            {

                e.Appointment.CssClass = "rsCategoryGreen";

            }

-- right now i have used in subectid (Following code)

if( e.Appointment.Subject == Convert.ToString((int)EventType.Task))

            {

                e.Appointment.CssClass = "rsCategoryYellow";

            }

            else if (e.Appointment.Subject == Convert.ToString((int)EventType.TroubleTicket))

            {

                e.Appointment.CssClass = "rsCategoryRed";

            }

            else

            {

                e.Appointment.CssClass = "rsCategoryGreen";

            }

-- also I m attaching my code to.

Aspx

 <telerik:RadScheduler ID="radschMyCalendar" runat="server" Width="100%" DataKeyField="PrimeId"

                    DataStartField="StartDateTime" StartEditingInAdvancedForm="true" DataEndField="DueDateTime"

                    DataSubjectField="TypeId" DataDescriptionField="Description" ShowAllDayRow="true"

                    Culture="en-US" Height="100%" SelectedView="MonthView" AllowDelete="false" FirstDayOfWeek="Monday"

                    LastDayOfWeek="Sunday" OnAppointmentDataBound="radschMyCalendar_AppointmentDataBound">

                    <MultiDayView UserSelectable="false" />

                    <AdvancedForm Modal="true" />

                    <TimelineView UserSelectable="false" />

                    <AppointmentContextMenuSettings EnableDefault="true" />

                    <AppointmentTemplate>

                        <div>

                            <%# Eval("Subject").ToString().Replace(",", "<br/>")%>

                        </div>

                    </AppointmentTemplate>

                </telerik:RadScheduler>

aspx.cs

 if (objMyCalendarList != null)

            {

                radschMyCalendar.DataSource = objMyCalendarList;

                objMyCalendarList = objMyCalendarList.FindAll(delegate(MyActivityBE obj) { return obj.StartDateTime < obj.DueDateTime; });

                radschMyCalendar.DataBind();

            }

            else

            {

                radschMyCalendar.DataSource = null;

                radschMyCalendar.DataBind();

            }

protected void radschMyCalendar_AppointmentDataBound(object sender, SchedulerEventArgs e)

        {

            e.Appointment.ToolTip = e.Appointment.Description;

            RadScheduler radschMyCalendar = (RadScheduler)sender;



            if( e.Appointment.Subject == Convert.ToString((int)EventType.Task))

            {

                e.Appointment.CssClass = "rsCategoryYellow";

            }

            else if (e.Appointment.Subject == Convert.ToString((int)EventType.TroubleTicket))

            {

                e.Appointment.CssClass = "rsCategoryRed";

            }

            else

            {

                e.Appointment.CssClass = "rsCategoryGreen";

            }

            e.Appointment.ToolTip = e.Appointment.Description;



        }

---

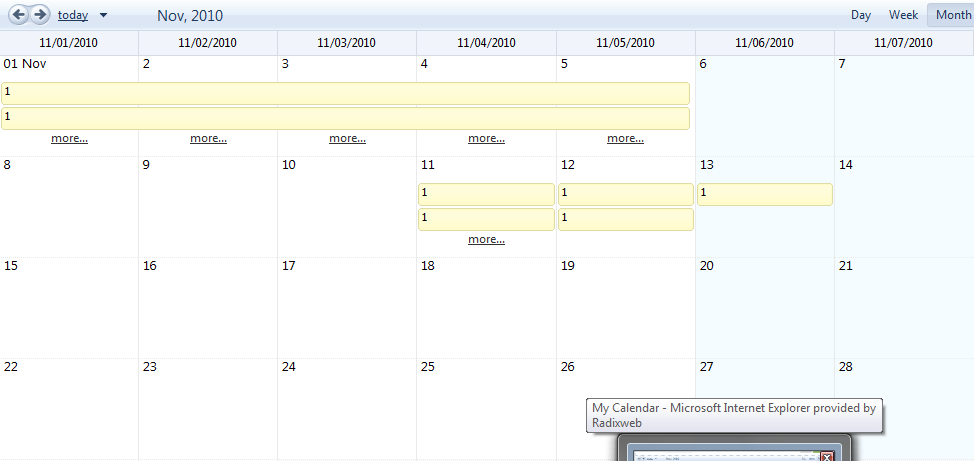

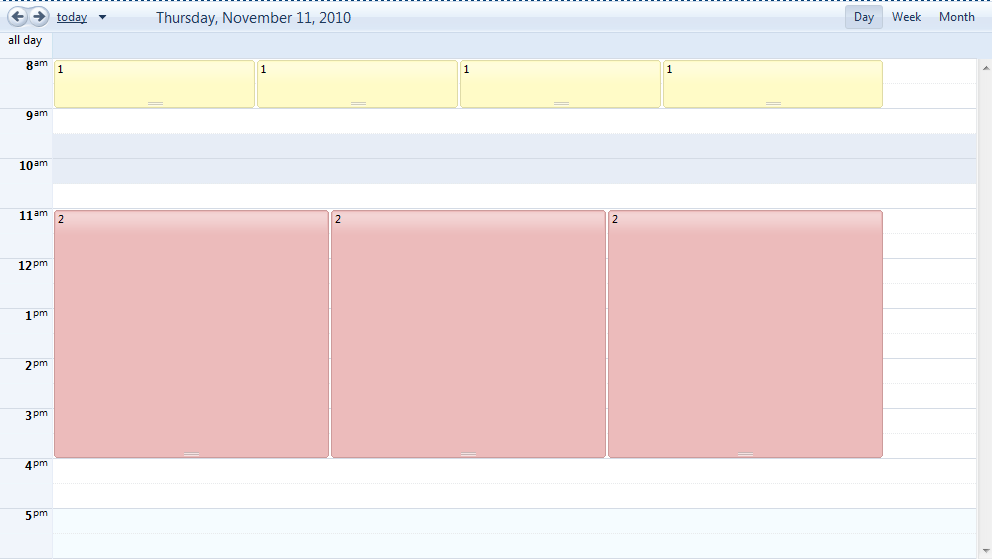

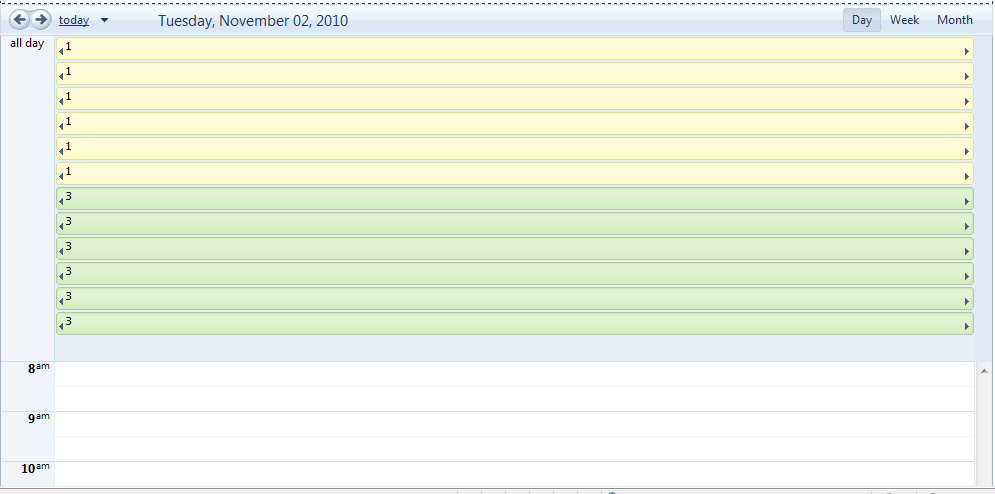

I have also attached some images..
So anyone can tell me that how can i able to get this functionality..

Thanx in advance.

[Peter]

Hello Brijesh,

You can use custom attributes as shown in this demo. In your case you will have to set CustomAttributeNames="TypeId" and you can access or set the value from code behind with e.Appointment.Attributes["TypeId"].


Greetings,
Peter
the Telerik team
