Unused space when RadTimeline is inside RadTimeBar

3 posts, 0 answers
  1. Sébastien
    Sébastien avatar
    2 posts
    Member since:
    Jun 2012

    Posted 15 Mar 2018 Link to this post

    Hi,

    I'm currently working on a project that has a telerik TimeLine within a TimeBar.  The data is presented in groups.

    I'm not sure at which point it happened, maybe when we embedded the TimeLine in the TimeBar (?), but I'm going in circles trying to find out how to reclaim the unused-space between the time markers and the groups.

    Attached is a screenshot of the TimeBar.  I added a yellow border to show that the "lost space" is at the top of the TimeLine, above the "Input" group.  I think this is the space where the TimeLine's time-markers used to be -- now we only see the TimeBar time-markers.

    Is there a property I can set to push all the data upward, so that it comes flush with the top of the TimeLine's upper-border?

    Thank you for any help you can provide,

    Seb

    PS: Using Dev-Studio's debugger, I got the timeline's "PART_TimelineItemContainer"... and found that setting "EffectiveValueCountainer" to 1 makes the unused space disappear... but I'm sure this is not the way to do it !

  2. Sébastien
    Sébastien avatar
    2 posts
    Member since:
    Jun 2012

    Posted 15 Mar 2018 in reply to Sébastien Link to this post

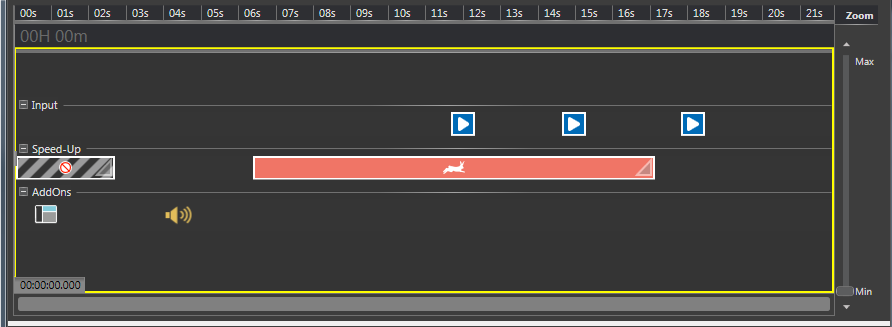

    (addendum) this is my first post... it looks like my picture didn't get uploaded.  This is the image that illustrates my question above:
  3. Stefan
    Admin
    Stefan avatar
    1073 posts

    Posted 20 Mar 2018 Link to this post

    Hi Sebastien,

    Thank you for the attached image.

    On my end the control is visualized in this manner irrelevant to whether it is placed within a RadTimeBar or not. Can you please take a look at the attached sample? Am I missing something? Also, could you please clarify how are you setting the EffectiveValueContainer, as the control does not expose such property?

    Regards,
    Stefan
