Unique Dropdownlist per grid row housed within a parent Grid's detail template

17 Answers 260 Views
Grid
This is a migrated thread and some comments may be shown as answers.
ASAP Developer
Top achievements
Rank 1
ASAP Developer asked on 09 Oct 2013, 08:29 PM
I'm having trouble figuring out how to have a dropdown list within a grid while performing inline editing with data that is unique to each individual row.

We have a grid that has a detail template, and in the detail template is another grid (in reality the child grid is housed within a tab panel but I'm presenting it this way for simplicity sake).  The parent grid is readonly and the child grid contains editable rows.  When adding a row to the child grid (using inline editing) we need one of the columns to display a dropdown containing values that are unique to each parent grid's row ID.

While searching through the demo's I came across the following:
http://demos.kendoui.com/web/grid/editing-custom.html
However, in our situation we need each row's dropdown to have different values (rather than binding to a single list in the viewbag).

I was horsing around with creating a column with a ClientTemplate containing a dropdownlist that pulls its data from a controller method, but was unable to figure out the exact syntax to get it to work within the context of a row detail template.  Is this the only way to go about doing this or am I missing something obvious?  Thanks!

17 Answers, 1 is accepted

Sort by
0
Vladimir Iliev
Telerik team
answered on 11 Oct 2013, 10:00 AM
Hi,


Please check the example below of achieving the desired behavior:

  1. Set the column in the child Grid in the following way:
    @(Html.Kendo().Grid<OrderViewModel>()
        .Name("Orders_#=EmployeeID#")
        .Columns(columns =>
        {
            //Product must be object
            columns.Bound(o => o.Product)
                .ClientTemplate("\\#= Product ? Product.ProductName : ''\\#")
                .EditorTemplateName("DynamicDropDownList");
  2. Add "DynamicDropDownList.cshtml" editor under the EditorTemplates folder (for example under the Views -> Shared folder):
    <script type="text/javascript">
        function getParentId() {
            return { EmployeeID: '#=EmployeeID#' };
        }
    </script>

    @(Html.Kendo().DropDownList()
            .Name("Product")
            .DataValueField("ProductID")
            .DataTextField("ProductName")
            .DataSource(ds => ds
                .Read(read => read.Action("Read_Products", "Products").Data("getParentId")))
    )
  3. Set the Controller action to return list of Products:
    public ActionResult Read_Products(int EmployeeID)
    {
        return Json(context.Products.Where(e => e.EmployeeID == EmployeeID).Select(e => new ProductViewModel
            {
                ProductID = e.ProductID,
                ProductName = e.ProductName,
                Price = e.Price
            }), JsonRequestBehavior.AllowGet);
    }
  4.
Kind Regards,
Vladimir Iliev
Telerik
Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
0
ASAP Developer
Top achievements
Rank 1
answered on 11 Oct 2013, 05:11 PM
Thank you for the example.

I went ahead and implemented it and the edit template correctly populates a drop down, however now the toolbar add button isn't adding a new row to the grid.  Here's an example of what the grid looks like:

@(Html.Kendo().Grid<Document>()
                       .Name("DocumentGrid_#=PackageID#")
                       .Columns(columns =>
                       {
                           columns.Bound(p => p.CreateDateTime).Width(110);
                           columns.Bound(p => p.OTest)
                               .ClientTemplate("\\#= OTest? OTest.Name : ''\\#")
                               .EditorTemplateName("DocumentDropDown");
                           columns.Command(commands =>
                           {
                               commands.Edit();
                               commands.Destroy();
                           }).Title("Commands").Width(200);

                       })
                         .ToolBar(toolbar =>
                             {
                               toolbar.Create();
                             })
                         .Editable(editable => editable.Mode(GridEditMode.InLine)) // Use inline editing mode
                       .DataSource(dataSource => dataSource
                           .Ajax()
                           .Model(model =>
                           {
                               model.Id(i => i.DocumentID);
                                          model.Field(p => p.OTest);
                           })
                             .PageSize(5)
                             .Read(read => read.Action("PackageRead", "Dispatch", new { PackageID = "#=PackageID#"}))
                             .Update(update => update.Action("Document_Update", "Dispatch"))
                             .Destroy(delete => delete.Action("Document_Delete", "Dispatch"))
                             .Create(create => create.Action("Document_Create", "Dispatch"))
                       )
                       .ToClientTemplate())
0
Vladimir Iliev
Telerik team
answered on 15 Oct 2013, 09:04 AM
Hi,


I would suggest to try setting default value for the "OTest" field - please check the example below:

.Model(model =>
{
    model.Id(p => p.ProductID);
    model.Field(p => p.ProductID).Editable(false);
    //set a empty object as default value - the DropDownList should have OptionLabel defined
    model.Field(p => p.Category).DefaultValue(new Kendo.Mvc.Examples.Models.ClientCategoryViewModel());
    // OR set a p[opulated object as default value
    //model.Field(p => p.Category).DefaultValue(new Kendo.Mvc.Examples.Models.ClientCategoryViewModel() {CategoryID = 1, CategoryName = "Category 1" });
})
Regards,
Vladimir Iliev
Telerik
Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
0
ASAP Developer
Top achievements
Rank 1
answered on 15 Oct 2013, 03:37 PM
Can you provide an example for the ClientCategoryViewModel?  I'm getting a serialization error when attempting to do as you suggested.
0
Vladimir Iliev
Telerik team
answered on 16 Oct 2013, 06:53 AM
Hi,


The "ClientCategoryViewModel" model can be found in the offline demos that comes with your KendoUI for ASP.NET MVC installation, however I also included the model below:

public class ClientCategoryViewModel
{
    public int CategoryID { get; set; }
    public string CategoryName { get; set; }
}
Also if you are getting "circular reference error" during serialization of current model you can check the Grid troubleshooting article for more information about how to fix this error:


Kind Regards,
Vladimir Iliev
Telerik
Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
0
ASAP Developer
Top achievements
Rank 1
answered on 23 Oct 2013, 06:42 PM
I attempted to assign a defaultvalue like you suggested and the page breaks and doesn't load.  I found the following serialization error being thrown:
Cannot serialize objects of type ...

*scratches head*.  I've checked and rechecked the grid and editor template and not seeing what could be causing the problem.  Any ideas?
0
Vladimir Iliev
Telerik team
answered on 24 Oct 2013, 06:24 AM
Hi,

As this thread is out of the original topic, may I kindly ask you to open a new support thread for the appropriate product (KendoUI DataSource in that case)?

Kind Regards,
Vladimir Iliev
Telerik
Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!
0
Eileen
Top achievements
Rank 1
answered on 04 Feb 2015, 06:21 AM
Hi Vladimir,

I am looking for same functionality without parent grid  ie., in a grid each row may have different dropdown values based on other column and I am using HTML5/ Jquery.   Cloud you please provide the above example in with Jquery.

Thanks in advance for your time.

Thanks!
0
Daniel
Telerik team
answered on 06 Feb 2015, 08:41 AM
Hello Eileen,

I am not sure if I understand the issue with the described scenario but you could just set the corresponding data when creating the editor. I have created an example based on the custom editor demo that filters the data based on the ProductID value.

Regards,
Daniel
Telerik


Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


0
Allen
Top achievements
Rank 1
Veteran
answered on 02 Feb 2021, 10:17 PM



In the step 2, getParentId(), it returns null in my try to return a titleId like return { TitleID: '#=TitleD#' }.

I saw the post is pretty old. does it still work for 2021?

[quote]



2.Add "DynamicDropDownList.cshtml" editor under the EditorTemplates folder (for example under the Views -> Shared folder):

<script type="text/javascript">
    function getParentId() {
        return { EmployeeID: '#=EmployeeID#' };
    }
</script>

@(Html.Kendo().DropDownList()
        .Name("Product")
        .DataValueField("ProductID")
        .DataTextField("ProductName")
        .DataSource(ds => ds
            .Read(read => read.Action("Read_Products", "Products").Data("getParentId")))
)
Kind Regards,
Vladimir Iliev
Telerik

Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

[/quote]
0
Georgi Denchev
Telerik team
answered on 04 Feb 2021, 12:25 PM

Hi Allen,

You can get the value of the ParentID in the BeforeEdit event of the Child grid. Save the id to a global variable and return this variable in the getParentId function.

Child grid:

.Events(e => e.BeforeEdit("onBeforeEdit"))

In the same view(.cshtml):

<script>
    let titleId = 0;

    function onBeforeEdit() {
        let parentGrid = $("#grid").data("kendoGrid"); // get the parent grid.
        let parentRow = this.wrapper.closest("tr").prev(); // get the parent row.
        titleId = parentGrid.dataItem(parentRow).TitleID; // set the TitleID to the global variable.
    }

    function listAdditionalParameter() {
        return {
            TitleID: titleId // return the titleId to the DropDownList Read method.
        }
    }
</script>

Best Regards,
Georgi Denchev
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Allen
Top achievements
Rank 1
Veteran
answered on 04 Feb 2021, 06:29 PM

Hey Georgi,

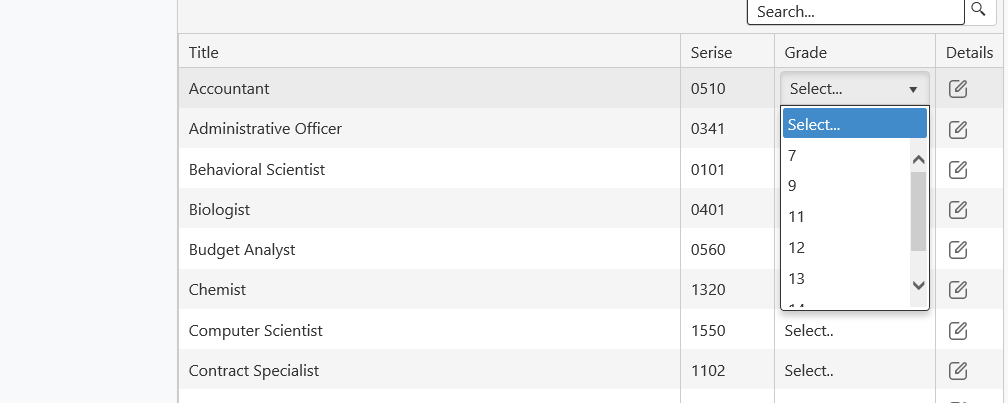

Thanks for reply. what I want to do is getting the value of the ParentID  of a dropdown list instead of child grid.

I checked events for a dropdown list in the docucment section. There is no BeforeEdit for dropdown list. the only events I saw was 'Select', 'Change', 'DataBound', 'Filtering', 'Open', 'Close', 'Cascade'. None of them will be triggered when i clicked the dropdown list.

Do you have any other suggestion?

Thanks.

Allen

0
Georgi Denchev
Telerik team
answered on 05 Feb 2021, 02:39 PM

Hi Allen,

Perhaps you are looking for the Cascading DropDownList functionality where the second dropdown obtains it's values based on the value selected in the first dropdown?

Best Regards,
Georgi Denchev
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Allen
Top achievements
Rank 1
Veteran
answered on 05 Feb 2021, 09:53 PM

Hey Georgi

Thanks for your reply. I am not  looking for the cascading dropdown list. I am looking at how to get different dropdown for each row in a grid. In the attach screenshot, you can see there are dropdown lists in column Grade in the main grid, the dropdown will be different on each row which is depended on the titleId of the row. I am looking at an event when user clicks the dropdown, then i can get the title id of the row, then read the values for the dropdown. Right now I can only get same values in all  dropdown in the column Grade. If there is no such event I can use,

Thank you very much.

Allen

[quote]Georgi Denchev said:

Hi Allen,

Perhaps you are looking for the Cascading DropDownList functionality where the second dropdown obtains it's values based on the value selected in the first dropdown?

Best Regards,
Georgi Denchev
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

[/quote]
0
Georgi Denchev
Telerik team
answered on 08 Feb 2021, 02:52 PM

Hello Allen,

Thank you for the additional information.

The approach would be the same as with the Child Grid. Attach the BeforeEdit event to the grid, get the titleId of the row that is currently being edited and pass it to the DropDownList Controller Action as additional data.

@(Html.Kendo().Grid<MyModel>()
            .Name("grid")
            .Events(ev => ev.BeforeEdit("onBeforeEdit"))
)
<script>
    let titleId = 0;

    function onBeforeEdit(e) {
        titleId = e.model.TitleID; // e.model contains all of the data for the row that is currently being edited.
    }

    function listAdditionalParameter() {
        return {
            TitleID: titleId // return the titleId to the DropDownList Read method.
        }
    }
</script>

Best Regards,
Georgi Denchev
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Allen
Top achievements
Rank 1
Veteran
answered on 08 Feb 2021, 09:22 PM

Thank you very much, Georgi.

It works very well.

0
Georgi Denchev
Telerik team
answered on 09 Feb 2021, 03:10 PM

Hi Allen,

I am glad the solution works for you!

Best Regards,
Georgi Denchev
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
