Tree Lines - Control Template

1 Answer 166 Views
TreeView
This is a migrated thread and some comments may be shown as answers.
coco asked on 14 Feb 2010, 06:29 AM
Hi ,

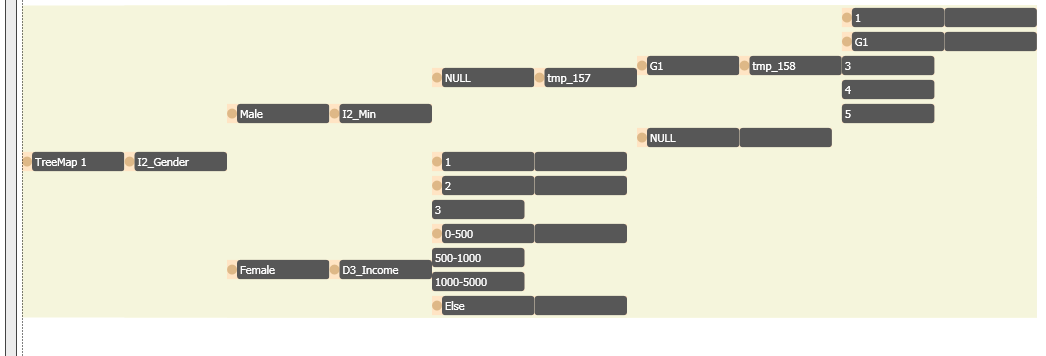

I had changed the Control Template of the tree (see the attached picture) but i had defficulties to add the lines. the code below is the tree template:

any suggestions?

            <UserControl xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

                         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

                         xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"

                         xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

                         xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

                         x:Class="GSTAT.Xeligence.DTM.Client.DTMTemplate"

                         Loaded="UserControl_Loaded" mc:Ignorable="d"

                         xmlns:vsm="clr-namespace:System.Windows;assembly=PresentationFramework">

                <UserControl.Resources>

                    <ControlTemplate TargetType="{x:Type telerik:RadTreeViewItem}" x:Key="TreeViewItemDefaultTemplate">

                        <ControlTemplate.Triggers>

                            <Trigger Property="IsExpanded" Value="True">

                                <Trigger.EnterActions>

                                    <BeginStoryboard>

                                        <Storyboard>

                                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="ItemsHost"

                                                        Storyboard.TargetProperty="Visibility" Duration="0">

                                                <DiscreteObjectKeyFrame KeyTime="0">

                                                    <DiscreteObjectKeyFrame.Value>

                                                        <Visibility>Visible</Visibility>

                                                    </DiscreteObjectKeyFrame.Value>

                                                </DiscreteObjectKeyFrame>

                                            </ObjectAnimationUsingKeyFrames>

                                            <DoubleAnimation Storyboard.TargetName="ItemsHost"

                                                        Storyboard.TargetProperty="Opacity" From="0.1" To="1.0"

                                                        Duration="0:0:0.2" />

                                        </Storyboard>

                                    </BeginStoryboard>

                                </Trigger.EnterActions>

                                <Trigger.ExitActions>

                                    <BeginStoryboard>

                                        <Storyboard>

                                            <DoubleAnimation Storyboard.TargetName="ItemsHost"

                                                        Storyboard.TargetProperty="Opacity" From="1" To="0.1"

                                                        Duration="0:0:0.2" />

                                            <ObjectAnimationUsingKeyFrames Storyboard.TargetName="ItemsHost"

                                                        Storyboard.TargetProperty="Visibility" Duration="0"

                                                        BeginTime="0:0:0.2">

                                                <DiscreteObjectKeyFrame KeyTime="0">

                                                    <DiscreteObjectKeyFrame.Value>

                                                        <Visibility>Collapsed</Visibility>

                                                    </DiscreteObjectKeyFrame.Value>

                                                </DiscreteObjectKeyFrame>

                                            </ObjectAnimationUsingKeyFrames>

                                        </Storyboard>

                                    </BeginStoryboard>

                                </Trigger.ExitActions>

                            </Trigger>

                        </ControlTemplate.Triggers>

                        <Grid Height="Auto" VerticalAlignment="Center" Background="Beige" >

                            <Grid.ColumnDefinitions>

                                <ColumnDefinition Width="Auto" />

                                <ColumnDefinition Width="Auto" />

                                <ColumnDefinition Width="Auto" />

                            </Grid.ColumnDefinitions>

                            <Grid.RowDefinitions>

                                <RowDefinition Height="Auto" ></RowDefinition>

                            </Grid.RowDefinitions>

                            <!--<Rectangle x:Name="VerticalLine" Fill="Blue" Grid.Column="0" Height="2"></Rectangle>

                            <Rectangle x:Name="HorizontalLine" Fill="Black" Grid.Column="0" Width="2"></Rectangle>-->

                            <Grid Grid.Column="1" x:Name="HeaderRow"  Height="Auto" Grid.Row="0" VerticalAlignment="Center" Background="Bisque">

                                <Grid.ColumnDefinitions>

                                    <ColumnDefinition Width="Auto"></ColumnDefinition>

                                    <ColumnDefinition Width="Auto"></ColumnDefinition>

                                    <ColumnDefinition Width="Auto"></ColumnDefinition>

                                    <ColumnDefinition Width="Auto"></ColumnDefinition>

                                </Grid.ColumnDefinitions>

                                <Grid.RowDefinitions>

                                    <RowDefinition Height="Auto"></RowDefinition>

                                </Grid.RowDefinitions>

                                <ToggleButton x:Name="Expander" Margin="0,0,0,0" Grid.Column="0"></ToggleButton>

                                <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" Grid.Column="1">

                                    <Border HorizontalAlignment="Center"

                                                        VerticalAlignment="Center"

                                                        CornerRadius="3"

                                                        Background="{DynamicResource BrushWindowDarkGrayBG}"

                                                        Padding="3">

                                        <ContentControl x:Name="Header"

                                                        Content="{TemplateBinding Header}"

                                                        ContentTemplate="{TemplateBinding HeaderTemplate}"

                                                        Width="86.487" Height="13.277" Foreground="White" />

                                    </Border>

                                </StackPanel>

                                <!--<StackPanel x:Name="IndentContainer" Orientation="Horizontal" />-->

                                <StackPanel x:Name="LoadingVisual" Orientation="Horizontal" />

                            </Grid>

                            <ItemsPresenter x:Name="ItemsHost" Grid.Column="2" Visibility="Collapsed" Height="Auto" VerticalAlignment="Center">

                            </ItemsPresenter>

                        </Grid>

                    </ControlTemplate>

                    <Style TargetType="ToggleButton" x:Key="ExpanderStyle">

                        <Setter Property="IsEnabled" Value="True" />

                        <Setter Property="IsTabStop" Value="False" />

                        <Setter Property="Cursor" Value="Hand" />

                        <Setter Property="Template">

                            <Setter.Value>

                                <ControlTemplate TargetType="ToggleButton">

                                    <ControlTemplate.Triggers>

                                        <Trigger Property="IsChecked" Value="True">

                                            <Trigger.EnterActions>

                                                <BeginStoryboard>

                                                    <Storyboard>

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="ExpandedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="1" />

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="CollapsedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="0" />

                                                    </Storyboard>

                                                </BeginStoryboard>

                                            </Trigger.EnterActions>

                                            <Trigger.ExitActions>

                                                <BeginStoryboard>

                                                    <Storyboard>

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="ExpandedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="0" />

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="CollapsedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="1" />

                                                    </Storyboard>

                                                </BeginStoryboard>

                                            </Trigger.ExitActions>

                                        </Trigger>

                                        <Trigger Property="IsEnabled" Value="False">

                                            <Trigger.EnterActions>

                                                <BeginStoryboard>

                                                    <Storyboard>

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="ExpandedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="0" />

                                                        <DoubleAnimation Duration="0:0:0.2"

                                                                    Storyboard.TargetName="CollapsedStates"

                                                                    Storyboard.TargetProperty="Opacity" To="1" />

                                                    </Storyboard>

                                                </BeginStoryboard>

                                            </Trigger.EnterActions>

                                        </Trigger>

                                    </ControlTemplate.Triggers>

                                    <Grid>

                                        <Grid x:Name="CollapsedStates">

                                            <Ellipse x:Name="CollapsedVisual" Width="10" Height="10" Fill="CornflowerBlue"></Ellipse>

                                        </Grid>

                                        <Grid x:Name="ExpandedStates">

                                            <Ellipse x:Name="ExpandedVisual" Width="10" Height="10" Fill="BurlyWood"></Ellipse>

                                        </Grid>

                                    </Grid>

                                </ControlTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                    <Style TargetType="{x:Type telerik:RadTreeViewItem}" x:Key="RadTreeViewItemStyle">

                        <Setter Property="Template" Value="{StaticResource TreeViewItemDefaultTemplate}" />

                        <Setter Property="IsExpanded" Value="True" />

                        <Setter Property="ItemsPanel">

                            <Setter.Value>

                                <ItemsPanelTemplate>

                                    <StackPanel Orientation="Vertical" VerticalAlignment="Center" HorizontalAlignment="Center"/>

                                </ItemsPanelTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                </UserControl.Resources>

                <Grid>

                                <telerik:RadTreeView

                                    x:Name="DTMTree"

                                    AllowDrop="True"

                                    IsDragDropEnabled="True"

                                    IsLineEnabled="True"

                                    ExpanderStyle="{StaticResource ExpanderStyle}"

                                    ItemContainerStyle="{StaticResource RadTreeViewItemStyle}"

                                    IsExpandOnSingleClickEnabled="True"

                                    Selected="DTMTree_Selected"

                                    MouseDoubleClick="DTMTree_MouseDoubleClick"

                                    SelectionChanged="DTMTree_SelectionChanged"

                                    Margin="5,0,0,0"

                                    IsRootLinesEnabled="True">

                                    <telerik:RadTreeView.ItemsPanel>

                                        <ItemsPanelTemplate>

                                            <StackPanel VerticalAlignment="Center"

                                                Orientation="Horizontal"

                                                HorizontalAlignment="Left" />

                                        </ItemsPanelTemplate>

                                    </telerik:RadTreeView.ItemsPanel>

                                    <telerik:RadTreeViewItem Header="Root"

                                        AllowDrop="True"

                                        ItemContainerStyle="{StaticResource RadTreeViewItemStyle}" ForceCursor="True">

                                        <telerik:RadTreeViewItem Header="A"

                                            ItemContainerStyle="{StaticResource RadTreeViewItemStyle}"/>

                                        <telerik:RadTreeViewItem Header="B"

                                            ItemContainerStyle="{StaticResource RadTreeViewItemStyle}"/>

                                    </telerik:RadTreeViewItem>

                                </telerik:RadTreeView>

                </Grid>

            </UserControl>
1 Answer, 1 is accepted

answered on 17 Feb 2010, 02:14 PM
treeview-line.zip
Hi carmel h,
Please find attached an example.

If you have further questions please do not hesitate to ask us.
I hope this will help you.
Best wishes,
Dimitrina
the Telerik team
