Tree Layout with multiple roots

1 Answer 95 Views
Diagram
This is a migrated thread and some comments may be shown as answers.
Gary
Top achievements
Rank 1
Gary asked on 10 Mar 2014, 02:09 PM
Hello,

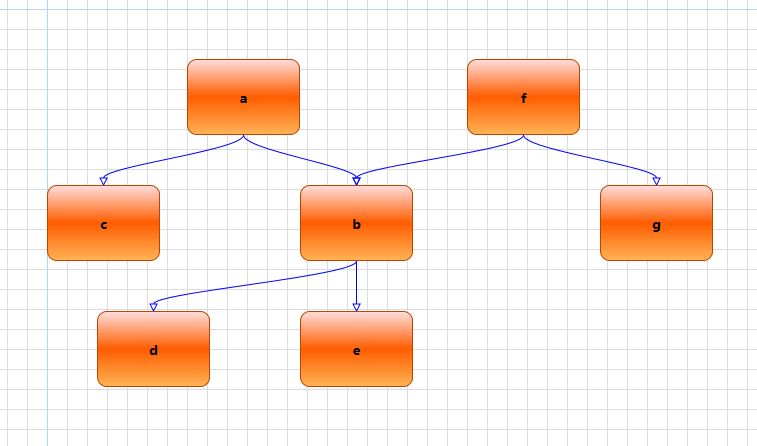

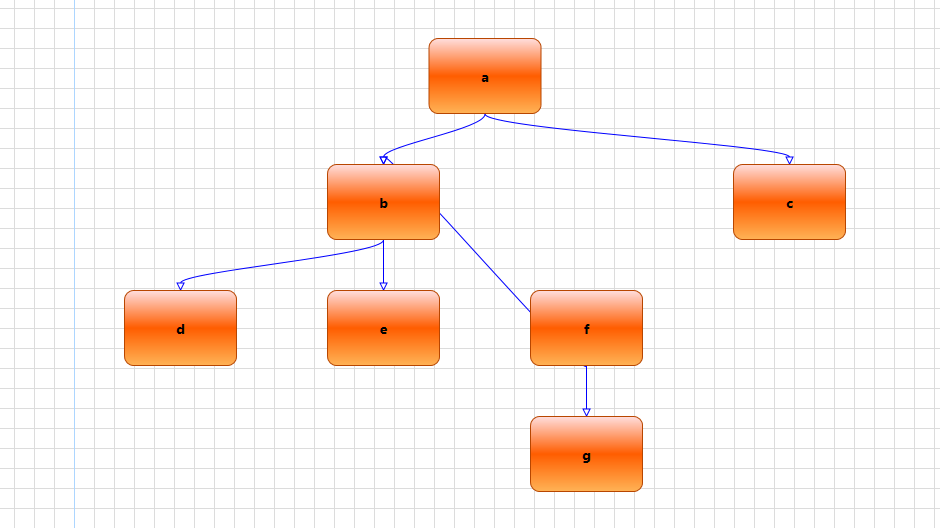

I'm trying to display a tree layout with multiple roots - in the sample I attached both "a" and "f" nodes are top level nodes - however only a gets arranged correctly. I was hoping the auto format display something more similar to the image in preferred.png

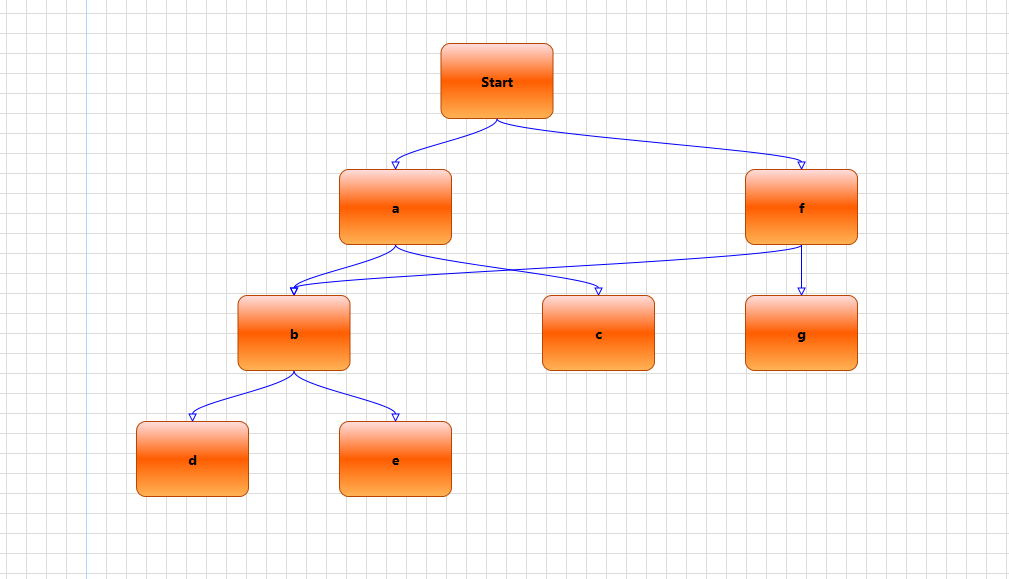

How does the multiple roots work? is this its intention to specify nodes on the first level? The layout is better if I add a single top level node (called "start" in sample app - you have to uncomment the code), but I don't really want an unnecessary single top node.

Any help would be really appreciated.

Many Thanks

Gary Howlett

As cant post .zip sample files I placed on my OneDrive here http://1drv.ms/1fQ6pYD

1 Answer, 1 is accepted

Sort by
0
Pavel R. Pavlov
Telerik team
answered on 13 Mar 2014, 11:56 AM
Hello Gary,

I can understand your requirements. Unfortunately, with the current implementation of the default tree layout you are not allowed to define more than one root of the tree. In your particular case you need to define two roots.

The only way to achieve the desired layout with the default tree layout is to define a dummy node that will be the only root of your graph.

Regards,
Pavel R. Pavlov
Telerik
