Theme override for a RadPdfViewer

[David]

We have an application wide theme that I need to override. Our application has a black background on everything but within the RadPdfViewer I need it to have a white background so the pdf files are easier to read. How do I override the background color just in this one control?

[Vanya Pavlova]

Hello David,


You could check the following forum thread, where the same topic has been already discussed.
Hope this helps.


Regards,
Vanya Pavlova
Telerik





[David]

This still doesnt seem to fix my issue. I have tried using Blend and it will let me change the colors of the scroll bars but when I click on the area where the document actually shows it doesnt give me a background option. What is happening is because of our theme the color behind the pdf is black and makes it hard to view the document so I need to be able to have a white background just in this one control on this one window. If i break it down to the individual parts, this part is referred to as the "ContentPresenter" I believe but I just cant seem to get it to let me give it a background color.  Any other ideas on how I can get a white background behind my pdf documents?

[Vanya Pavlova]

Hi David,


As described in this forum thread you should declare a style targeted at FixedDocumentPagesPresenter and set the Background from there.

I'm attaching you sample demo that illustrates this approach.


Regards,
Vanya Pavlova
Telerik





[David]

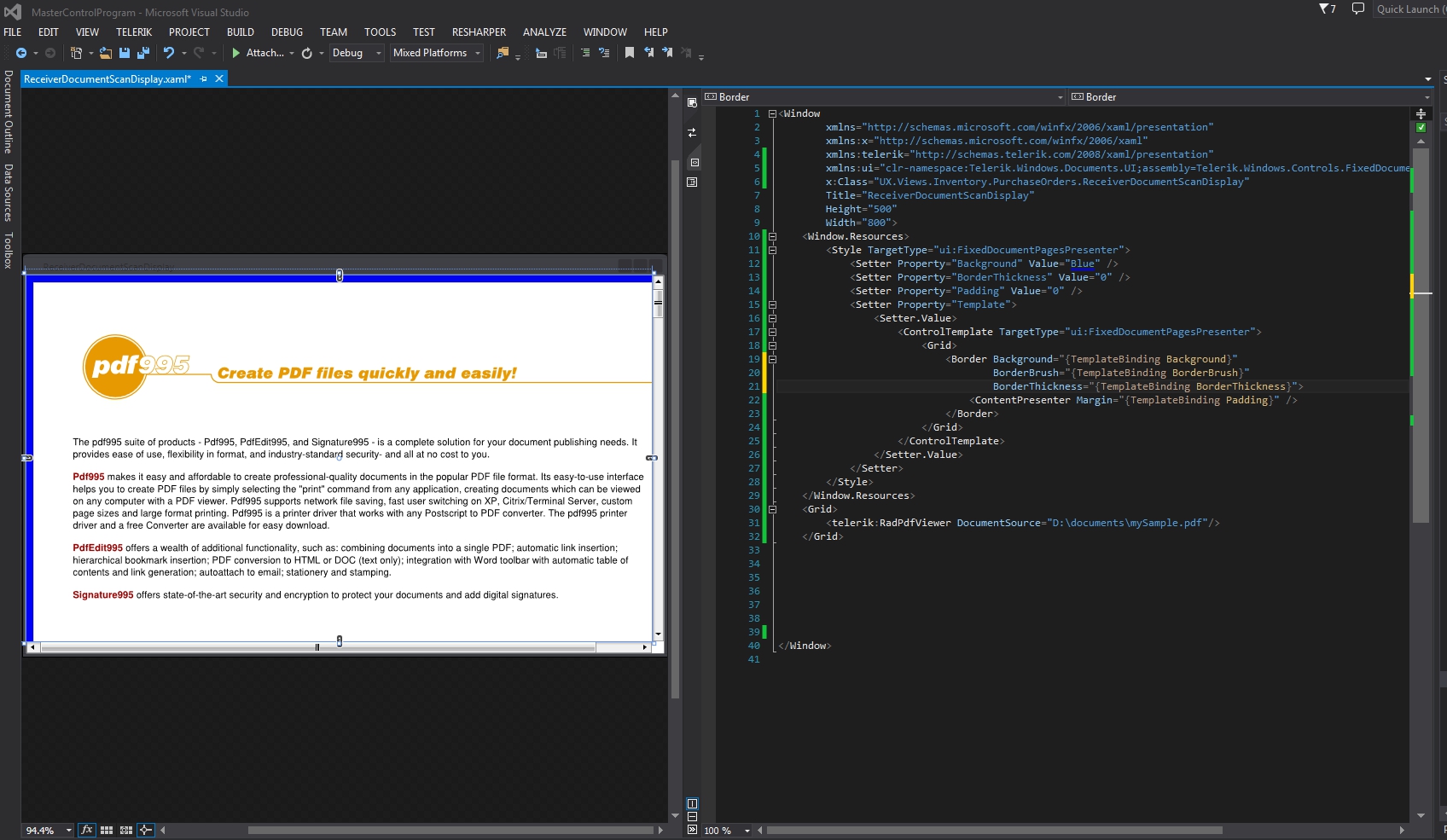

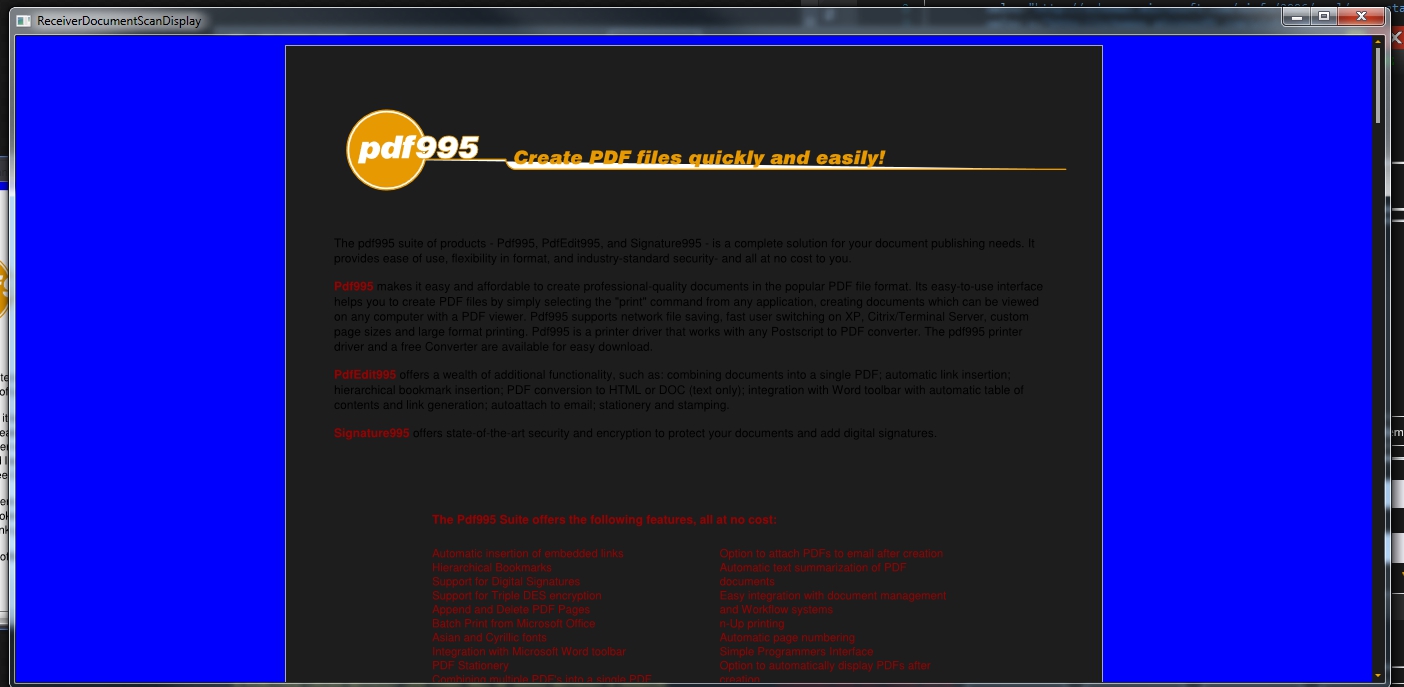

I just tried your code in my program and gave it a DocumentSource of just a local pdf that I have that has a white background and as you can see in the screenshots at runtime our theme overrides the style and puts it back to a black background behind the pdf which doesnt display well. Do you have any other ideas on how to fix this?

[Vanya Pavlova]

Hi David,


The style for RadPdfViewer's background is correctly applied. The dark background of the page might come from a style targeted at a Page.


Can you please check whether you have a defined style similar to the following? :



  xmlns:fixedui="clr-namespace:Telerik.Windows.Documents.Fixed.UI;assembly=Telerik.Windows.Controls.FixedDocumentViewers"

<Style x:Key="PageStyle" TargetType="fixedui:Page">
     <Setter Property="Background" Value="{StaticResource SomeDarkColor}"/>
</Style>

Regards,
Vanya Pavlova
Telerik
