Telerik RichTextBox and RIbbonUI control showing transparent in WPF

0 Answers 8 Views
RibbonView and RibbonWindow RichTextBox
Murad
Top achievements
Rank 1
Murad asked on 01 Apr 2024, 04:17 AM | edited on 01 Apr 2024, 04:20 AM

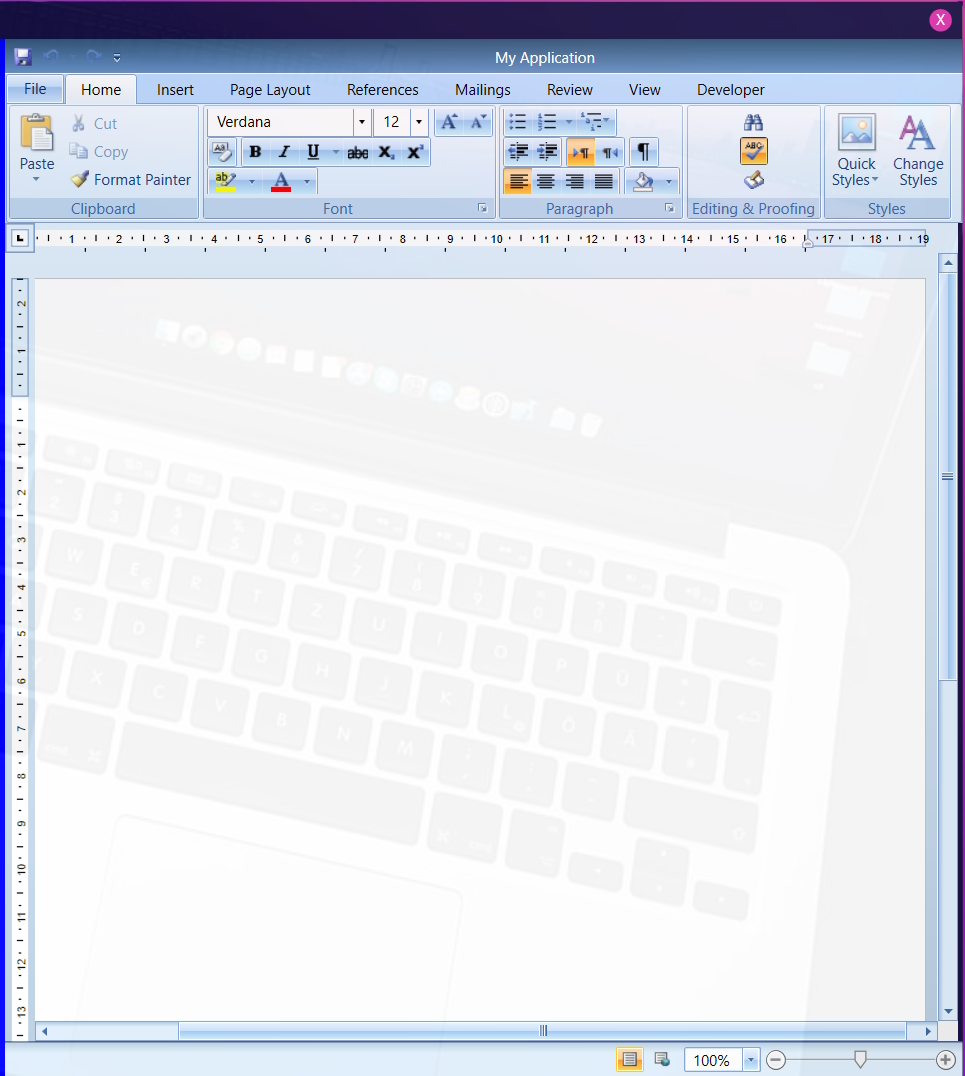

I'am using Telerik RichTextBox (trial) control in my WPF desktop application. When running the app, the control(WordControl) showing as transparent. Suppose the background image (laptop) should not be seen.


**WordControl.xaml**

```
<UserControl x:Class="MyApp.WordControl"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
            xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
            xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
            xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"

             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
                <Grid x:Name="radRichTextBoxParent">
                   <Grid.Resources>

<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<Grid Grid.Row="1">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="*"/>
<ColumnDefinition Width="4"/>
<ColumnDefinition MaxWidth="780" Width="Auto"/>
</Grid.ColumnDefinitions>
<telerik:DocumentRuler>
<telerik:RadRichTextBox x:Name="radRichTextBox"  IsSelectionMiniToolBarEnabled="True" IsSpellCheckingEnabled="True" IsContextMenuEnabled="True" LayoutMode="Paged"/>
</telerik:DocumentRuler>
<GridSplitter Background="{Binding Background, ElementName=TaskPane}" BorderThickness="1 0" Grid.Column="1" HorizontalAlignment="Stretch" Visibility="{Binding Visibility, ElementName=TaskPane}"/>
<telerik:TaskPane x:Name="TaskPane" AssociatedRichTextBox="{Binding ElementName=radRichTextBox}" Grid.Column="2" HorizontalAlignment="Stretch" MinWidth="265" VerticalAlignment="Stretch"/>
</Grid>
                   <telerik:RadRichTextBoxRibbonUI x:Name="ribbon"> ...</telerik:RadRichTextBoxRibbonUI>
                   <telerik:RadRichTextBoxStatusBar />
                </Grid>
</UserControl>
```


**BrowserControl.xaml**

```
<UserControl x:Class="MyApp.BrowserControl"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:MyApp"
             xmlns:wv2="clr-namespace:Microsoft.Web.WebView2.Wpf;assembly=Microsoft.Web.WebView2.Wpf"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">

            <Grid x:Name="MainGrid">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="4*"/>
                    <ColumnDefinition Width="0*"/>
                </Grid.ColumnDefinitions>

                <wv2:WebView2 Name="webView"  Grid.Column="0" Grid.Row="0" Margin="0,0,6,0" />
                <GridSplitter x:Name="MainGridSplit" Visibility="Hidden" HorizontalAlignment="Right" Grid.RowSpan="3" MinWidth="5" MinHeight="5" Background="Blue"/>
               **<local:WordControl x:Name="wordEditor" Grid.Column="1" Grid.Row="0" Margin="0,0,0,0" />**

            </Grid>

</UserControl>
```


**MainWindow.xaml**

```
<Window x:Class="MyApp.MyWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:MyApp"
        xmlns:controls="clr-namespace:MyApp.Controls"
        mc:Ignorable="d"
        ResizeMode="NoResize" WindowStartupLocation="CenterScreen" Loaded="Window_Loaded"
        WindowState="Maximized" WindowStyle="None" Background="#060531"
AllowsTransparency="False" Title="MyWindow" Height="450" Width="800">
    <Border CornerRadius="12">
        <Border.Background>
            <ImageBrush ImageSource="Images/back-image.jpg"
            Stretch="UniformToFill"/>
        </Border.Background>

        <Border CornerRadius="0" BorderThickness="2" Opacity="0.95">

            <Border.BorderBrush>
                <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
                    <GradientStop Color="#462AD8" Offset="0"/>
                    <GradientStop Color="#DA34AE" Offset="0.75"/>
                    <GradientStop Color="#8A16C1" Offset="1"/>
                </LinearGradientBrush>
            </Border.BorderBrush>

            <Border.Background>
                <LinearGradientBrush StartPoint="0,1" EndPoint="1,0">
                    <GradientStop Color="#060531" Offset="0"/>
                    <GradientStop Color="#1B1448" Offset="1"/>
                </LinearGradientBrush>
            </Border.Background>

            <Grid>
               <Grid.RowDefinitions>
                 <RowDefinition Height="30"/>
                 <RowDefinition/>
               </Grid.RowDefinitions>

            **<local:BrowserControl x:Name="browserControl" Grid.Row="1" ></local:BrowserControl>**

            </Grid>

        </Border>

    </Border>
</Window>
```




I am expecting the WordControl should not be transparent.


Stenly
Telerik team
commented on 01 Apr 2024, 03:31 PM

Would it be possible to isolate this behavior in a sample project? This way, I can test it and see what could cause this behavior.
Murad
Top achievements
Rank 1
commented on 01 Apr 2024, 10:39 PM

attached is the sample project for your reference.
Stenly
Telerik team
commented on 02 Apr 2024, 01:35 PM

I have checked the provided sample project and to prevent the transparency, remove the Opacity property set on the inner Border element that is present in the MainWindow.xaml file. The Opacity property has a value of "0.95":

<Window x:Class="TelerikWpfApp6.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:TelerikWpfApp6"
        xmlns:controls="clr-namespace:TelerikWpfApp6"
        mc:Ignorable="d"
        ResizeMode="NoResize"
        WindowStartupLocation="CenterScreen"
        WindowState="Maximized"
        WindowStyle="None"
        Background="#060531"
        AllowsTransparency="False"
        Title="MainWindow" Height="450" Width="800">
    <Border CornerRadius="12">
        <Border.Background>
            <ImageBrush ImageSource="Images/back-image.jpg"
            Stretch="UniformToFill"/>
        </Border.Background>
        <!--Remove the Opacity property-->
        <Border CornerRadius="0"
                BorderThickness="2"
                Opacity="0.95">

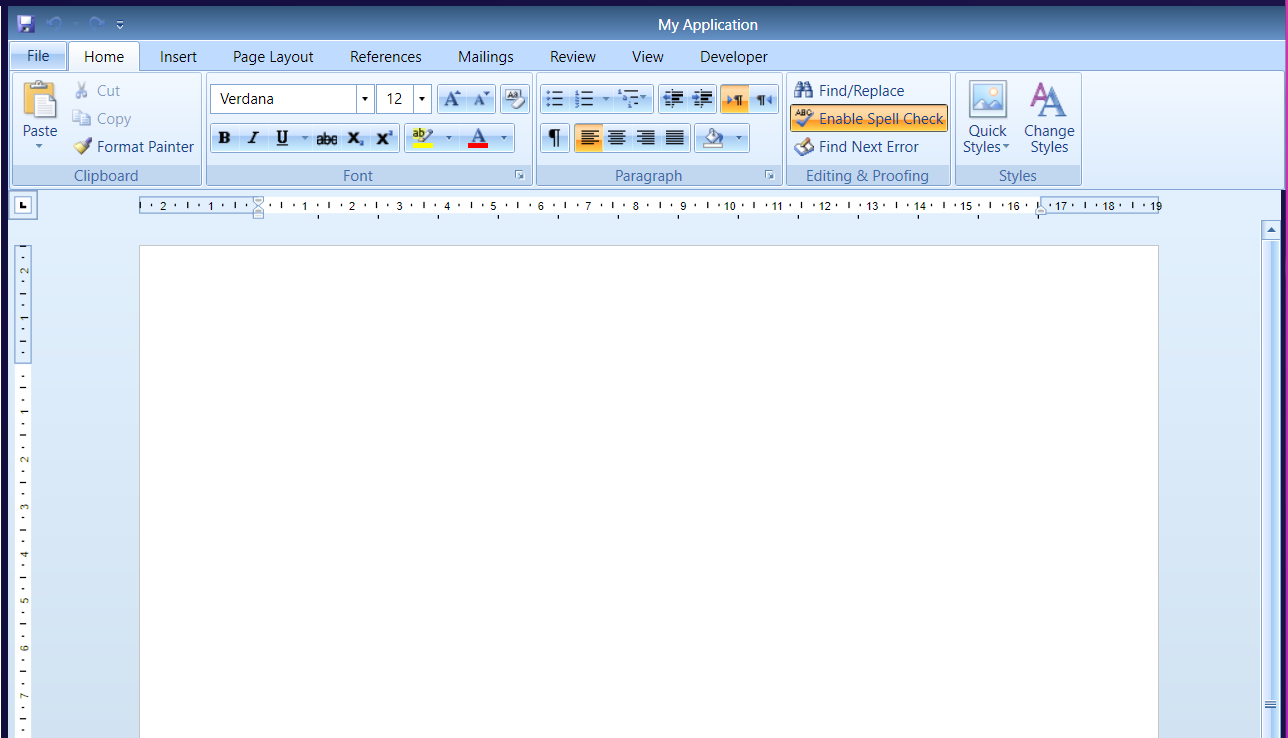

Without it, the following result will be present:

I hope the provided information will be of help to you.

Murad
Top achievements
Rank 1
commented on 02 Apr 2024, 06:27 PM

Thanks. Solved my problem.
