Telerik Reporting Bar Chart Stacked Alignment

1 Answer 131 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Mano
Top achievements
Rank 1
Mano asked on 21 Dec 2016, 07:29 AM
Hello,

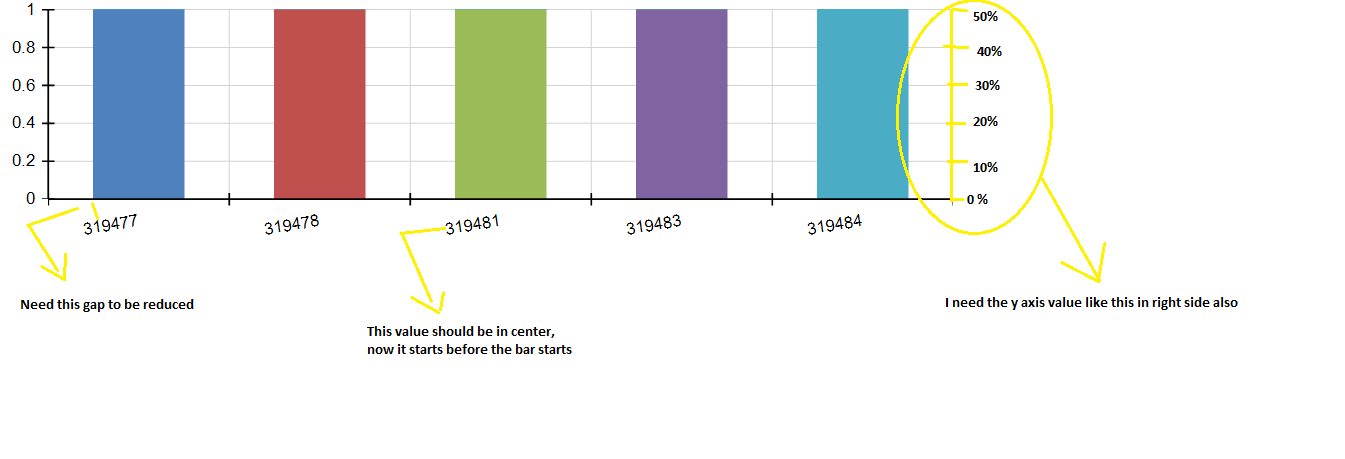

        Am using Telerik Reporting Q3 2016 version, i have attached screen shot for my questions, below are my questions

1) In the X axis, we are showing the value of the bar like 319477,319478 etc.,, I need the gap of value should be reduced
between the x axis line and label value or else it would be in near to the line, Also the value should be in the center of the
bar, now it is showing the value before the bar starts

2) In the Y axis, am showing the value in the left side like 0,0.2,0.4 etc, now at the same time i need to show the value in
right side from 0% to 100% (0%,10%,20%,etc.,)

Thanks & Regards,
     Mano

1 Answer, 1 is accepted

Sort by
0
Stef
Telerik team
answered on 22 Dec 2016, 05:28 PM
Hi Mano,

In regards to your questions:
  1. By default labels are centered, and when you set the axis' LabelAngle, they are rotated with center the middle of the slot. If you reset the LableAngle the labels will be centered. The distance to the bar cannot be adjusted with properties, but you can decide where to place labels through the axis' LabelPlacement. for more details, please check Formatting a Graph: Axis.
  2. Please check How to: Add Secondary Axis. You will have to add series that use the newly added coordinate system in order to have values developed on its Y axis.


Regards,
Stef
Telerik by Progress
