Telerik Pie chart report

7 Answers 235 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
karthick
Top achievements
Rank 1
karthick asked on 10 Jul 2017, 10:24 AM

hi team,

please let me know how to create pie chart in telerik reporting , where on clicking of certain portion it should be in below two pie chart,

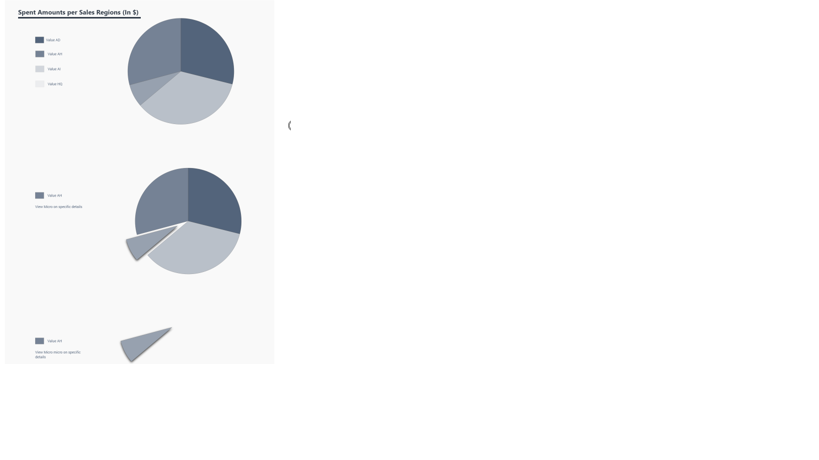

first chart will show highlighted portions displayed separately and in the second chart only that particular piece should show(like cake piece).I have attached the required format .

7 Answers, 1 is accepted

Sort by
0
Stef
Telerik team
answered on 10 Jul 2017, 01:14 PM
Hello karthick,

The feature is not available in the way it is visualized. In general,reports are static documents, where we support interactivity in some formats like navigation to other reports or external URLs, allowing you to display more information about the selected item.

We can suggest you to create a Pie chart by using the Graph item - How to: Create Pie Chart , and to add NavigateToReportAction to the Graph.SeriesGroups.Action. This will let you click on a pie and open another report with more details about it - Drillthrough Report Action.

Please feel free to log a feature request for having an option to "explode"  a pie in a Pie chart generated via Graph item. Features are considered for implementation based on the demand.

Regards,
Stef
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
karthick
Top achievements
Rank 1
answered on 10 Jul 2017, 01:55 PM
hi Stef,



thanks a lot for your quick response , I will check the option provided by you and let you know as soon as possible.

0
karthick
Top achievements
Rank 1
answered on 11 Jul 2017, 06:37 AM

hi Team,



We tried this approach earlier. As part of navigation to a sub report or another report(drill down through action), we have to mention the field value as navigation parameter to detail report. In case of pie chart, It is not possible to get the value of the pie slice, as the action is performed over the whole chart item(not on individual slice of pie).

please help us.

0
Stef
Telerik team
answered on 11 Jul 2017, 07:31 AM
Hi,

If you use a data structure like:
series,values
ser1,10
ser2,20
...
You need to set the action on the Graph.SeriesGroups.Action.

Please check the attached video in IE browser, that illustrates the above suggestion.

Regards,
Stef
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
karthick
Top achievements
Rank 1
answered on 11 Jul 2017, 10:32 AM
hi Stef,

thanks for your responce , i will check and let you know the output.
also we need your guidance for below implementation:

1)waterfall model chart

2)need to view PDF in the report viewer.

0
karthick
Top achievements
Rank 1
answered on 11 Jul 2017, 12:19 PM

hi Team,

we are able to implement based on the solution provide by the team for getting the selected part value from the pie chart. thanks for your support . now we are trying to implement the below two pie chart in the initial attachment. 1) show the selected part separate from the other 2) show only the selected one single piece of cake. if you tell us how to implement that also it will be helpful.



plus we also need you help on the below items.

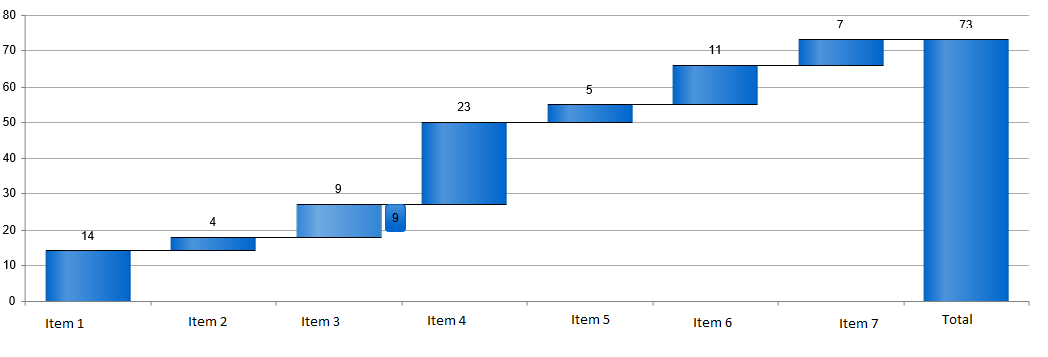

1)waterfall model chart
2)need to view PDF in the report viewer.





0
Stef
Telerik team
answered on 12 Jul 2017, 04:58 PM
Hi karthick,

In regards to your questions:
  1. Show the selected pie separated. The feature is not supported directly. Please add a feature request for having an option to make series "explode".
    a workaround is to use conditional formatting rule for the Series.DataPointConditional.Formatting that sets the line around the pie - use a color matching the background to make the pie look like separated, where the rule can be based on a report parameter.
  2. Use again the Series.DataPointConditionalFormatting to set a transparent or similar to the background color for series. Each series LegendItem includes more ConditionalFormatting objects allowing you to hide legend items as well.
  3. Use a NavigatetoReportAction targeting the same report with updated value of the report parameters controlling the styles of Data Points.

    The attached demo report illustrates such settings. It is a TRDP file that can be previewed in the Standalone Report Deisgner of R2 2017 and newer.

About the rest of your questions, please check my post in your other thread - Telerik Report - water fall model.

Regards,
Stef
Progress Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
