Hello,

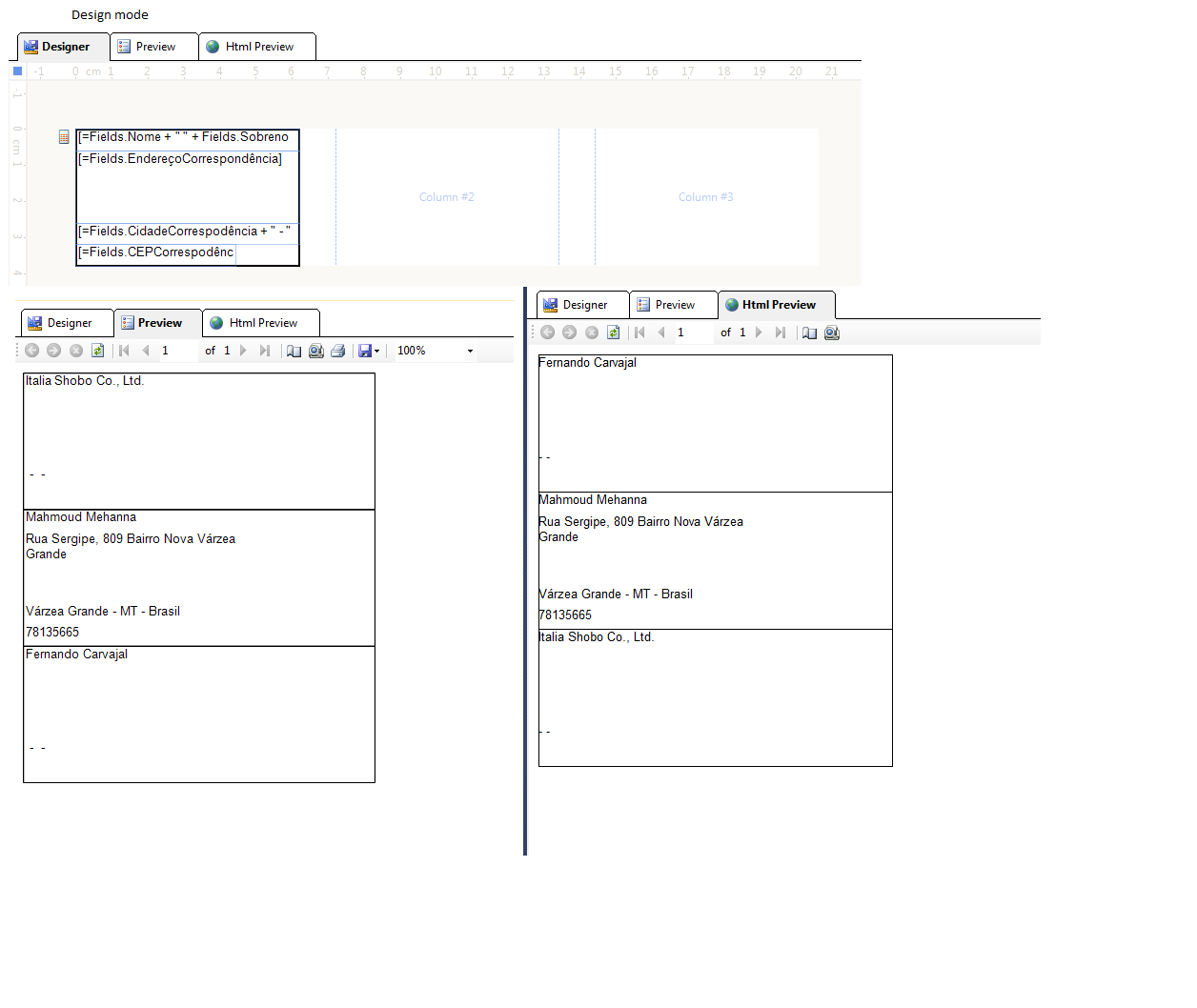

I am tryng to develop a tag report, at design time i see 3 columns of labels connected to database; the first one column to design the template of label and columns 2 and 3 as well.
Whe i switch to preview just one column were rendered, and in the interactive mode three columns are there.
But in none of the cases the three column prints, just one.
Any ideas?
Thanks
Gilberto
I am tryng to develop a tag report, at design time i see 3 columns of labels connected to database; the first one column to design the template of label and columns 2 and 3 as well.
Whe i switch to preview just one column were rendered, and in the interactive mode three columns are there.
But in none of the cases the three column prints, just one.
Any ideas?
Thanks
Gilberto
3 Answers, 1 is accepted
0
Hello Gilberto,
As explained in the Creating Multi-Column Reports help article, column data is rendered down the page and then across, meaning first we populate the column down and then we move to the next column. In your case, all three tags fit in the first column, and that is why a second or third column is never created. If you have more data, then these columns would be created similar to the Product Tags demo report.
Greetings,
Steve
the Telerik team
As explained in the Creating Multi-Column Reports help article, column data is rendered down the page and then across, meaning first we populate the column down and then we move to the next column. In your case, all three tags fit in the first column, and that is why a second or third column is never created. If you have more data, then these columns would be created similar to the Product Tags demo report.
Greetings,
Steve
the Telerik team
NEW in Q1'12: Telerik Report Designer (Beta) for ad-hoc report creation. Download as part of Telerik Reporting Q1 2012. For questions and feedback, use the new Telerik Report Designer Forum.
0
Gilberto
Top achievements
Rank 1
Rank 1
answered on 09 Mar 2012, 02:59 PM
Thanks Steve
The image atached was only to sample, but i,ve tried with several pages and only the first column was rendered, and i also followed the mentioned article and even watch the video. it seems ok and easy but i'm stucked
Gilberto
The image atached was only to sample, but i,ve tried with several pages and only the first column was rendered, and i also followed the mentioned article and even watch the video. it seems ok and easy but i'm stucked
Gilberto
0
Hi Gilberto,
If the report does not render the number of columns set in ColumnCount, it is likely the report width being too large. Check for report items that are greater than the width of the report and the column width itself. Additionally check the width properties of the report itself and the detail section - they should match!
If you're still having problems, please open a support ticket and attach a sample report that exhibits the issue.
Kind regards,
Steve
the Telerik team
If the report does not render the number of columns set in ColumnCount, it is likely the report width being too large. Check for report items that are greater than the width of the report and the column width itself. Additionally check the width properties of the report itself and the detail section - they should match!
If you're still having problems, please open a support ticket and attach a sample report that exhibits the issue.
Kind regards,
Steve
the Telerik team
