zxp asked on 12 Oct 2012, 11:23 AM

Hi,

I am using Telerik report Q1 2012.

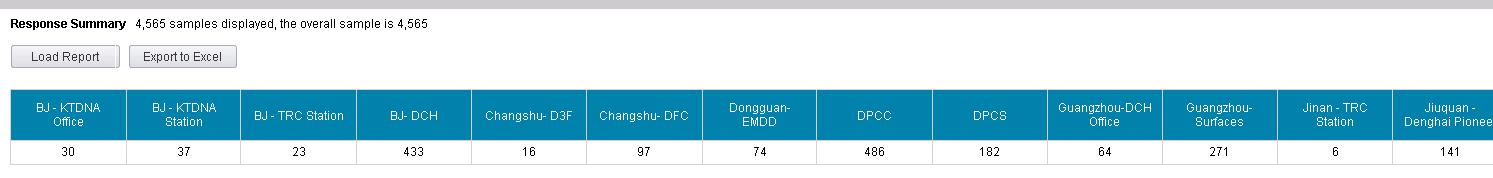

I put a textbox(fields is "dg1_desc") in a tableGroup, which is in a crosstable. As in the attachment file, now there are too many columns are displayed in the same row and i want to separate them in multiple rows. e.g. 4 columns per row. How to achieve that?
Please advice! Thanks a lot!

here is my code:

//
// crosstab1
//
this.crosstab1.Body.Columns.Add(new Telerik.Reporting.TableBodyColumn(Telerik.Reporting.Drawing.Unit.Cm(2.9260406494140625D)));
this.crosstab1.Body.Rows.Add(new Telerik.Reporting.TableBodyRow(Telerik.Reporting.Drawing.Unit.Cm(0.59999996423721313D)));
this.crosstab1.Body.SetCellContent(0, 0, this.textBox25);
tableGroup4.Name = "dg2_desc1";
tableGroup3.ChildGroups.Add(tableGroup4);
tableGroup3.Name = "Group1";
tableGroup3.ReportItem = this.tb_dg1;
tableGroup2.ChildGroups.Add(tableGroup3);
tableGroup2.Name = "Group2";
tableGroup1.ChildGroups.Add(tableGroup2);
tableGroup1.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.dg1_desc")});
tableGroup1.Name = "ColumnGroup";
this.crosstab1.ColumnGroups.Add(tableGroup1);
this.crosstab1.Corner.SetCellContent(0, 1, this.textBox15);
this.crosstab1.Corner.SetCellContent(0, 2, this.textBox16);
this.crosstab1.Corner.SetCellContent(0, 3, this.textBox17);
this.crosstab1.Corner.SetCellContent(0, 4, this.textBox18);
this.crosstab1.Corner.SetCellContent(0, 5, this.textBox19);
this.crosstab1.Corner.SetCellContent(0, 6, this.textBox20);
this.crosstab1.Corner.SetCellContent(0, 7, this.textBox21);
this.crosstab1.Corner.SetCellContent(0, 8, this.textBox22);
this.crosstab1.Corner.SetCellContent(0, 9, this.textBox23);
this.crosstab1.Corner.SetCellContent(0, 10, this.textBox24);
this.crosstab1.Corner.SetCellContent(0, 0, this.lb_RPT_H_51);
this.crosstab1.DataSource = null;
this.crosstab1.Items.AddRange(new Telerik.Reporting.ReportItemBase[] {
this.textBox25,
this.tb_dg1,
this.textBox15,
this.textBox16,
this.textBox17,
this.textBox18,
this.textBox19,
this.textBox20,
this.textBox21,
this.textBox22,
this.textBox23,
this.textBox24,
this.lb_RPT_H_51,
this.textBox3,
this.tb_org1,
this.tb_org2,
this.tb_org3,
this.tb_org4,
this.tb_org5,
this.tb_org6,
this.tb_org7,
this.tb_org8,
this.tb_org9,
this.tb_org10});
this.crosstab1.Location = new Telerik.Reporting.Drawing.PointU(Telerik.Reporting.Drawing.Unit.Cm(0D), Telerik.Reporting.Drawing.Unit.Cm(0D));
this.crosstab1.Name = "crosstab1";
tableGroup15.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org10")});
tableGroup15.Name = "org101";
tableGroup15.ReportItem = this.tb_org10;
tableGroup15.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org10", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup14.ChildGroups.Add(tableGroup15);
tableGroup14.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org9")});
tableGroup14.Name = "org91";
tableGroup14.ReportItem = this.tb_org9;
tableGroup14.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org9", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup13.ChildGroups.Add(tableGroup14);
tableGroup13.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org8")});
tableGroup13.Name = "org81";
tableGroup13.ReportItem = this.tb_org8;
tableGroup13.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org8", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup12.ChildGroups.Add(tableGroup13);
tableGroup12.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org7")});
tableGroup12.Name = "org71";
tableGroup12.ReportItem = this.tb_org7;
tableGroup12.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org7", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup11.ChildGroups.Add(tableGroup12);
tableGroup11.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org6")});
tableGroup11.Name = "org61";
tableGroup11.ReportItem = this.tb_org6;
tableGroup11.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org6", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup10.ChildGroups.Add(tableGroup11);
tableGroup10.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org5")});
tableGroup10.Name = "org51";
tableGroup10.ReportItem = this.tb_org5;
tableGroup10.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org5", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup9.ChildGroups.Add(tableGroup10);
tableGroup9.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org4")});
tableGroup9.Name = "org41";
tableGroup9.ReportItem = this.tb_org4;
tableGroup9.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org4", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup8.ChildGroups.Add(tableGroup9);
tableGroup8.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org3")});
tableGroup8.Name = "org31";
tableGroup8.ReportItem = this.tb_org3;
tableGroup8.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org3", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup7.ChildGroups.Add(tableGroup8);
tableGroup7.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org2")});
tableGroup7.Name = "org21";
tableGroup7.ReportItem = this.tb_org2;
tableGroup7.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org2", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup6.ChildGroups.Add(tableGroup7);
tableGroup6.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.org1")});
tableGroup6.Name = "org11";
tableGroup6.ReportItem = this.tb_org1;
tableGroup6.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.org1", Telerik.Reporting.Data.SortDirection.Asc)});
tableGroup5.ChildGroups.Add(tableGroup6);
tableGroup5.Groupings.AddRange(new Telerik.Reporting.Data.Grouping[] {
new Telerik.Reporting.Data.Grouping("=Fields.year_no")});
tableGroup5.Name = "year_no1";
tableGroup5.ReportItem = this.textBox3;
tableGroup5.Sortings.AddRange(new Telerik.Reporting.Data.Sorting[] {
new Telerik.Reporting.Data.Sorting("=Fields.year_no", Telerik.Reporting.Data.SortDirection.Asc)});
this.crosstab1.RowGroups.Add(tableGroup5);
this.crosstab1.Size = new Telerik.Reporting.Drawing.SizeU(Telerik.Reporting.Drawing.Unit.Cm(28.526042938232422D), Telerik.Reporting.Drawing.Unit.Cm(1.2000000476837158D));
this.crosstab1.Style.BorderStyle.Default = Telerik.Reporting.Drawing.BorderType.None;
this.crosstab1.StyleName = "Normal.TableNormal";

//
// tb_dg1
//
this.tb_dg1.Name = "tb_dg1";
this.tb_dg1.Size = new Telerik.Reporting.Drawing.SizeU(Telerik.Reporting.Drawing.Unit.Cm(2.9260413646698D), Telerik.Reporting.Drawing.Unit.Cm(0.60000002384185791D));
this.tb_dg1.Style.BackgroundColor = System.Drawing.Color.FromArgb(((int)(((byte)(0)))), ((int)(((byte)(131)))), ((int)(((byte)(169)))));
this.tb_dg1.Style.BorderColor.Default = System.Drawing.SystemColors.ActiveBorder;
this.tb_dg1.Style.Color = System.Drawing.Color.White;
this.tb_dg1.Style.Font.Name = "Arial";
this.tb_dg1.Style.Font.Size = Telerik.Reporting.Drawing.Unit.Point(9D);
this.tb_dg1.Style.Padding.Bottom = Telerik.Reporting.Drawing.Unit.Cm(0.10000000149011612D);
this.tb_dg1.Style.Padding.Left = Telerik.Reporting.Drawing.Unit.Cm(0.20000000298023224D);
this.tb_dg1.Style.Padding.Right = Telerik.Reporting.Drawing.Unit.Cm(0.20000000298023224D);
this.tb_dg1.Style.Padding.Top = Telerik.Reporting.Drawing.Unit.Cm(0.10000000149011612D);
this.tb_dg1.Style.TextAlign = Telerik.Reporting.Drawing.HorizontalAlign.Center;
this.tb_dg1.Style.VerticalAlign = Telerik.Reporting.Drawing.VerticalAlign.Middle;
this.tb_dg1.StyleName = "Normal.TableGroup";
this.tb_dg1.Value = "=Fields.dg1_desc";
//

3 Answers, 1 is accepted

answered on 15 Oct 2012, 01:38 AM

Accepted

answered on 17 Oct 2012, 11:20 AM

Hi,

The crosstab's run-time layout is defined entirely by the group definitions and data-source. The layout that you have described is not a correct crosstab's layout because you have some aggregated data and for each number you have a header. If you want to display the data on multiple rows, then you must also have headers on each row which is not a valid scenario for a crosstab layout.

A possible solution is to prepare your data manually before feeding it to the crosstab, this way you can divide the data into portions of 4 items. You will have one crosstab for each quadruplet.

Another solution is to rotate the layout of the crosstab so it flows vertically rather then horizontally. You can also combine it with Multi-Column layout of the report.

All the best,
Elian
