Stepped line series in telerik report chart: x-axis value is changing in between 2 data points

1 Answer 16 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Pardeep
Top achievements
Rank 1
Pardeep asked on 16 Mar 2017, 12:25 PM

Hello Telerik Team,

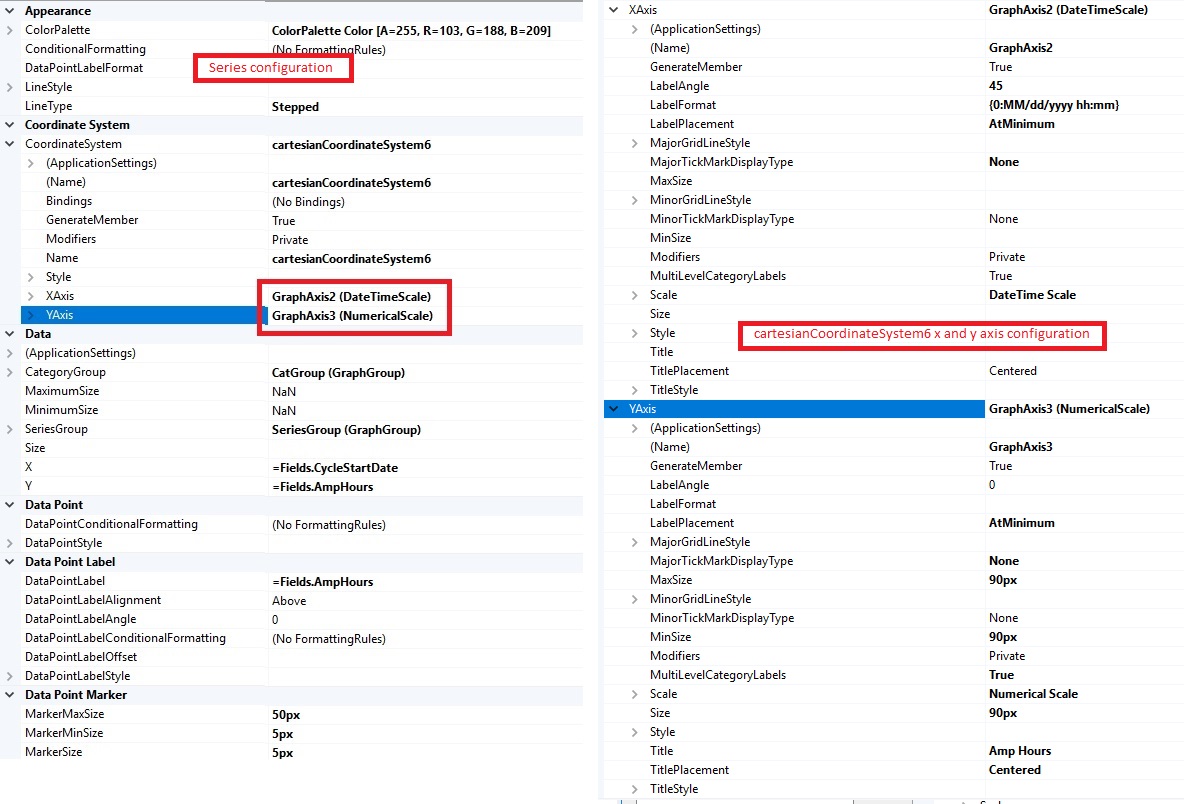

I have plotted a stepped line series graph in telerik report, everything is working fine, but facing problem when y-axis value (rising value) changes between one or more x-axis step(image1.jpg, image2.jpg, image3.jpg screenshots are attached).

Thanks!

1 Answer, 1 is accepted

Sort by
0
Katia
Telerik team
answered on 20 Mar 2017, 03:50 PM
Hi Pardeep,

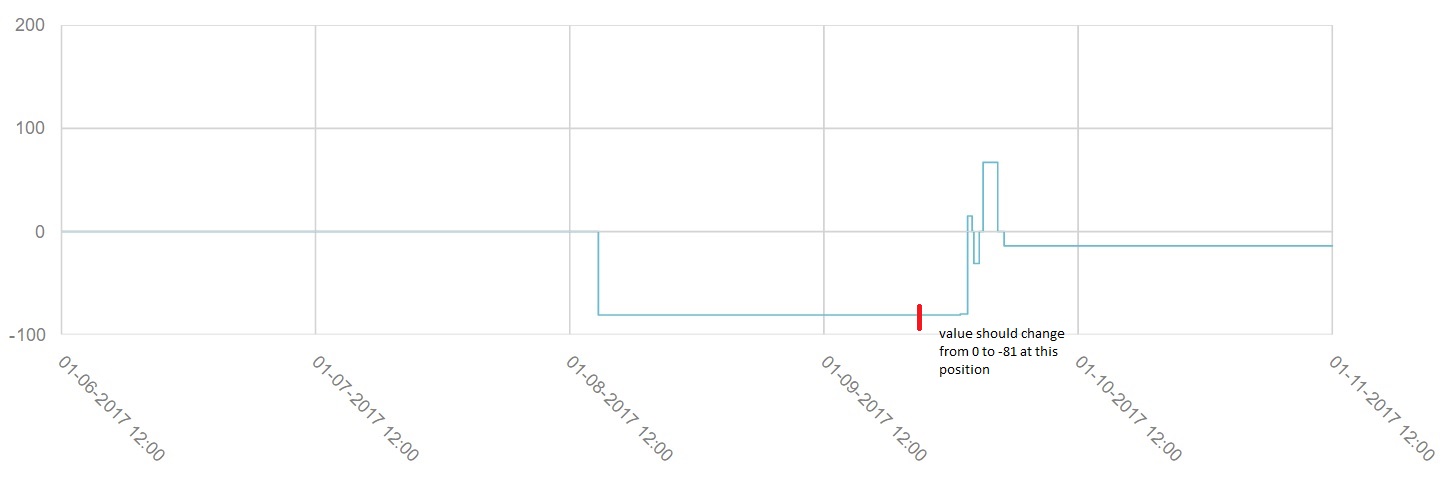

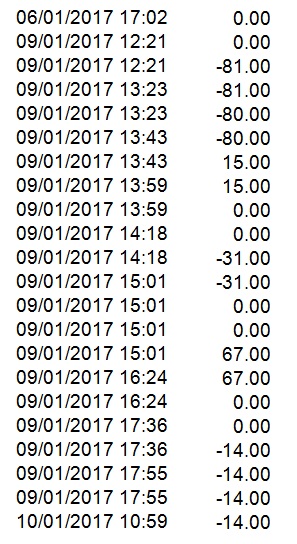

Based on the attached screenshot 2, it seems that you have two values for 09/01/2017 12:21 category: those are "0" and "-81". Thus, the data point will be the sum of those values (-81) as correctly displayed by the Graph item - screenshot 1.

To have to distinct data points (0 and -81) the time should include values for seconds as well, for example:
09/01/2017 12:21:00, 0
09/01/2017 12:21:01, -81


Regards,
Katia
Telerik by Progress
