Stacked Report is not generating

8 posts, 1 answers
  1. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 05 Nov 2014 Link to this post

    Hi,

    I am trying create Stacked Chart based on the demo example
    from this url:
    http://demos.telerik.com/aspnet-mvc/bar-charts/stacked-bar

    But
    the Stacked chart is not displaying any bar when the Data source is set.
    I am able to get the Stacked Report using Report Designer from the same
    Data source but not in Kendo Charts.

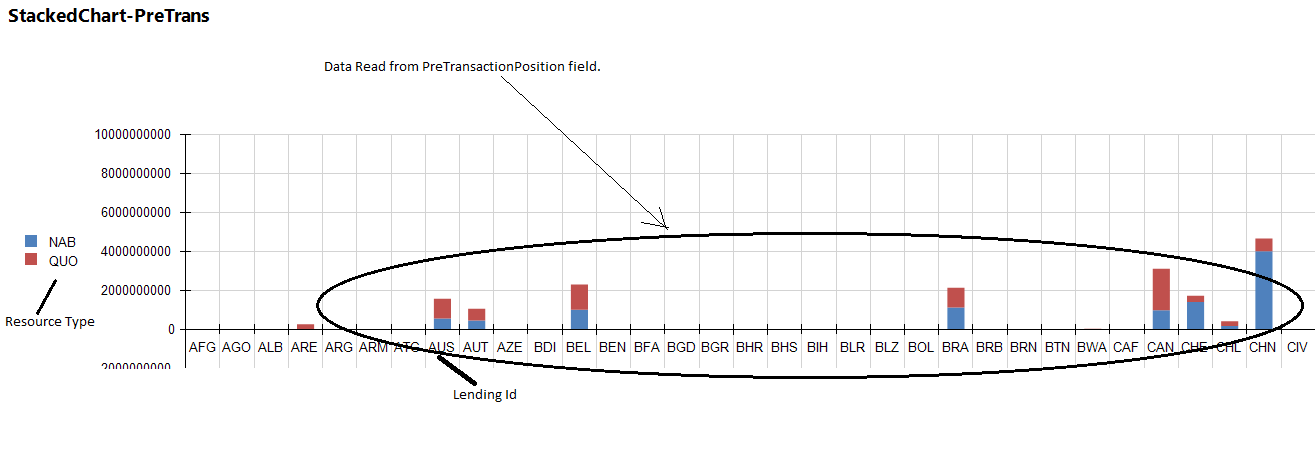

    Here I have attacked the
    Image of the my chart, sample data source in excel for your reference
    and using below code to generate the report.

    ----- Code --

        @(Html.Kendo().Chart<IMF.CurrencyAssignmentSystem.Models.ReceiptAllocationDetails>()
            .Name("chart")
            .Title("Pre Transaction Position")
            .Legend(legend => legend
                .Position(ChartLegendPosition.Bottom)
            )
            .DataSource(ds => ds
                    .Read(read => read.Action("GetChartDetails", "ReceiptAllocation"))
                    .Group(group => group.Add(model => model.ResourceType))
            )
            .SeriesDefaults(seriesDefaults =>
                seriesDefaults.Bar().Stack(true)
                        .Field("PreTransactionPosition")
            )

            .Series(series =>
            {
                series.Column(model => model.PreTransactionPosition).Stack("N").GroupNameTemplate("PreTransaction");
            })
            .CategoryAxis(axis => axis
                .Categories(model => model.LenderId)
                .MajorGridLines(lines => lines.Visible(false))
            )
            .ValueAxis(axis => axis
                .Numeric()
                .Labels(labels => labels.Format("{0}"))
                .Line(line => line.Visible(false))
                .MajorGridLines(lines => lines.Visible(true))

            )

            .Tooltip(tooltip => tooltip
                .Visible(true)
            )
        )

    --------

    Here
    I am trying to group it on the ResourceType field to get the Bars,
    Lender Id on Axis and the value should be taken to create Stack Bar is
    PreTransactionPosition.

    I have tried doing several changes for the moving the fields in different places but could not get the chart.

    Request you to look at these and give your suggestions.

    Regards!


  2. Iliana Nikolova
    Admin
    Iliana Nikolova avatar
    2622 posts

    Posted 07 Nov 2014 Link to this post

    Hi Venkat,

    I don't believe the reason for the illustrated issue is in the provided chart configuration - I tested it on my side and the chart is rendered as expected. Could you please make sure the "PreTransactionPosition" field is not string. In case the type is correct but the issue still persists I will need an isolated runnable example which I can debug locally - this way I would be able to advice you further and provide concrete recommendations.

    On a side note, GroupNameTemplate is obsolete - specify the group name template as 'series.name'.

    Regards,
    Iliana Nikolova
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  3. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 07 Nov 2014 Link to this post

    Hi Iliana,

    Thanks for your reply.

    Yes, the 'PreTransactionPosition' field is Decimal column and still the issue exists.

    As you have mentioned to send a runnable example, here I have attached my code zip. You can access the link is:

    /ReceiptAllocation/DisplayChart

    For you convenience I have set the Json data and which has been used in the ReceiptAllocation controller under DisplayChart method.

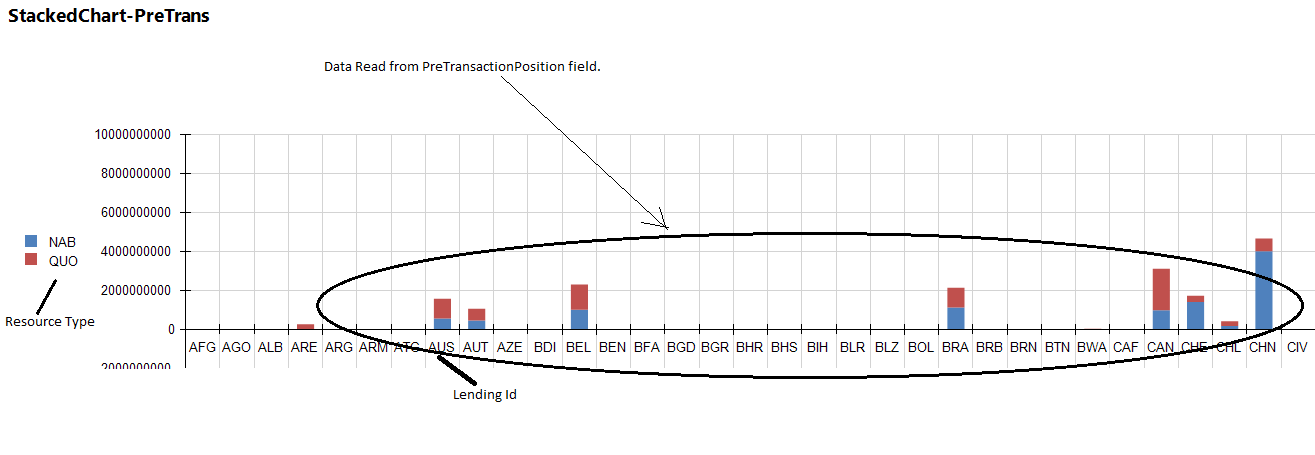

    Before working on Stacked Report on Kendo UI, I have generated the Stacked Chart by using Report Designer with same data and query. I have attached a screen shot of the same for your reference.

    So, I am trying to create a report in same way in Kendo.

    I request you to check the these give your valuable suggestions as soon as earliest.

    Regards!
  4. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 07 Nov 2014 Link to this post

    Hi Iliana,

    I am Sorry, I had forgot the Model Class file to attach in the earlier zip file. Can you please take this version of the zip and check?


    Regards!

  5. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 10 Nov 2014 Link to this post

    Hi,

    We have very urgent requirements to develop 7-8 charts and this has become door stopper! :(

    So, some one please check my attached files and can you give your valuable suggestions to resolve this issue?

    Regards!
  6. Answer
    T. Tsonev
    Admin
    T. Tsonev avatar
    2817 posts

    Posted 11 Nov 2014 Link to this post

    Hi,

    Thank you for sending the relevant project files.

    From what I can see the controller is returning a JSON document wrapped as a Json() response.
    This is not valid as the JsonHelper expects collection of model objects. It will handle the serialization internally.

    The action should look more like:
    [HttpPost]
    public ActionResult GetChartDetails()
    {
       ReceiptAllocationDAO receiptAllocationDao = new ReceiptAllocationDAO();
       var chartDetails = receiptAllocationDao.GetReceiptAllocationList();

       return Json(chartDetails);
    }



    I see that the chart is bound to the model fields, but their serialized names are overridden:
    [JsonProperty("V_RESOURCE_TYPE")]
    public string ResourceType { get; set; }

    The JsonProperty attributes should be removed otherwise the binding fields won't match.
    I hope this helps.

    Regards,
    T. Tsonev
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  7. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 11 Nov 2014 in reply to T. Tsonev Link to this post

    Hi T. Tsonev,

    Thanks for reply.

    With respect to the Json value, which I have mentioned in Controller was for your reference to look at the data. The method which I calling to get the Details that will return the data like was is send to you.

    With respect to the Json Attribute:

    Right now we are getting the query result as Json value from Oracle DB. That is returning the column or Json Property name as: V_RESOURCE_TYPE, V_LENDER_ID and so on. To maintain the Proper Naming convention for Class Properties we have it as "ResourceType, LenderId and so on. When we Serialize this Json data to Class Object needs to be mapped. So, we have used Json Attribute to each class property.

    But still will try with your suggestion and check. Will let you know the details soon.

    Regards!
  8. Venkat
    Venkat  avatar
    37 posts
    Member since:
    Aug 2014

    Posted 11 Nov 2014 Link to this post

    Hi T. Tsonev,

    I would like to tell you that I am able to get the Stacked Chart now. I just changed the return value from Json String to IList<T> and it made the trick!!!

    And more thing is we no need to remove the Json Attribute from the Model Class, even with the Json Propery the chart is able to render it.

    Thank you very much for your help and mark your reply to Answered!!

    Regards!
