Joel asked on 09 Apr 2018, 03:01 PM

From other forum posts it seems we cannot add multiple detail sections.  I am wondering how to accomplish the following task. (pictures attached)

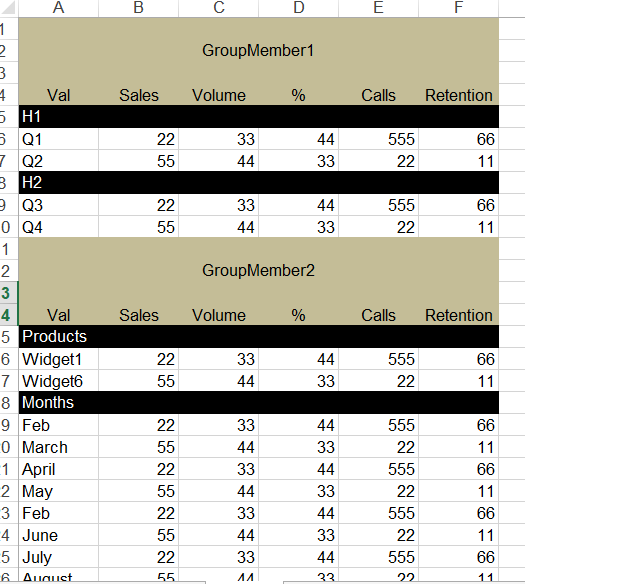

Dataset is preformatted, and can't easily change.  Currently, the section headers are just treated as inline text in column 1, and background color for all cells is changed to black based off of a formatting field provided in the data.  This works great (Existing.PNG).

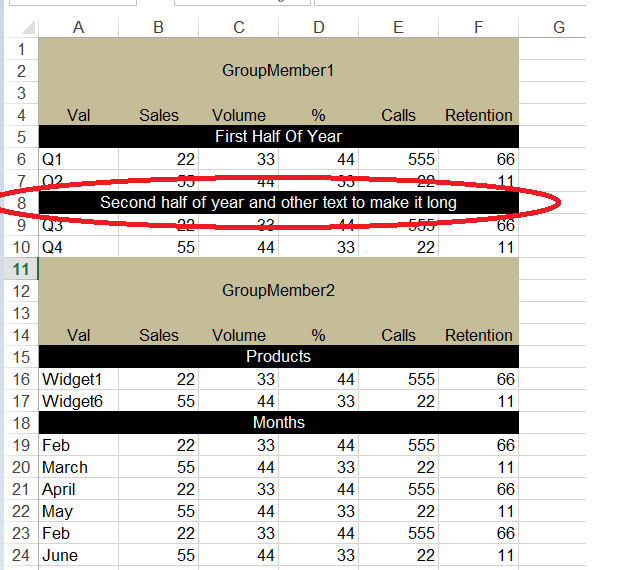

I received a request that they want to extend the text beyond the width of column 1 and center it. (Proposed.PNG)

Ideally, if I could have a second detail section, I could have a formatted textbox that spans the columns, and another detail section with the spreadsheet type cells.  I would then use conditional formatting to hide visibility.



Short of being able to have a second detail section, how could I perform this task with Telerik Reporting?











1 Answer, 1 is accepted

Sort by
0
Joel
Top achievements
Rank 2
answered on 09 Apr 2018, 06:14 PM
I figured this out.  The detail section wasn't set to can shrink.  Using conditional formatting on 2 panels within detailsection works for what I need.
