Silverlight Viewer not showing graphs

4 Answers 63 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Calin Calin
Top achievements
Rank 1
Calin Calin asked on 03 Sep 2010, 05:05 AM
HI,

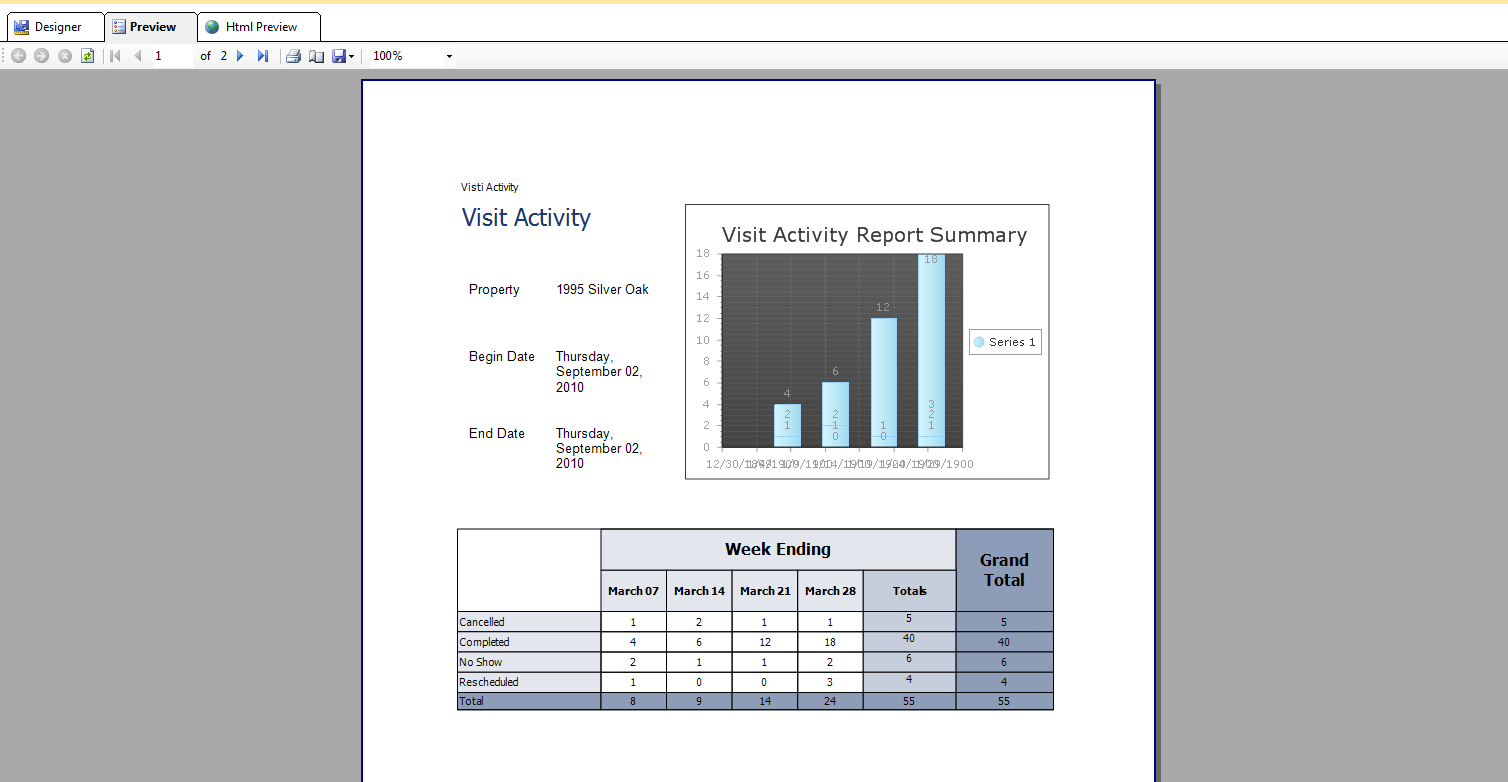

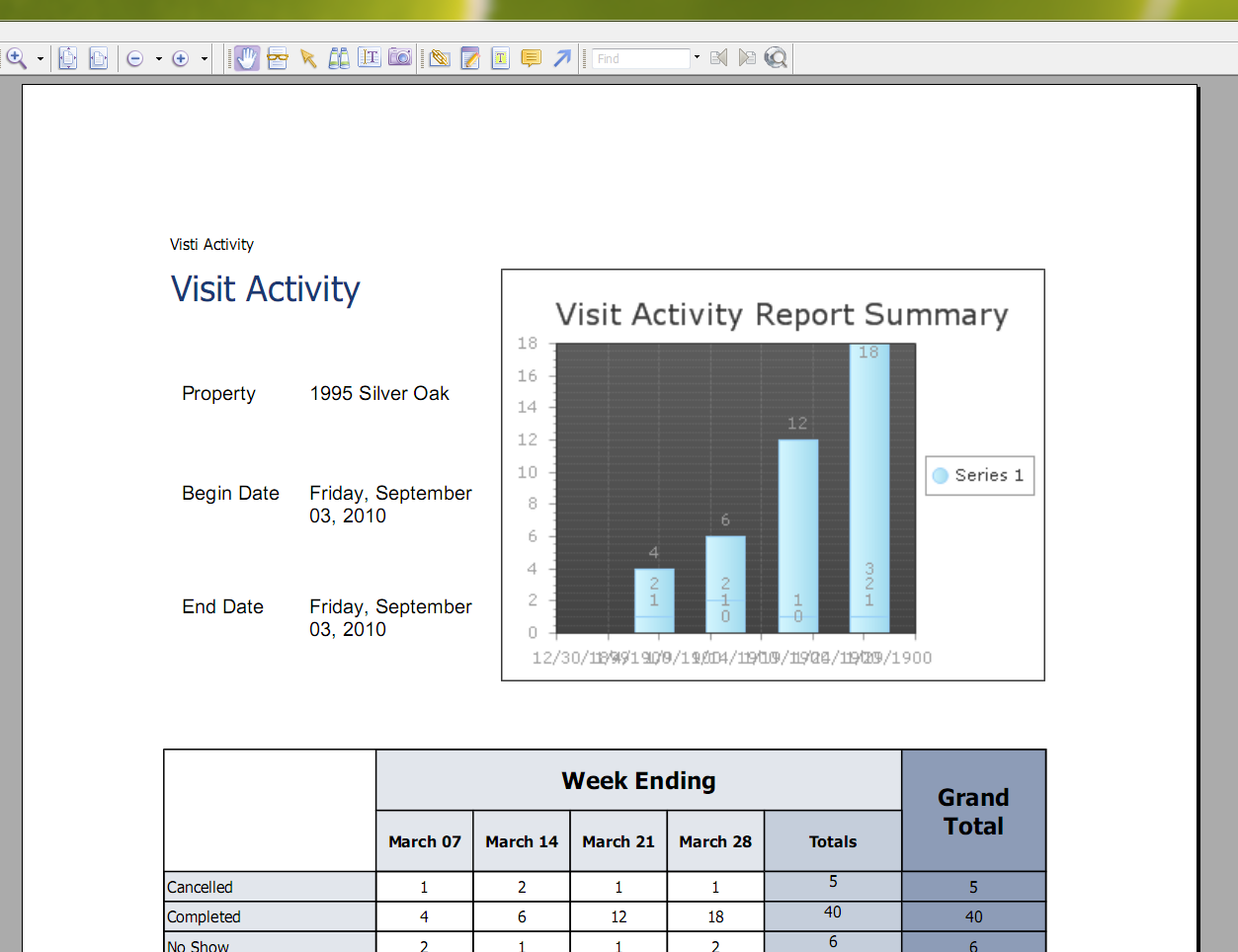

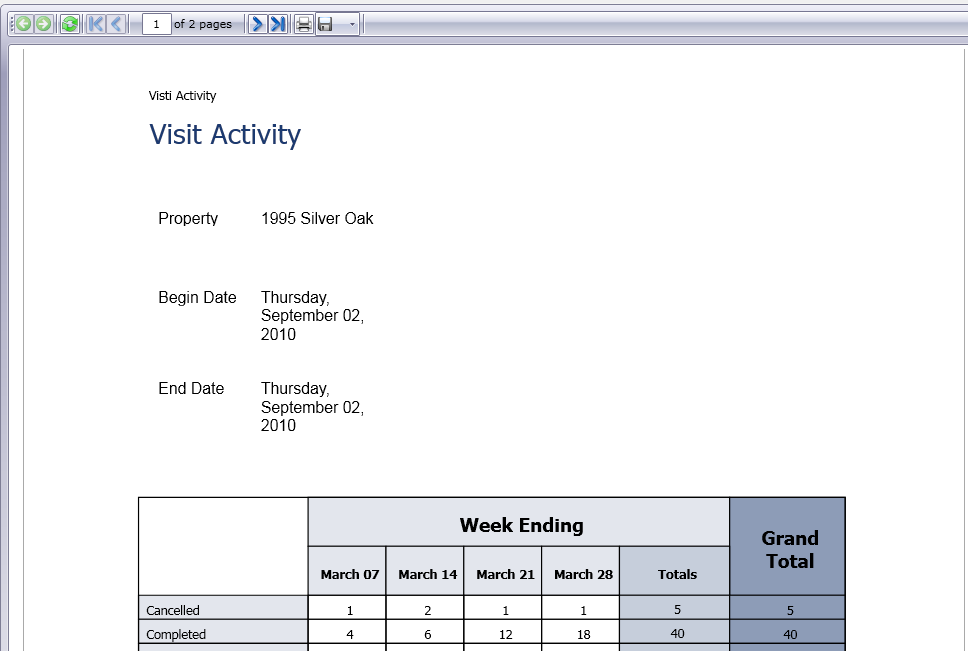

I am having this strange problem with the silvelight report viewer. I've created a report with an graph on the header part, you can see the designer preview in the attached image (designer_preview.png). When I open it up on the viewer it does not show the graph (view.png). Noe the weird part is that if I go and export the file into pdf the graph shows again (export.png).

Any ideeas ?

Thank you,

4 Answers, 1 is accepted

Sort by
0
Accepted
Steve
Telerik team
answered on 03 Sep 2010, 05:15 PM
Hello Calin,

Most likely the problem is that you're missing the resources endpoint and charts are streamed through the resources as they are images. For more information on setting up the Telerik Reporting service, please refer to the Hosting WCF Service in IIS help article.
Of course this could be caused by how you bind the chart and whether it is initially hidden, but we can only guess without a sample project we could run on our end.

Kind regards,
Steve
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
Calin Calin
Top achievements
Rank 1
answered on 03 Sep 2010, 08:47 PM
Thanks,

It was the configuration I was missing.
0
Joshua
Top achievements
Rank 1
answered on 11 Mar 2013, 07:38 PM
Hi,

  We have the same issue and we have also set up the end point for "resources" correct but still not able to see images,graphs in browser.
We had created a seperate WCF service and followed all the steps mentioned by you to create the WCF service. Service works totally fine but we got stuck at images and graphs issues.

BTW:We do see all those images when we export into PDF etc...

Thanks,
Josh
0
Joshua
Top achievements
Rank 1
answered on 12 Mar 2013, 07:57 PM
Hey,

 Never mind we solved it.

Thanks.
Josh.
