SelfReference Hierarchy Problem With Dynamic Columns

[Kiran]

Hi

I am implementing self reference hierarchy and i have used the code below which works fine for default columns.

<telerik:RadGridView x:Name="RadGridView1"
     DataLoading="RadGridView1_DataLoading" RowLoaded="RadGridView1_RowLoaded" GridLinesVisibility="Horizontal"
    CanUserFreezeColumns="False" IsReadOnly="True" AutoGenerateColumns="False" Margin="10">
    <telerik:RadGridView.Columns>
        <telerik:GridViewDataColumn  DataMemberBinding="{Binding TaskId}" />

        <telerik:GridViewDataColumn Header="Task Name" DataMemberBinding="{Binding TaskName}" />
        <telerik:GridViewDataColumn Header="Read">
            <telerik:GridViewColumn.CellTemplate>
                <DataTemplate>
                    <CheckBox x:Name="checkBoxRead" IsChecked="{Binding Read}" />
                </DataTemplate>
            </telerik:GridViewColumn.CellTemplate>
        </telerik:GridViewDataColumn>
        <telerik:GridViewDataColumn Header="Write">
            <telerik:GridViewColumn.CellTemplate>
                <DataTemplate>
                    <CheckBox x:Name="checkBoxWrite" IsChecked="{Binding Write}" />
                </DataTemplate>
            </telerik:GridViewColumn.CellTemplate>
        </telerik:GridViewDataColumn>
    </telerik:RadGridView.Columns>
    <telerik:RadGridView.FilterDescriptors>
        <telerik:FilterDescriptor Member="ParentTaskId" Operator="IsEqualTo"  Value="0"/>
    </telerik:RadGridView.FilterDescriptors>
    <telerik:RadGridView.ChildTableDefinitions>
        <telerik:GridViewTableDefinition>
            <telerik:GridViewTableDefinition.Relation >
                <telerik:TableRelation IsSelfReference="True"     >
                    <telerik:TableRelation.FieldNames>
                        <telerik:FieldDescriptorNamePair
                            ParentFieldDescriptorName="TaskId"
                            ChildFieldDescriptorName="ParentTaskId" />
                    </telerik:TableRelation.FieldNames>
                </telerik:TableRelation>
            </telerik:GridViewTableDefinition.Relation>
        </telerik:GridViewTableDefinition>
    </telerik:RadGridView.ChildTableDefinitions>

</telerik:RadGridView>

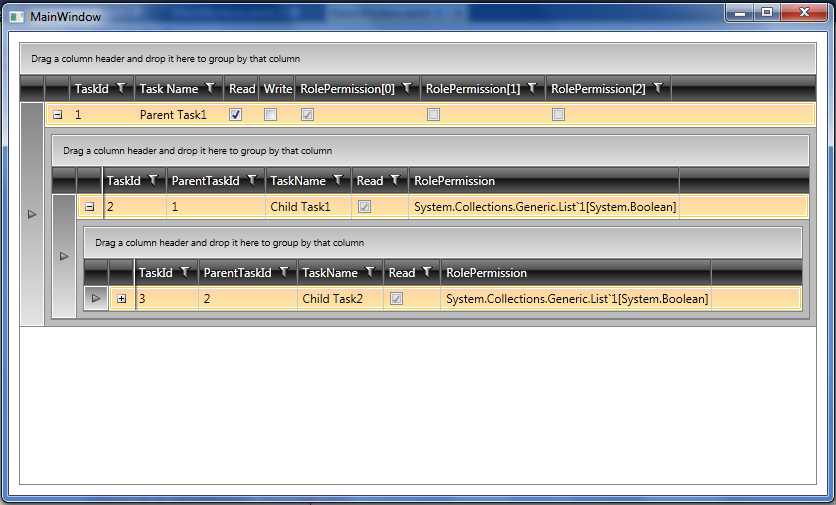

I have a problem when I add dynamic columns columns are showing at rool level but does not get added at child node level. If you notice in the screenshot RolePermissions[0], RolePermissions[1], RolePermissions[2] are dynamic columns. I have attached the screenshot. Is there a simple way to fix it please suggest.

Regards
Kiran

[Vlad]

Hi,

 Can you post more info how exactly these columns are added?

Regards,
Vlad
the Telerik team

[Kiran]

Hi

I am adding columns using this code.

GridViewDataColumn tempDataColumn = new GridViewDataColumn();

            // Determines the maximum number of months that any employee has worked.
            int maxNumberOfMonths = Tasks.Max((x) => x.RolePermission.Count);
            for (int i = 0; i < maxNumberOfMonths; i++)
            {

                tempDataColumn = new GridViewDataColumn()
                {
                    UniqueName = "Read" + (i + 1)
                    ,
                    DataMemberBinding = new Binding("RolePermission[" + i + "]") { Mode = BindingMode.TwoWay }
                    ,
                    DataType = typeof(bool)
                };

                tempDataColumn.IsReadOnly = false;

                this.RadGridView1.Columns.Add(tempDataColumn);
            }

Regards
Kiran

[Vlad]

Hello,

 This will add columns only for the parent grid - not for child grids. You can use DataLoading if you want to add columns for both parent and child grids.

Best wishes,
Vlad
the Telerik team

[Kiran]

Hi

I was only using on grid and did not use any child grids. How do i access child grid object during that event. Can you post some sample code or related solution?

Regards
Kiran

[Vlad]

Hello,

 Have you checked the code in this demo?

All the best,
Vlad
the Telerik team

[Kiran]

Hi

This demo helped thought i had tweak slighly to support multi level hierarchies.

Thanks
Kiran
