ScheduleView & GridView row height synchronization

2 posts, 0 answers
  1. Denis
    Denis avatar
    2 posts
    Member since:
    Aug 2015

    Posted 09 Feb 2016 Link to this post


    I'm making an application which represents data in a GridView and ScheduleView at the same time.

    Now I'm looking for a way to bind GridView's rows heights to a ScheduleView row heights to synchronize both components grid lines while scrolling (I have implemented gridview scrolling with scheduleview scrollbar and that was pretty easy).

    Sure, I can hardcode GroupHeader height with group header content template selector, but it won't work for a case when few appointments stretches a group.

    So, basically I have to get current row heights from ScheduleView, how can I get them even from code-behind?

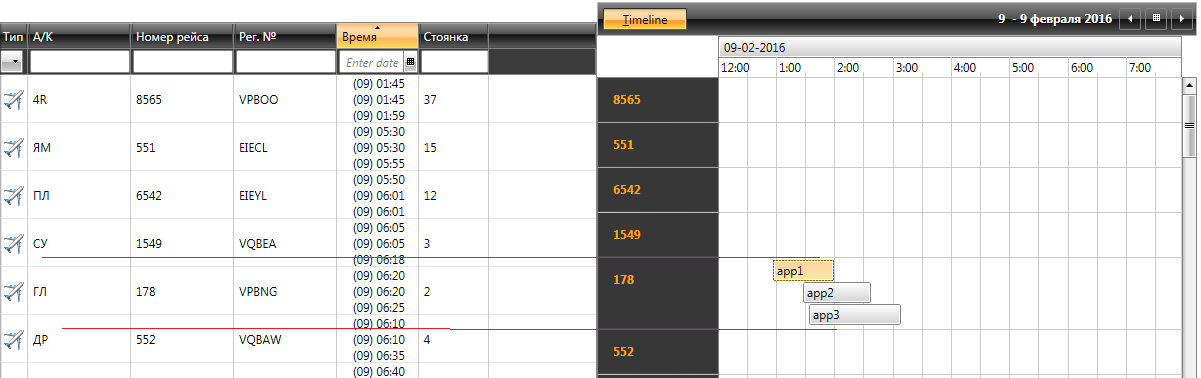

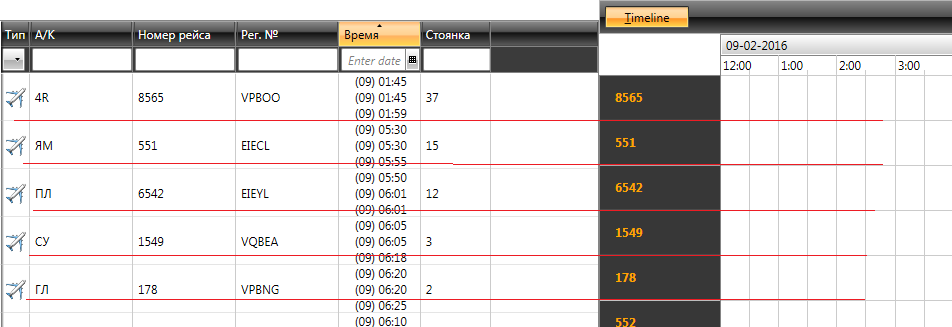

    Twi pics in the attachment.


    Many thanks,



  2. Yana
    Yana avatar
    4603 posts

    Posted 11 Feb 2016 Link to this post

    Hello Dennis,

    RadScheduleView does not provide a way to get the height of the GroupHeaders as it's calculated in the internal code of the control.

    The only way that comes to my mind is to navigate the visual tree and search for elements of type GroupHeader, then you can check their ActualHeight property.
