Scheduler resource cell customization

[Matúš]

Hello,

I would like to ask if it is possible to customize reasource cell in Timeline view in Scheduler control. I would like to show user specific icon and multiline text,

I found similar question from 2020 (https://www.telerik.com/forums/scheduler-customization-questions), did you already implement such a  functionality?

Thanks

Matus

[Wissam]

Hello, Matúš,

Thank you for the provided screenshot.

I understand that you want to customize the group header cell. Is this correct? If this is the case, you can set the `text` of the resource item to HTML elements and render multiline text or an icon depending on what you need. Moreover, to customize the group header cell's CSS styles, you can set a className to HTML content, get the reference in a `React.useEffect`, and add a custom class to its parent which is the header cell:

• https://stackblitz.com/edit/react-rvmcst-qureqr?file=index.html,app%2Fmain.jsx

In addition, we have a feature request to implement this feature but it is currently in an unplanned stage. I added a vote on your behalf to increase its priority, you can track it here:

• https://feedback.telerik.com/kendo-react-ui/1450607-need-resource-group-header-cell-rendering-customization-in-kendo-scheduler

I hope this helps, but please let me know if you have any further questions.

Regards,
Wissam
Progress Telerik

[Wissam]

Hi, Matúš,

Yes, it is possible as this feature was added in version `4.2.0`.

Basically, you can provide a custom Form Editor and render the desired content of your choice:

• https://www.telerik.com/kendo-react-ui/components/scheduler/customization/form/editor/#toc-provide-custom-editor

Please check let above example, and let me know if you have any further questions.

For more information on customizing the Scheduler Form and Editor, you can check the following articles:

• https://www.telerik.com/kendo-react-ui/components/scheduler/customization/form/overview/
• https://www.telerik.com/kendo-react-ui/components/scheduler/customization/form/editor/

Regards,
Wissam
Progress Telerik

[Matúš]

Hi Wissam,

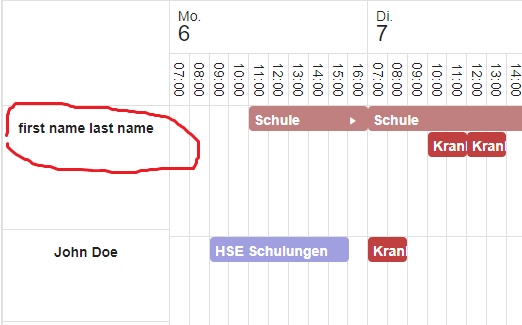

thanks for answer, but probably my question was not clear. I know that it is possible to change editors in form, but I would like to customize resource cell in the scheduler timeline view (see attached image). Is this possible to add an icon or set multiline text?

Regards,

Matus

[Matúš]

Hi Wissam,
thank you for your answer, I was able to customize group header cell according your example.

Regards,
Matus

[Wissam]

You are welcome, Matúš! I am glad that my reply was helpful to you.
