Retrieving RawData from Report

[P.]

I would like to dump the raw data that is used to create a report to Excel.
My intent is to be able to dump the raw data that feeds a report, be it a top level report, or a drill - through report (a report called by another report).  How can I retrieve the raw data that feeds the currently viewed report?

Telerik Reporting 2011 Q1 5.0.11.603
VS 2008 using WebForms
All reports datasources are SQLDatasource Stored Procedures with the report parameters fed from the application to the report object

The following is the method I am currently using for the top level report only.

Protected Sub btnDumpToExcel_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnDumpToExcel.Click

    Dim RunRpt As String = Me.ReportViewer1.Report.Reports(0).Name



    Dim tb As New DataTable(RunRpt)

    Dim dataConn As New SqlConnection



    Select Case RunRpt

        Case "evRptBehaviorChange"

            Dim report1 As Snap_EvalReports.evRptBehaviorChange = ReportViewer1.Report.Reports(0)


            With report1

                Dim xSQLDatasource As Telerik.Reporting.SqlDataSource = .DataSource

                Dim SQLConnectionString As String = System.Configuration.ConfigurationManager.ConnectionStrings(xSQLDatasource.ConnectionString).ToString



                Dim xSelectCommand As String = xSQLDatasource.SelectCommand



                dataConn.ConnectionString = SQLConnectionString

                dataConn.Open()

                Dim sdc As SqlCommand = New SqlCommand(xSelectCommand, dataConn)

                sdc.CommandTimeout = LengthOfTimeOut

                sdc.CommandType = CommandType.StoredProcedure   'xSQLDatasource.SelectCommandType



                For Each p As Telerik.Reporting.SqlDataSourceParameter In xSQLDatasource.Parameters



                    Dim xParam As SqlParameter = New SqlParameter(p.Name, p.GetType)

                    sdc.Parameters.Add(xParam)

                Next



                '                       ALTER   PROCEDURE [dbo].[StoredProcedure1]

                '(@FiscalYearID      int=3)

                sdc.Parameters.Item("@FiscalYearID").Value = CType(Session("spaFiscalYear"), Integer)

                Dim sda As SqlDataAdapter

                sda = New SqlDataAdapter(sdc)

                sda.Fill(tb)

                dataConn.Close()

                dataConn = Nothing

                XLSExport(tb, RunRpt)

            End With

    End Select

End Sub

Thank you in advance.

Patti

[Massimiliano Bassili]

Exporting to CSV gets you data as raw as it gets :D From there on, what you do with the data is up to you. Generally the main purpose of CSV format is to transfer data between different information systems e.g. import in MS Excel or Word, so you can definitely do it. One thing you have not shared is why you're not using the built-in export to excel ..

Cheers!

[P.]

Massimiliano, thank you for your post.

The CSV dumps only the cells/textboxes that appear on the report. I want to dump the RAW data from the stored procedure that feeds the report; the CSV export does not do this.

Why I have not used the Excel export is because it is only an image of the report, and it does not serve my purpose for data analysis.

I have two types of users, and their uses do overlap:

1. the user who is viewing reports and distributing them to others
2. the user that does their own data analysis on the raw data.

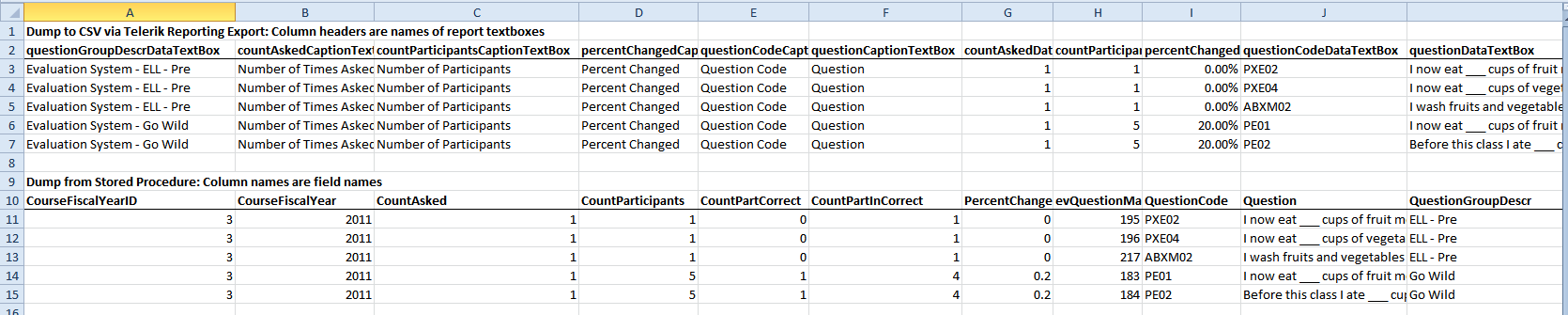

Attached is an Excel file showing a sample of the Report CSV export verses the raw stored procedure data. I want the data from the raw stored procedure.

Thanks.
Patti

[Steve]

Hello Patti,

According to the additional information you've provided, you do not need to go through Telerik Reporting for this at all. Check the following post for more information.

Best wishes,
Steve
the Telerik team

[P.]

Hi all.

My ultimate goal is to gather information from the Telerik ReportViewer currently viewed report, and generate an Excel dump of the report's raw data. The problem was, I was using the Telerik.Reporting.SqlDataSourec.Parameters to find values of the parameter values sent from the main program to the report; and I should have been using Telerik.Reporting.ReportParameterCollection.

I have this working for a single level report, and have yet to implement it for a drill-through report, and a multi-datasource report. Please realize, all my reports are populated by stored procedures.

Here is the code. I hope it helps someone.

Protected Sub btnDumpToExcel_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnDumpToExcel.Click
    Dim RunRpt As String = Me.ReportViewer1.Report.Reports(0).Name

    Dim tb As New DataTable(RunRpt)
    Dim dataConn As New SqlConnection
    Dim report1 As Telerik.Reporting.Report = Me.ReportViewer1.Report.Reports(0)

    With report1
        Dim xSQLDatasource As Telerik.Reporting.SqlDataSource = .DataSource
        Dim SQLConnectionString As String = System.Configuration.ConfigurationManager.ConnectionStrings(xSQLDatasource.ConnectionString).ToString
        Dim xSelectCommand As String = xSQLDatasource.SelectCommand

        dataConn.ConnectionString = SQLConnectionString
        dataConn.Open()
        Dim sdc As SqlCommand = New SqlCommand(xSelectCommand, dataConn)
        sdc.CommandTimeout = LengthOfTimeOut
        sdc.CommandType = CommandType.StoredProcedure
        Dim RPColl As Telerik.Reporting.ReportParameterCollection = report1.ReportParameters

        For Each rp As Telerik.Reporting.ReportParameter In RPColl
            Dim xParam As SqlParameter = New SqlParameter(rp.Name, rp.Value)
            sdc.Parameters.Add(xParam)
        Next

        Dim sda As SqlDataAdapter
        sda = New SqlDataAdapter(sdc)
        sda.Fill(tb)
        dataConn.Close()
        dataConn = Nothing
        XLSExport(tb, RunRpt)
    End With
End Sub

Thanks.

Patti
