Reports with two logical pages on the same physical page

7 posts, 0 answers
  1. Cezar
    Cezar avatar
    7 posts
    Member since:
    Apr 2014

    Posted 07 Jun 2016 Link to this post

    Hello I'm having difficulty in creating a report with two logical pages in one physical page . Initially performed the following steps to divide the report into columns ( logical pages ) : - In the properties of my report I went on settings page and set two columns. Added the table to display the data and is not continued in the second logical page . Its continuation is of the second physical page and the data is only displayed in the first column of the report . I do not know what to do . Thanks in advance.



  2.
  3. Katia
    Admin
    Katia avatar
    760 posts

    Posted 08 Jun 2016 Link to this post

    Hello Cezar,

    Check if you view the result in Print preview instead of Interactive preview- Interactive vs. Print Layout.

    As described in How to: Create a Multi-Column Report help article columns will only appear when you view a report in Print Preview, print a report or export it to a page-oriented format. Also the report's Width must be considered with the available space defined by the report's PageSettings (PaperKind, PaperSize, Margins, ColumnCount).


    In case, the issue is different please attach a problematic report in a support ticket so we can check the settings.

    Regards,
    Katia
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  5. Cezar
    Cezar avatar
    7 posts
    Member since:
    Apr 2014

    Posted 09 Jun 2016 Link to this post

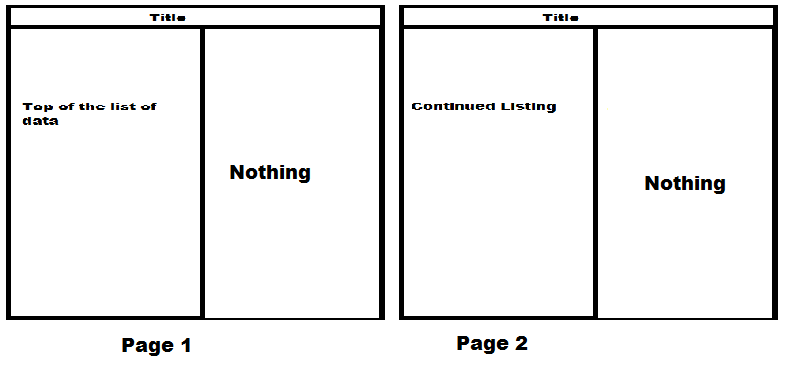

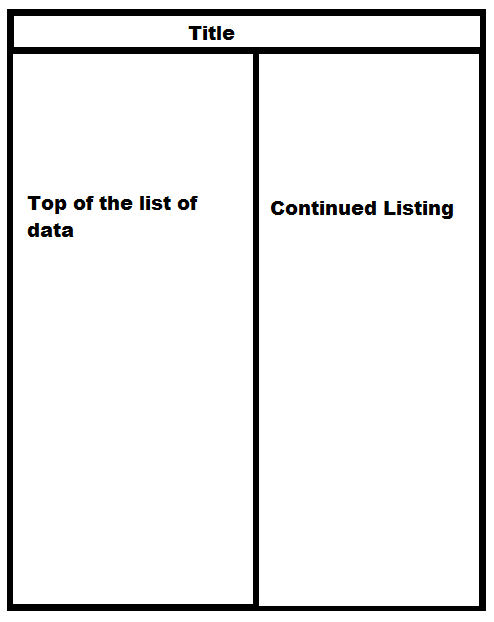

    Hello in the first image is displayed my need and in the second image is displayed what really happens
  7. Cezar
    Cezar avatar
    7 posts
    Member since:
    Apr 2014

    Posted 09 Jun 2016 Link to this post

    Hello in the first image is displayed my need and in the second image is displayed what really happens
  8.
  9. Cezar
    Cezar avatar
    7 posts
    Member since:
    Apr 2014

    Posted 09 Jun 2016 Link to this post

    Hello in the first image is displayed my need and in the second image is displayed what really happens
  11. Cezar
    Cezar avatar
    7 posts
    Member since:
    Apr 2014

    Posted 09 Jun 2016 Link to this post

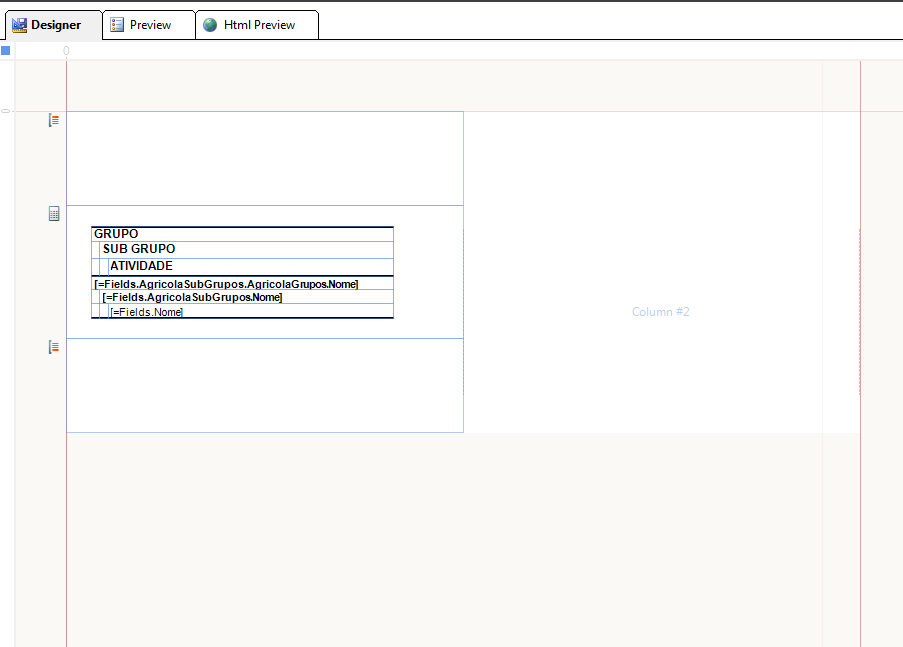

    Images
  13. Katia
    Admin
    Katia avatar
    760 posts

    Posted 10 Jun 2016 Link to this post

    Hi Cezar,

    The most common reason for this behavior is when report width is too large. Test setting report's width and the width of inner items to a smaller value in the Designer.

    Attached you can find a working example (can be opened with the latest version R2 2016 of Standalone Designer) that you can use to compare the settings.


    Regards,
    Katia
    Telerik
