Reporting Checkbox Checked state

[TelDev]

Hi,

I have a Report based on a database table. I have interger fields in the table(0 for false and -1 for true). These fields should be represented in report as checkboxes.
How can I bind the columns for checkbox state (checked/unchecked).

I am using following expression for the Value property of the checkbox, but the checkstate is not changing.
= IIf(Fields.col1< 0, True, False).

Am i missing anything?

Thanks
TelDev

[TelDev]

Can someone from Telerik Team please reply.

Thanks
TelDev

[Chavdar]

Hi,

The expression  is correct so the problem should be somewhere else. Could you please, open a support ticket and send us a sample report that reproduces this behavior so that we can investigate it locally.

All the best,
Chavdar
the Telerik team

[TelDev]

Thanks Chavdar,

I will try to create a test project.

If i want to set the checkbox value programatically(in code-behind), Which method should i use

checkbox.truevalue = system.windows.forms.checkstate.checked

or

checkbox.value = true

I tried both of them, but no luck.

Thanks
TelDev

[Peter]

Hi,

If you are trying to set the checkbox state in an event, check out Understanding Events help article and the following code snippet:

void checkBox1_ItemDataBinding(object sender, System.EventArgs e)
{
    var procCheckBox = (Processing.CheckBox)sender;
    procCheckBox.Value = System.Windows.Forms.CheckState.Checked;
}

Kind regards,
Peter
the Telerik team

[Yasmeen]

Hi Team,

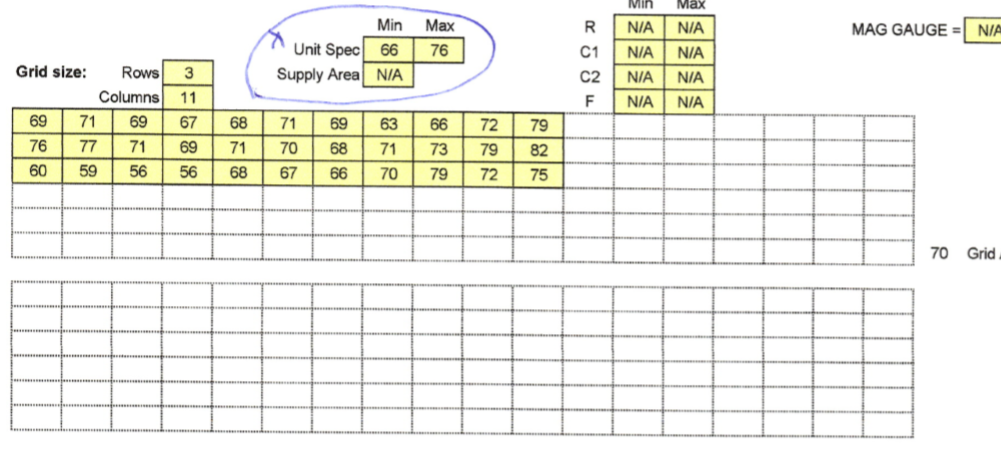

I need to use the grid in the telerik reporting. Did Telerik reporting support grid control? The grid should consists of rows and columns with grid lines. Based on the specified rows and columns the grid should be fill up. Is it possible to do. Please help me out on this. I am sending the screen shot of document.



[Stef]

Hello Yasmeen,

Telerik Reporting engine works only with Telerik Reporting items. Thus you can use the Table/List/Crosstab item to design such layout.

More details about the item are available in the following articles:

• Basic concepts
• Understanding CrossTab areas
• Understanding table cells, rows and columns

If the purpose is to export existing UI into PDF or other format, depending on the type of web application, please consider using Teler UI for AJAX - RadPdfProcessing, RadWordsProcessing. You may be interested also in Telerik UI for ASP.NET AJAX RadClientExportManager, which allows you to render HTML pages in PDF and image formats.In MVC project you can use Telerik Kendo UI PDF export (works like the ClientExportManager without requiring AJAX)."

Regards,
Stef
Telerik
