Removing extra whitespace under x-axis of reporting graph

2 Answers 287 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
David
Top achievements
Rank 1
David asked on 22 Apr 2020, 04:02 PM

Using the Telerik.Reporting.Graph, how can I remove extra whitespace under the x-axis?

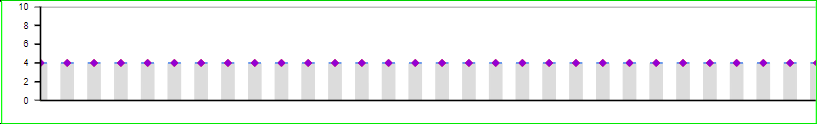

I am trying to make the x-axis not have any space underneath it, in the attached screenshot I have the border on the Graph set to green. I have turned off as many labels that I could find, and all the Padding I could find is set to 0. Any idea what would be causing the extra space between the x-axis and the green border?



Thank you,





2 Answers, 1 is accepted

Sort by
0
David
Top achievements
Rank 1
answered on 24 Apr 2020, 01:28 PM

I can find examples of what I want using the older "Chart" control, but not the new "Graph".

Looks like the old way was changing the "Chart.PlotArea.Appearance.Dimensions.Margins" property. But I do not see anything similar for the newer Graph control.

https://www.telerik.com/forums/how-to-set-y-axis-label-width

https://www.telerik.com/forums/decrease-margin-padding-in-between-chart-border-and-plot-area



0
Accepted
Todor
Telerik team
answered on 27 Apr 2020, 09:34 AM

Hi David,

It seems that when the LabelPlacement of the Axis is NonŠµ, there is still a place left for the Labels. We consider this as a bug and I have logged it in our feedback portal on your behalf - Graph Axes preserve space for labels even though LabelPlacement is set to None. We have updated your Telerik points as a token of gratitude.

As a workaround, if you use Category X-axis, you may set LabelPlacement to AtMaximum and the empty space will shrink.

As another alternative. The default Graph padding is '10px'. You may set it to a negative value, for example '-10px', to reduce the empty space below the axis.

Regards,
Todor
Progress Telerik
