Rect shape not rendering correctly when exporting to excel

3 posts, 0 answers
  1. Fernando
    Fernando avatar
    2 posts
    Member since:
    Jan 2019

    Posted 07 Oct Link to this post

    MVC HTML5 Report not rendering rect shape correctly when exporting to excel.

    Version: 2017/3.0

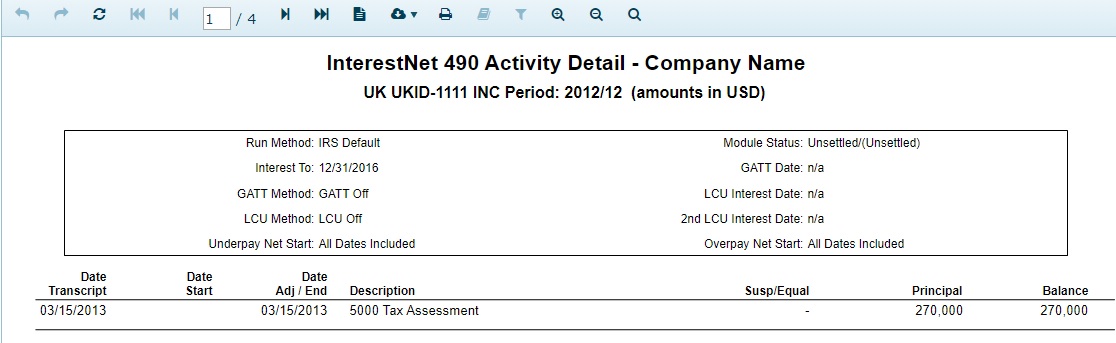

    See atached files.

  2. Todor
    Admin
    Todor avatar
    397 posts

    Posted 10 Oct Link to this post

    Hello Fernando,

    From the description and the provided screenshots, I assume that in the report there is a rectangular Shape that is overlapping with the TextBoxes. Please, note that in Excel rendering overlapping items are not supported and will be moved down/right by the Excel renderer so that they do not overlap - Design Considerations for Excel Rendering.

    I suggest replacing the Shape with a Panel with the same size and set borders to this Panel. Then you may place the TextBoxes inside the Panel and they should be rendered as expected in Excel.

    Please, test and let us know whether this works for you.

    Regards,
    Todor
    Progress Telerik

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Fernando
    Fernando avatar
    2 posts
    Member since:
    Jan 2019

    Posted 10 Oct in reply to Todor Link to this post

    Hi Todor, thanks alot for your answer. With your suggested change it worked as expected!
