RadTextBoxElement clipping issue with custom SimpleListViewVisualItem

[Sam]

Hello to all!

I'm using C#.

I have a RadListView that I only ever display in ListView mode. I have created a custom SimpleListViewVisualItem descendant, which has a DockLayoutPanel, inside of which is a GridLayout and another DockLayoutPanel, and inside the second DockLayoutPanel is a RadButtonElement, two RadDropDownListElement, and a RadTextBoxElement.

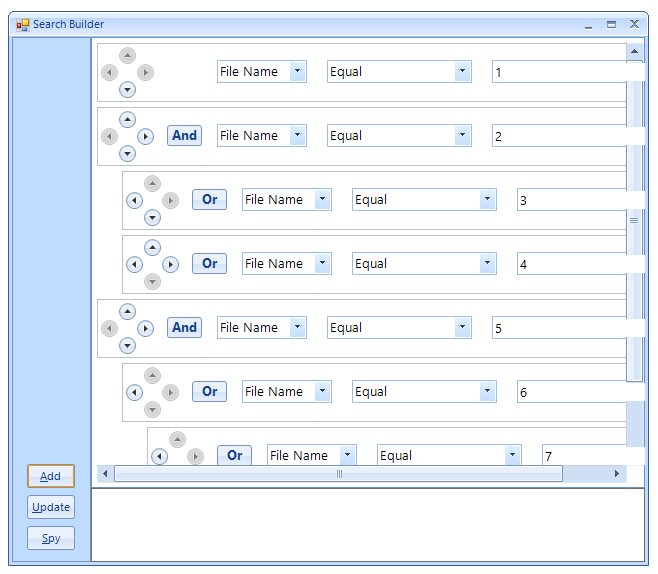

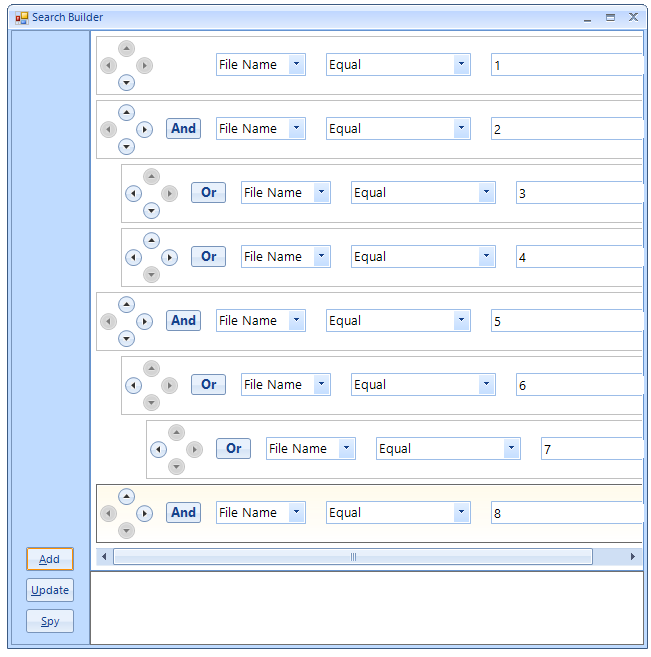

The first two attachments show the issue, both with and without the vertical scrollbar.

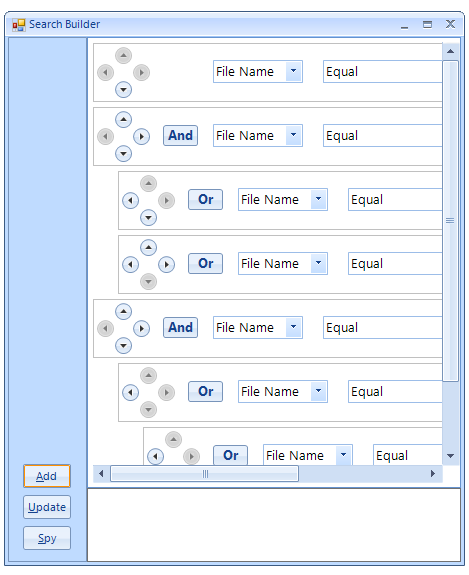

I ***believe*** I have all the appropriate ClipDrawing states set, because the RadDropDownListElement is clipping just fine (third attachment).

Is this a known issue?

Thanks.

Sam.

[Dimitar]

Hi Robert,

Thank you for writing.

You need to use RadTextBoxControlElement. The RadTextBox is hosting the standard .NET textbox inside it and this is why it is drawn over other elements (it's a control).

I hope this will be useful. Let me know if you have additional questions.

Regards,
Dimitar
Telerik by Progress

[Sam]

Hello Dimitar,

Yup ... that was it!!!

I got confused because appending Element to all the other controls just worked, and I never stumbled on that page you referenced.

it might be worthwhile to modify the examples list in the http://docs.telerik.com/devtools/winforms/telerik-presentation-framework/layout/predefined-layout-panels/predefined-layout-panels section, as every one of them use the plain ol' RadTextBoxElement.

Thank you for the speedy response.

Sam.

[Sam]

Hello Dimitar,

I think I just ran into the same issue with the RadDateTimePickerElement component, and unfortunately, there doesn't seem to be a RadDateTimePickerControlElement. ;-}

What do you recommend I use if I have a need for a Date/Time picker control that correctly clips and can be used in a RadListView?

Thank you.

Sam.

[Dimitar]

Hello Robert,

In this case, there is no way to replace the textbox used in the RadDateTimePickerElement. Perhaps you can use another approach and place the list view in a scrollable panel and use its scrolling functionality (make the list view large enough so all items are visible).

In addition, I want to mention that we now have a control that provides similar functionality: Overview | RadDataFilter.

I hope this helps.

Regards,
Dimitar
Telerik by Progress

[Sam]

Thank you for the confirmation about the limitations of the RadDateTimePickerElement, as well as for the recommendations of the scrollable panel and the RadDataFilter.
