RadStepProgressBar -- Progress line not aligned with the step elements

0 Answers 12 Views
StepProgressBar
Nikhil
Top achievements
Rank 1
Nikhil asked on 14 Apr 2025, 02:56 PM

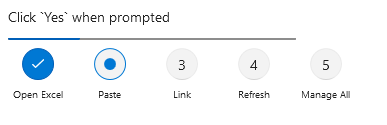

This is how my RadStepProgressBar appears for some of the steps.

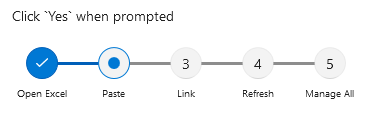

When I change the Height (or StepSpacing or Margin) of the RadStepProgressBar control in XAML hot reload, the appearance corrects itself.



This doesn't always happen, but only sometimes. I have set the binding for the ItemsSource property of RadStepProgressBar to my steps collection, and set the SelectedIndex using binding whenever a step is completed

What am I doing wrong?
Stenly
Telerik team
commented on 16 Apr 2025, 10:43 AM

Hello Nikhil,

Is there a possibility of providing a bit more information about this case? For example, some code snippets that reproduce this behavior, which I can use on my end to set up a sample project, in order to test it.

No answers yet. Maybe you can help?
