RadReport Bar Chart Bar Width

[Alex Tushinsky]

I need to be able to set the width of the bars, within my report.  In the attached screenshot, you'll see bars that are too narrow.  I'd like to make them as wide as each column would allow, with padding or margin on either side from keeping them from colliding with one another.

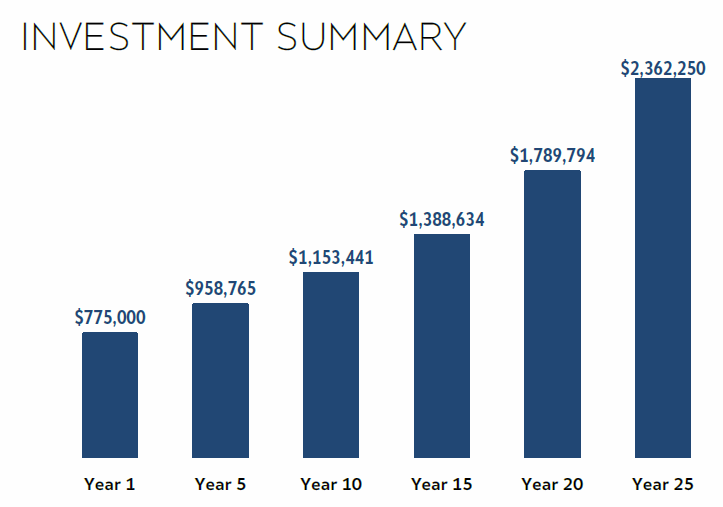

The first screen shot is what I was able to produce (telerik-version.png)

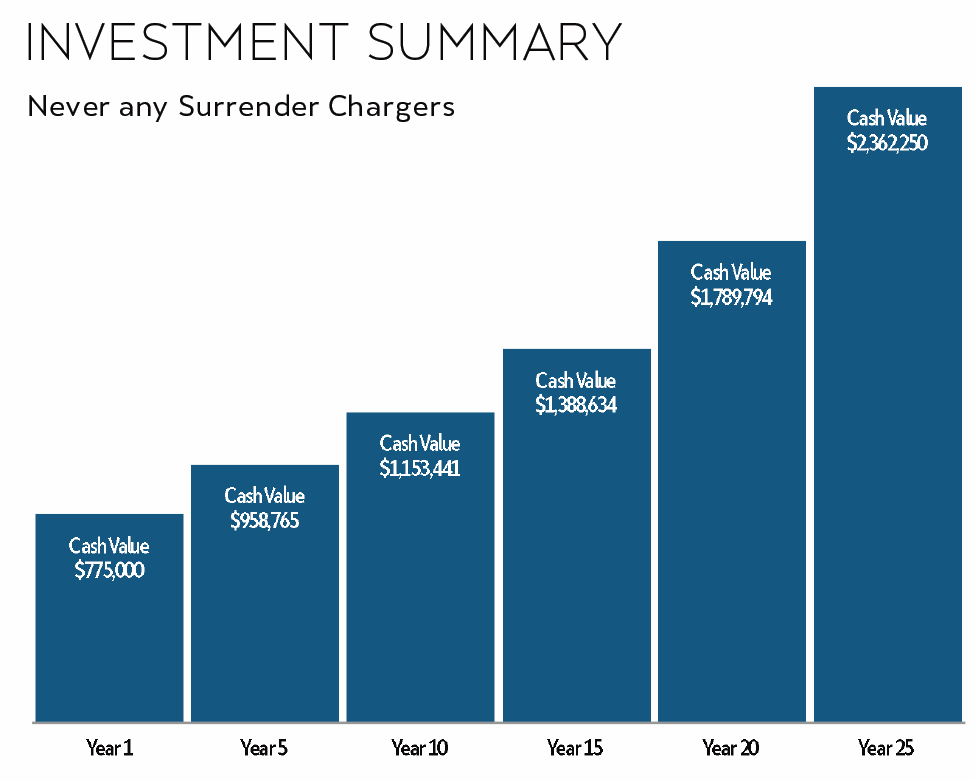

The second, is what I would like to produce (target.png).

 Any help is greatly appreciated!

Regards,
Alex

[Nasko]

Hello Alex,

You can use the graph axis scale's SpacingSlotCount property to configure the bar width. The SpacingSlotCount property determines the number of space slots that will be left around the data points per category slot, measured relatively to the data point slot's width: Empty Space = SpacingSlotCount * DataPoint_SlotWidth.

Regards,
Nasko
Telerik
