Stefania asked on 19 Jan 2018, 04:00 PM

Hi,

I'm using the last version of telerik and I was trying to integrate the RadPdfViewerToolBar into RadPdfViewer

This is my code

<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="Auto"/>
        <RowDefinition/>
    </Grid.RowDefinitions>
    <telerik:RadPdfViewerToolBar RadPdfViewer="{Binding ElementName=pdfViewer, Mode=OneTime}" />

    <telerik:RadPdfViewer Grid.Row="2" x:Name="pdfViewer" DataContext="{Binding CommandDescriptors, ElementName=pdfViewer}"
                            RenderOptions.BitmapScalingMode="HighQuality"     />
    <telerik:RadPdfViewerToolBar/>
</Grid>



I populate the pdfViewer on datacontext change

private void RootElement_DataContextChanged(object sender, DependencyPropertyChangedEventArgs e)
        {
            if (e.NewValue != e.OldValue)
            {
                pdfViewer.DocumentSource = new PdfDocumentSource(new Uri(e.NewValue.ToString()));
            }
        }

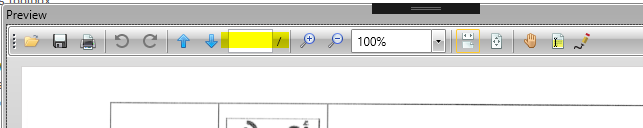

As shown on the attachment, the toolbar it seems not related to the pdfviewer.

Another question. Is it possible to specify a page number when I open the pdf? Something like GotoPage xy



Thank you

5 Answers, 1 is accepted

Sort by
0
Anna
Telerik team
answered on 23 Jan 2018, 07:47 AM
Hi Stefania,

Thank you for your questions.

It seems to me that what is causing your issue is the additional RadPdfViewerToolBar at the very bottom of your code which is not associated with the RadPdfViewer. It is positioned on the first row of the grid and it covers the functioning RadPdfViewerToolBar. If you delete the second toolbar everything should function properly.

As for your second question, there is a property of the RadPdfViewer called CurrentPageNumber which you can use to achieve this. Perhaps it would be best to use the DocumentChanged event of the viewer to set the current page as it would ensure that the document is loaded.

private void PdfViewer_DocumentChanged(object sender, DocumentChangedEventArgs e)
{
    this.pdfViewer.CurrentPageNumber = 2;
}


Regards,
Anna
Progress Telerik
Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
0
Stefania
Top achievements
Rank 2
answered on 23 Jan 2018, 09:19 AM

Hi Anna,

You're right! I didn't saw the double toolbar.. my mistake..



As for my second question I still have the issue on first load.

I have N buttons on a grid, one on each row. When I press one of them I call the PdfViewerUserControl and I populate the DataContext with my object DocumentsAndScannedDocument. This object contain the pdf and the page that I want to go.



The problem is that the first time that I press any button pdfviewer always go to the 1st page. After that it works fine.



Button Event

private void ViewDocumentButton_Click(object sender, RoutedEventArgs e)
       {
           RadButton button = sender as RadButton;
           DocumentsAndScannedDocument scannedDocument = button.DataContext as DocumentsAndScannedDocument;

           using (new WpfWaitCursor())
           {
                   PdfViewerUserControl.DataContext = scannedDocument;

                   previewRadDocumentPane.Visibility = Visibility.Visible;
                   previewRadDocumentPane.IsPinned = true;
           }
       }

PdfViewerUserControl.xaml

<Grid>
       <Grid.RowDefinitions>
           <RowDefinition Height="Auto"/>
           <RowDefinition Height="Auto"/>
           <RowDefinition/>
       </Grid.RowDefinitions>
       <telerik:RadPdfViewerToolBar x:Name="pdfViewerToolBar" RadPdfViewer="{Binding ElementName=pdfViewer, Mode=OneTime}" />

       <telerik:RadPdfViewer Grid.Row="2" x:Name="pdfViewer" DataContext="{Binding CommandDescriptors, ElementName=pdfViewer}"
                               RenderOptions.BitmapScalingMode="HighQuality" DocumentChanged="pdfViewer_DocumentChanged"     />

   </Grid>

Code behind

private void RootElement_DataContextChanged(object sender, DependencyPropertyChangedEventArgs e)
       {
           if (e.NewValue != e.OldValue)
           {

               DocumentsAndScannedDocument scannedDocument = e.NewValue as DocumentsAndScannedDocument;
               pdfViewer.DocumentSource = new PdfDocumentSource(new Uri(scannedDocument.OriginalFilename));

           }
       }
private void pdfViewer_DocumentChanged(object sender, DocumentChangedEventArgs e)
        {
            DocumentsAndScannedDocument scannedDocument = this.DataContext as DocumentsAndScannedDocument;
            this.pdfViewer.CurrentPageNumber = scannedDocument.Page;
        }



Thank you

0
Polya
Telerik team
answered on 25 Jan 2018, 01:03 PM
Hello Stefania,

Using the provided code I've setup a sample project but I could not reproduce the issue with the initially set page number. In the project, I am using a single button that, when clicked, resets the RadPdfViewer DocumentSource and CurrentPageNumber. It works as expected each time (including the first time). You can find the project attached.

Please take a look and let us know whether it works at your side too. If not, I will kindly ask you to open a new ticket and attach either your project or this one(modified to demonstrate the issue) so we can get a better understanding of your scenario and assist you further.

Regards,
Polya
Progress Telerik
Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
0
Stefania
Top achievements
Rank 2
answered on 25 Jan 2018, 03:49 PM

Hi,

try to change your xaml like this:

<telerik:RadDocking>
           <telerik:RadDocking.DocumentHost>
               <telerik:RadSplitContainer>
                   <telerik:RadPaneGroup>
                       <telerik:RadPane Header="Documents Loaded" CanUserClose="False">
                           <telerik:RadButton Click="ViewDocumentButton_Click" Content="Load sample document" DataContext="{Binding ButtonDataContext}"/>
                       </telerik:RadPane>
                   </telerik:RadPaneGroup>
               </telerik:RadSplitContainer>

       </telerik:RadDocking.DocumentHost>
       <telerik:RadSplitContainer InitialPosition="DockedRight" Width="550">
                   <telerik:RadPaneGroup >

                       <telerik:RadDocumentPane x:Name="previewRadDocumentPane" Title="Preview" IsPinned="False" CanDockInDocumentHost="False" CanUserClose="False" CanFloat="True"  >

                       <Grid>
                           <Grid.RowDefinitions>
                               <RowDefinition Height="Auto"/>
                               <RowDefinition Height="Auto"/>
                               <RowDefinition/>
                           </Grid.RowDefinitions>
                           <telerik:RadPdfViewerToolBar Grid.Row="1" x:Name="pdfViewerToolBar" RadPdfViewer="{Binding ElementName=pdfViewer, Mode=OneTime}" />

                           <telerik:RadPdfViewer Grid.Row="2" x:Name="pdfViewer" DataContext="{Binding CommandDescriptors, ElementName=pdfViewer}"
                              RenderOptions.BitmapScalingMode="HighQuality" DocumentChanged="pdfViewer_DocumentChanged"     />
                       </Grid>
                   </telerik:RadDocumentPane>
                   </telerik:RadPaneGroup>
               </telerik:RadSplitContainer>
       </telerik:RadDocking>



and pdfViewer_DocumentChanged like this

private void pdfViewer_DocumentChanged(object sender, DocumentChangedEventArgs e)
       {
           previewRadDocumentPane.Visibility = Visibility.Visible;
           previewRadDocumentPane.IsPinned = true;

           DocumentsAndScannedDocument scannedDocument = this.DataContext as DocumentsAndScannedDocument;
           this.pdfViewer.CurrentPageNumber = scannedDocument.Page;

       }







0
Polya
Telerik team
answered on 30 Jan 2018, 12:31 PM
Hello Stefania,

The default value of RadPane's IsPinned property is true. If it is set to false in xaml when the RadDocking is loaded an unpin animation is played and the content of the RadPane is moved to a popup which is then hidden.
That said, we recommend setting the IsPinned when you wish to manually hide a RadPane, but not as an initial state. If in the example the IsPinned of the Preview RadPane is not set to false initially everything works as expected.
I recommend setting the IsPinned to false after the InitializeComponent(), when the template is applied, of the UserControl. I've modified the project to demonstrate this approach. Please find it attached.
