Hi,
For some strange reason in my application the popup of RadMenuItem gets very big (see the attached picture). I have made a sample project and in a new one i can not reproduce the unexpected behaviour. So i want to do some work-arounds and control the popup size on the opening event (MouseHoover). So far i have tried this :
this
.menuItem.MouseHover += (sender, args) => {
this
.menuItem.DropDown.PopupElement.MaxSize =
new
Size(100, 100);
this
.menuItem.DropDown.PopupElement.Size =
new
Size(100, 100);
};
However this results in some even more weird behaviour - the popup splits into two areas - you can see this in the attached picture (green area and blue area). I am quite certain that the blue area is represented as "menuItem.DropDown.PopupElement". The question is - what is called the green area? How can I control the size of that ?
Thank you very much!
8 Answers, 1 is accepted
Without a way to reproduce this I cannot say why there are two areas and where the second one comes from. I would suggest you open a support ticket and attach your project there. This will allow us to determine what is happening in the application.
Should you have any other questions do not hesitate to ask.
Regards,
Dimitar
Progress Telerik

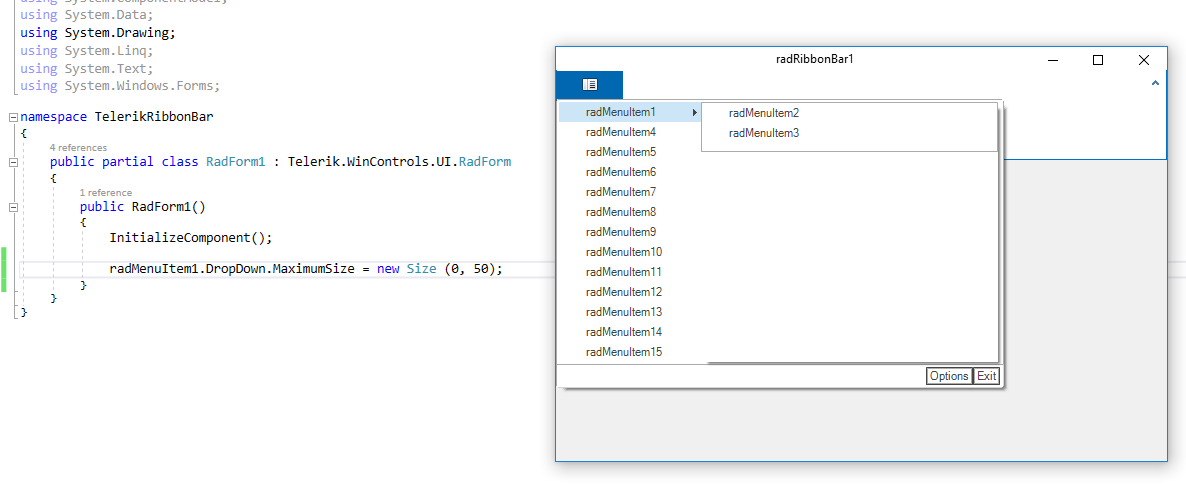

Hi again. I have reproduced the problem. As you can see RadMenuItem's (radmenuitem1) popup is way too big. I want that it would wrap around inner elements. Thank you.
P.S. I can not submit a ticket currently because my companies issued subscribtion has ended. So i am posting the code here:
https://ufile.io/dokdi
Thank you for sharing the code.
In this case the menu is taking the height from its parent control. The menu is control itself and this allows you to use its MaximumSize property:
radMenuItem1.DropDown.MaximumSize =
new
Size(0, 50);
I hope this will be useful. Let me know if you have additional questions.
Regards,
Dimitar
Progress Telerik
I have checked this and the RootElement already has a minimum size. In this case, you should reset its minimum size like this:
private
void
RadMenuItem1_DropDownOpening(
object
sender, CancelEventArgs e)
{
radMenuItem1.DropDown.MaximumSize =
new
Size(0, 50);
radMenuItem1.DropDown.RootElement.MinSize =
new Size(0, 0);
}
Should you have any other questions do not hesitate to ask.
Regards,
Dimitar
Progress Telerik
This is a very nice solution. Thanks !!!

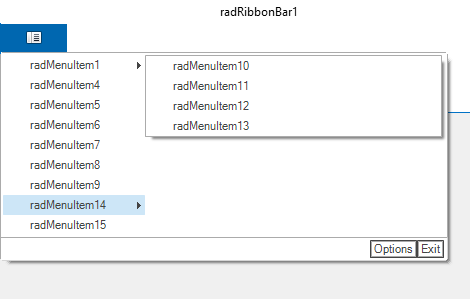

However it raised one more problem that I cant seem to tackle. After this enhancement i need to control the location of the drop down because now it is not aligned. (See the picture for details - cantcontrol.png).
With this code i can't seem to be able to control the location of the drop down:
this
.radMenuItem14.DropDown.Location =
new
System.Drawing.Point (50, 50);
this
.radMenuItem14.DropDown.RootElement.Location =
new
System.Drawing.Point (50, 50);
this
.radMenuItem14.DropDown.PopupElement.Location =
new
System.Drawing.Point (50, 50);
Even i tried to put it in the event handler:
private
void
DropDownOpening (
object
sender, CancelEventArgs e)
{
(sender
as
RadMenuItem).DropDown.RootElement.MinSize =
new
Size (0, 0);
(sender
as
RadMenuItem).DropDown.Location =
new
System.Drawing.Point (50, 50);
(sender
as
RadMenuItem).DropDown.RootElement.Location =
new
System.Drawing.Point (50, 50);
(sender
as
RadMenuItem).DropDown.PopupElement.Location =
new
System.Drawing.Point (50, 50);
}

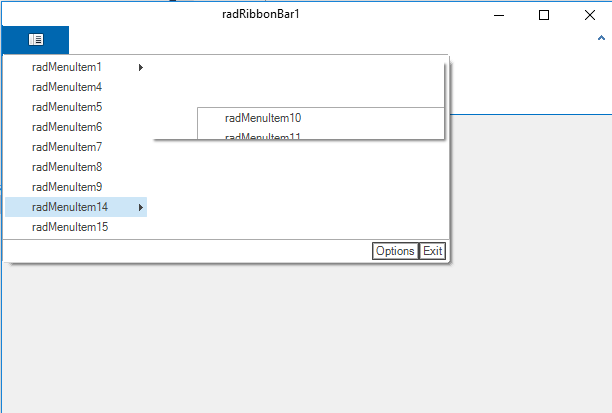

And there i get pretty strange behaviour again (see the attached picture - weirddropdown.png)
How do i sync drop down location with menu item's location then ?
You can use the following approach to set the location:
private
void
RadMenuItem1_DropDownOpening(
object
sender, CancelEventArgs e)
{
var item = sender
as
RadMenuItem;
item.DropDown.MaximumSize =
new
Size(0, 50);
item.DropDown.RootElement.MinSize =
new
Size(0, 0);
var args = e
as
RadPopupOpeningEventArgs;
var y = item.PointToScreen(item.Location).Y;
args.CustomLocation =
new
Point(args.CustomLocation.X, y);
}
Do not hesitate to contact us if you have other questions.
Dimitar
Progress Telerik
