RadImageEditorUI localization

7 Answers 104 Views
ImageEditor
This is a migrated thread and some comments may be shown as answers.
Louis-Guillaume
Top achievements
Rank 1
Louis-Guillaume asked on 15 Dec 2016, 09:53 PM

Hi,

I just tried this control and within 3 minutes, I customized it to get the perfect image editor for my project. My only issue is about localization (in french).

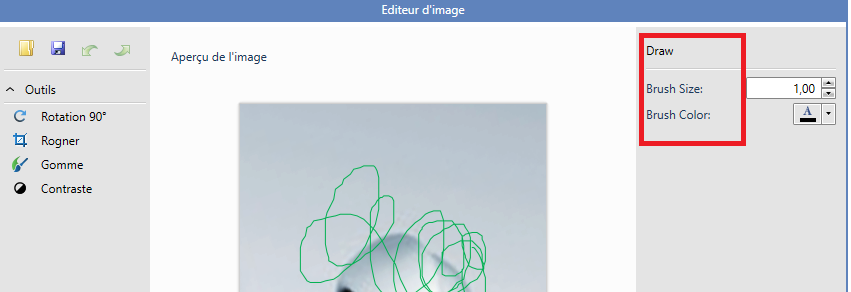

I can directly edit header and tools labels within XAML but some tools open a custom side-pane with non translated controls. (i.e. Draw tools => brush size, brush color). I don't know why this component is not localized. I tried several things like "Language="fr-FR" in XAML or even C#

System.Threading.Thread.CurrentThread.CurrentCulture = new System.Globalization.CultureInfo("fr-FR");
         System.Threading.Thread.CurrentThread.CurrentUICulture = new System.Globalization.CultureInfo("fr-FR");



From what I understand, localized strings are in Telerik.Windows.Controls.dll so they should be charged. Even more weird, when I run the WPF Demos, I can success to run the Localized version of this control (the demo where you can choose between english, german, french)

Thanks for any help



ps: I have the very last version of UI for WPF (2016 R3)

info: I'm running it in a VSTO for Office. Not sure that changes anything but I prefer to give all information

7 Answers, 1 is accepted

Sort by
0
Louis-Guillaume
Top achievements
Rank 1
answered on 16 Dec 2016, 06:30 AM
please note that the label "Image preview" on top of the image is correctly localized. I can't imagine that some controls are are coded
0
Louis-Guillaume
Top achievements
Rank 1
answered on 16 Dec 2016, 06:37 AM

sorry for multipost, I cannot edit a previous post?!!



I found that some tools are localized but not the "Draw" one. What are the solutions to localized it ?

0
Petar Mladenov
Telerik team
answered on 20 Dec 2016, 03:07 PM
Hi Louis,

We are aware of these missing translated resources in our resource files for localization. You can follow the status of the issue in our portal.

You can build custom localization dictionary for ImageEditor using the localization keys in the style of the ImageEditor. Or you can copy the Strings.fr resx file, use it for building a custom localization and just add the missing translations. The mentioned file is shipped witht he source code of our controls.

Regards,
Petar Mladenov
Telerik by Progress
Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
0
Louis-Guillaume
Top achievements
Rank 1
answered on 20 Dec 2016, 04:55 PM

Hi Petar,

Thanks for your answer. Sorry but could you please give more guidance.

You can build custom localization dictionary for ImageEditor using the localization keys in the style of the ImageEditor



In the template, I cannot access nor define the labels for the panel. I just have this in Xaml

<tools:DrawTool />

I don't see how I can override it nor define custom localizations keys for the settings panel. Am I missing something ?



Regarding the second way with "Strings.fr". It would require to define a "fake" langage and add it to my application and force the fake culture for the component, isn't it ?. I don't like it that much because it means that it may broke something during future update of the telerik suite. I don't want to take new string.fr.resx file every release to apply each change. Am I wrong ?









Third solution: waiting for the fix BUT:

My customer (bank) says it can wait for Telerik WPF 2017 but can you guaranty that these missings labels will be fixed by then ? I need to choose a components suite now and if the next version will not fix that, I cannot recommand them to use Telerik as the recommended third-party suite.



Thanks a lot for your help.







0
Petar Mladenov
Telerik team
answered on 22 Dec 2016, 11:16 AM
Hi Louis,

Please check out the Localization article for RadImageEditor. You can inherit  our LocalizationManager and override just the missing strings you need. For the rest - base class should be called, just like in the code snippet in the article. The full list of localization strings can be found in the SDK Localization Demo.

We hope this approach is suitable in your scenario.

Regards,
Petar Mladenov
Telerik by Progress
Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
0
Louis-Guillaume
Top achievements
Rank 1
answered on 24 Dec 2016, 03:22 PM

Hi Petar,

Thanks for the guidance, within two minutes I was able to fix 2/3 of the issue, indeed, one of the label does not seem to implement localization manager even if it is declared in the resources files (the original one from your example). In fact, it is because the XAML created by default (drag and drop) and SDK example seem to have an error in the resource

ImageEditor_DrawTool instead of expected ImageEditor_Draw

public override string GetStringOverride(string key)
       {
           switch (key)
           {
               //case "ImageEditor_DrawTool":
               //    return "Pinceau";
               case "ImageEditor_Draw":
                   return "Pinceau";
               case "ImageEditor_DrawTool_BrushColor":
                   return "Couleur";

               case "ImageEditor_DrawTool_BrushSize":
                   return "Taille";
           }
           return base.GetStringOverride(key);
       }





Any my issue is solved for now. thanks for your help and have a merry Xmas Petar

0
Petar Mladenov
Telerik team
answered on 27 Dec 2016, 10:53 AM
Hello Louis,

Thanks for letting us know about the issue. We will update the demo accordingly.

Regards,
Petar Mladenov
Telerik by Progress
Want to extend the target reach of your WPF applications, leveraging iOS, Android, and UWP? Try UI for Xamarin, a suite of polished and feature-rich components for the Xamarin framework, which allow you to write beautiful native mobile apps using a single shared C# codebase.
