Radgrid Merge rows to the whole column.

[m chotu]

Hi Telerik team;

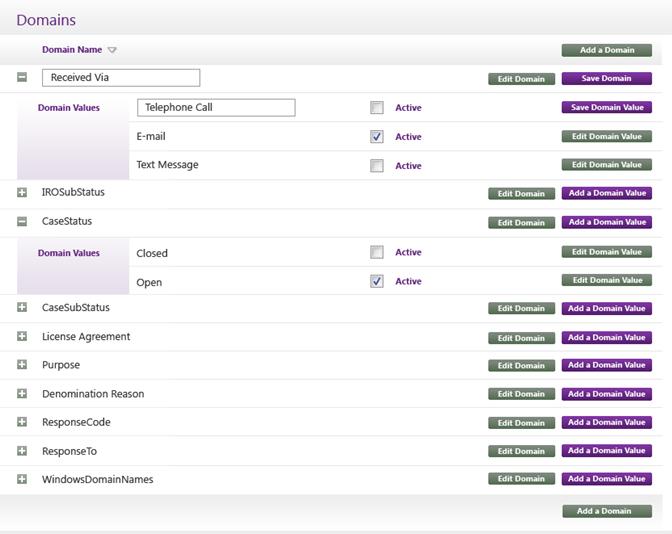

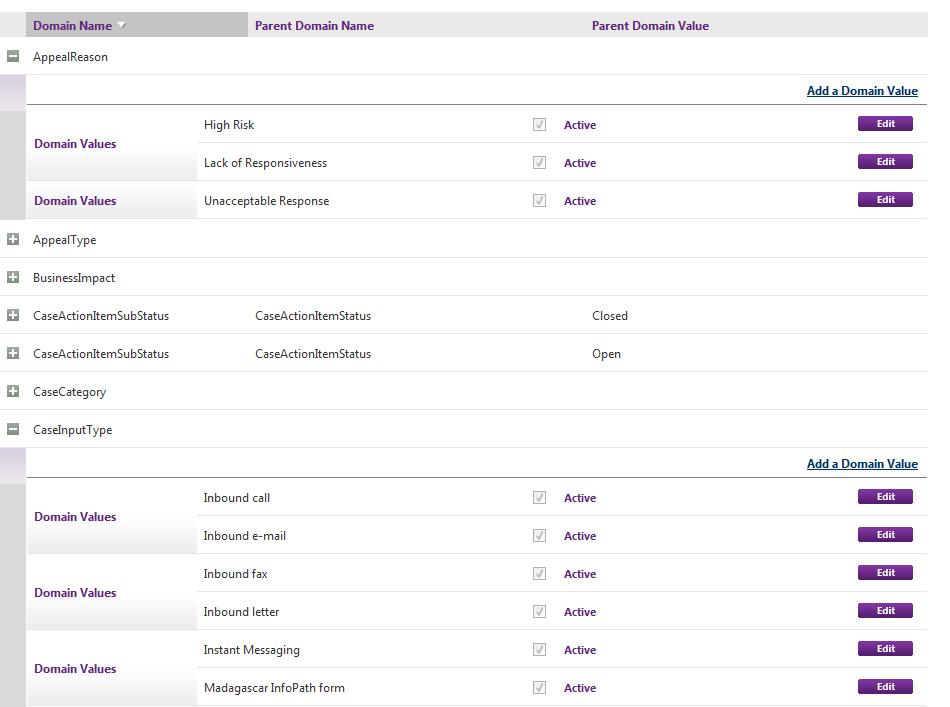

I am trying to achive the following thing in my radgrid.  I have a mastergrid and a detail table in my aspx.  In the detail table I need to set the rowspan of the first column such a way that there is only 1 cell in that column with text.  I have enclosed the jpg that I am trying to achieve.  I tried using this code in the onItemDataBound event:  But I am not getting the desired result.  I have also enclosed my actual result.  Could you please help?

Thanks in advance,

Meera

//Aspx



<



telerik:RadGrid ID="viewGrid" runat="server" ActiveItemStyle-BorderColor="ActiveBorder"













ShowStatusBar="True" AllowSorting="true" ItemStyle-BorderWidth="1px" OnSortCommand="viewGrid_Sort"













MasterTableView-ExpandCollapseColumn-CollapseImageUrl="~/App_Themes/Images/Content/collapse.gif"





MasterTableView-ExpandCollapseColumn-ItemStyle-CssClass="textalignleft"





MasterTableView-ExpandCollapseColumn-ButtonType="ImageButton"





MasterTableView-ExpandCollapseColumn-ExpandImageUrl="~/App_Themes/Images/Content/expand.gif"













OnUpdateCommand="viewGrid_UpdateCommand" Width="900px"













MasterTableView-ExpandCollapseColumn-ItemStyle-HorizontalAlign="Center" OnItemCreated="viewGrid_ItemCreated"













MasterTableView-ExpandCollapseColumn-ItemStyle-VerticalAlign="Middle" OnItemDataBound="viewGrid_DataBound"













MasterTableView-ExpandCollapseColumn-ItemStyle-Width="2%" OnDetailTableDataBind="viewGrid_DetailTableDataBind"





OnNeedDataSource="viewGrid_NeedDataSource" OnPreRender="viewGrid_PreRender"





OnInsertCommand="viewGrid_InsertCommand" AllowMultiRowEdit="false">













<MasterTableView AutoGenerateColumns="False" HierarchyLoadMode="ServerBind"













DataKeyNames="DomainName,ParentDomainValue" Name="Master" >













<DetailTables>













<telerik:GridTableView DataKeyNames="DomainName,ParentDomainName,ParentDomainValue,DomainValue" Name="DomainLabel"





AutoGenerateColumns="false" BorderStyle="None" ItemStyle-BorderWidth="0px" AllowSorting="false"





ShowHeader="false" Width="900px"













CommandItemDisplay="Top" EditMode="InPlace">













<ParentTableRelation>













<telerik:GridRelationFields DetailKeyField="DomainName" MasterKeyField="DomainName" />













</ParentTableRelation>













<CommandItemSettings AddNewRecordText="<%$ Resources:DomainAdmin, locAddDomainValue %>" />













<Columns>













<telerik:GridTemplateColumn UniqueName="DomainLabelcol" >













<ItemTemplate>













<asp:Label ID="plSubject" runat="server" Text="Domain Values" />













</ItemTemplate>













<ItemStyle Width="150px" Wrap="false" HorizontalAlign="Left" CssClass="panelstyle"





ForeColor="#62267f" Font-Bold="true"/>













</telerik:GridTemplateColumn>













<telerik:GridBoundColumn UniqueName="DomainValue" DataType="System.String"













DataField="DomainValue" ColumnEditorID="GridTextBoxColumnEditor1"













ItemStyle-HorizontalAlign="Left"













ItemStyle-Wrap="false"













ItemStyle-Width="300px">













</telerik:GridBoundColumn>













<telerik:GridCheckBoxColumn DataField="ActiveFlag" UniqueName="ActiveFlag"





DataType="System.Boolean"





ItemStyle-HorizontalAlign="Left"













ItemStyle-Wrap="false"













ItemStyle-Width="20px">





</telerik:GridCheckBoxColumn>













<telerik:GridTemplateColumn UniqueName="DomainLabelcol" >













<ItemTemplate>













<asp:Label ID="lblActive" Text="Active" runat="server" CssClass="ActiveLabelStyle" />













</ItemTemplate>













<ItemStyle Width="130px" Wrap="false" HorizontalAlign="Left" />













</telerik:GridTemplateColumn>













<telerik:GridEditCommandColumn ButtonType="ImageButton"





EditImageUrl="../App_Themes/Images/Buttons/domain_pur_edit.gif"













InsertImageUrl="../App_Themes/Images/Buttons/domain_gr_insert.gif"













CancelImageUrl="../App_Themes/Images/Buttons/domain_gr_cancel.gif"













UpdateImageUrl="../App_Themes/Images/Buttons/domain_gr_update.gif"













UniqueName="EditDomainValueColumn"













ItemStyle-HorizontalAlign="Right"













ItemStyle-Wrap="false"













ItemStyle-Width="200px">













</telerik:GridEditCommandColumn>













<telerik:GridCheckBoxColumn DataField="EditableFlag" UniqueName="EditFlag"





DataType="System.Boolean" Visible="false" >





</telerik:GridCheckBoxColumn>















</Columns>













</telerik:GridTableView>













</DetailTables>













<Columns>













<telerik:GridBoundColumn UniqueName="DomainName" DataType="System.String" HeaderText="<%$ Resources:DomainAdmin, locDomainName %>"













DataField="DomainName" SortExpression="DomainName"





ItemStyle-HorizontalAlign="Left"













HeaderStyle-Width="200px" HeaderStyle-HorizontalAlign="Left" ItemStyle-Wrap="false"













HeaderStyle-Font-Bold="true" HeaderStyle-ForeColor="#62267f" ItemStyle-Width="200px"













SortAscImageUrl="~/App_Themes/Images/Buttons/arrow_sort_up.png"





SortDescImageUrl="~/App_Themes/Images/Buttons/arrow_sort_down.png"













>













</telerik:GridBoundColumn>













<telerik:GridBoundColumn UniqueName="ParentDomainName" DataType="System.String"













HeaderText="<%$ Resources:DomainAdmin, locParentDomainName %>" DataField="ParentDomainName"





SortExpression="ParentDomainName"













ItemStyle-HorizontalAlign="Left"













HeaderStyle-Width="300px" HeaderStyle-HorizontalAlign="Left" ItemStyle-Wrap="false"













HeaderStyle-Font-Bold="true" HeaderStyle-ForeColor="#62267f" ItemStyle-Width="300px"













SortAscImageUrl="~/App_Themes/Images/Buttons/arrow_sort_up.png"





SortDescImageUrl="~/App_Themes/Images/Buttons/arrow_sort_down.png">





</telerik:GridBoundColumn>













<telerik:GridBoundColumn UniqueName="ParentDomainValue" DataType="System.String" HeaderText="<%$ Resources:DomainAdmin, locParentDomainValue %>"













DataField="ParentDomainValue" SortExpression="ParentDomainValue"













ItemStyle-HorizontalAlign="Left"













HeaderStyle-Width="300px" HeaderStyle-HorizontalAlign="Left" ItemStyle-Wrap="false"













HeaderStyle-Font-Bold="true" HeaderStyle-ForeColor="#62267f" ItemStyle-Width="300px"













SortAscImageUrl="~/App_Themes/Images/Buttons/arrow_sort_up.png"





SortDescImageUrl="~/App_Themes/Images/Buttons/arrow_sort_down.png">













</telerik:GridBoundColumn>













</Columns>













<AlternatingItemStyle Wrap="false"/>













<ItemStyle Wrap="false"/>













<RowIndicatorColumn Visible="False">













<HeaderStyle Width="20px" />













</RowIndicatorColumn>













<ExpandCollapseColumn ButtonType="ImageButton">













</ExpandCollapseColumn>













<EditFormSettings>













<PopUpSettings ScrollBars="None" />













</EditFormSettings>













</MasterTableView>













</telerik:RadGrid>











protected



void viewGrid_DataBound(object source, Telerik.Web.UI.GridItemEventArgs e)



{



if (!(e.Item is GridDataInsertItem))



{



if ((e.Item is GridDataItem) && (e.Item.OwnerTableView.Name == "DomainLabel"))



{

    //Merge rows







    GridTableView tv = (GridTableView)e.Item.OwnerTableView;





    for (int rowIndex = tv.Items.Count - 2; rowIndex >= 0; rowIndex--)



    {



        GridDataItem row = tv.Items[rowIndex];





        GridDataItem previousRow = tv.Items[rowIndex + 1];





        if (row["DomainLabelcol"].Text == previousRow["DomainLabelcol"].Text)



        {

            row[

"DomainLabelcol"].RowSpan = 2;



            previousRow[

"DomainLabelcol"].Visible = false;



            previousRow[

"DomainLabelcol"].Text = "&nbsp;";



        }

    }
}

[Princy]

Hello Meera,

Try out the following code in the PreRender event of the grid and see if it helps:
c#:

 protected void RadGrid1_PreRender(object sender, EventArgs e)
    {
       foreach (GridDataItem dataItem in RadGrid1.Items)
        {
            if ((dataItem.OwnerTableView.Name == "DomainLabel"))
            {
                //Merge rows
                GridTableView tv = (GridTableView)dataItem.OwnerTableView;
                for (int rowIndex = tv.Items.Count - 2; rowIndex >= 0; rowIndex--)
                {
                    GridDataItem row = tv.Items[rowIndex];
                    GridDataItem previousRow = tv.Items[rowIndex + 1];
                    if (row["DomainLabelcol"].Text == previousRow["DomainLabelcol"].Text)
                    {
                        row["DomainLabelcol"].RowSpan = previousRow["DomainLabelcol"].RowSpan < 2 ? 2 : previousRow["DomainLabelcol"].RowSpan + 1;
                        previousRow["DomainLabelcol"].Visible = false;
                        previousRow["DomainLabelcol"].Text = "&nbsp;";
                    }
                }
            }
        }
   }

Thanks
Princy.

[m chotu]

Thanks Princy!  That worked really well for me.  Thanks for your help.

Meera

[Hector Hernandez]

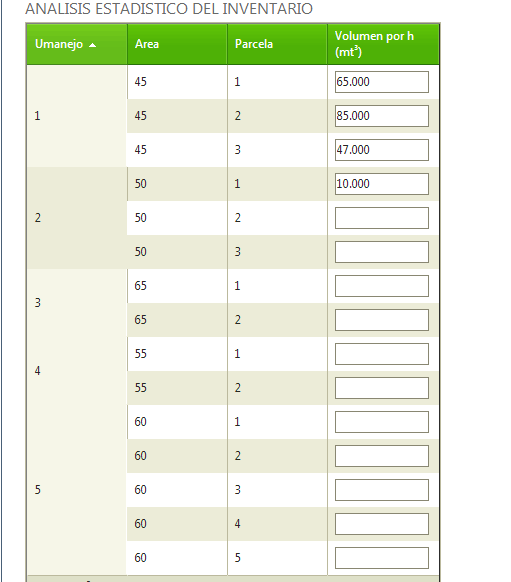

Dear Princy, i see these example, and also work for me, but the grid semms to be without lines
here an image, is there a way to fix that

thanks in advance



[Shinu]

Hi,

Please try setting GridLines="Both" .

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" GridLines="Both">
. . . . . . .
 </telerik:RadGrid>

Thanks,
Shinu

[Hector Hernandez]

hi Shinu
i was triying that but dosen't work
here is how is my Grid

<telerik:RadGrid runat="server" ID="GrdAnalEst" PageSize="20"
                                AutoGenerateColumns="false" Width="100%" AllowSorting="true" GridLines="Both"
                                AllowPaging="true">
                                <PagerStyle Mode="NextPrevAndNumeric" NextPageText="Siguiente"
                              PrevPageText="Anterior" Position="Bottom"
                              PagerTextFormat="Change page: {4} &amp;nbsp;Pagina &lt;strong&gt;{0}&lt;/strong&gt; de &lt;strong&gt;{1}&lt;/strong&gt;, registros &lt;strong&gt;{2}&lt;/strong&gt; a &lt;strong&gt;{3}&lt;/strong&gt; de &lt;strong&gt;{5}&lt;/strong&gt;."
                              PageSizeLabelText="Regitros" />
                            <MasterTableView DataKeyNames="CODPROPIEDAD,CODSOLICITANTE,CODPLAN,UMANEJO,area,PARCELA,VOLH" NoMasterRecordsText="No Hay Inventario Ingresado" ShowFooter="true" Name="Labeles">
                                <Columns>
                                    <telerik:GridBoundColumn DataField="CODPROPIEDAD" Visible="false" HeaderText="Codigo" HeaderStyle-Width="75px">
                                        <HeaderStyle Width="225px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                    <telerik:GridBoundColumn DataField="CODSOLICITANTE" Visible="false" HeaderText="Codigo" HeaderStyle-Width="75px">
                                        <HeaderStyle Width="225px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                    <telerik:GridBoundColumn DataField="CODPLAN" Visible="false" HeaderText="Codigo" HeaderStyle-Width="75px">
                                        <HeaderStyle Width="225px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                    <telerik:GridBoundColumn DataField="UMANEJO" HeaderText="Umanejo" HeaderStyle-Width="100px"  FooterText="Total (mt³)" FooterStyle-Font-Bold="true" >
                                        <HeaderStyle Width="100px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                   <telerik:GridBoundColumn DataField="area" HeaderText="Area" HeaderStyle-Width="100px"   >
                                        <HeaderStyle Width="100px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                    <telerik:GridBoundColumn DataField="PARCELA" HeaderText="Parcela" HeaderStyle-Width="100px"   >
                                        <HeaderStyle Width="100px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                      <telerik:GridBoundColumn DataField="VOLH" HeaderText="Vol/Ha (mt³)" HeaderStyle-Width="100px" Visible="false"   >
                                        <HeaderStyle Width="100px"></HeaderStyle>
                                    </telerik:GridBoundColumn>
                                    <telerik:GridTemplateColumn HeaderText="Volumen por h (mt³)"  UniqueName="VOLH" HeaderStyle-Width="100px" >
                                    <ItemTemplate>
                                        <telerik:RadNumericTextBox runat="server" ID="TxtVolGridEsta" Width="90px">
                                            <NumberFormat DecimalDigits="3" />
                                        </telerik:RadNumericTextBox>
                                    </ItemTemplate>
                                </telerik:GridTemplateColumn>
                                </Columns>
                            </MasterTableView>
                            <FilterMenu EnableTheming="true">
                                <CollapseAnimation Duration="200" Type="OutQuint" />
                            </FilterMenu>
                        </telerik:RadGrid>
