RadCartesianChart LinearAxis DateFormat Germany?

[BerndR]

Hi,

i found a sample:

    <Window.Resources>
        <local:DoubleToDateTimeLabelConverter x:Key="DoubleToDateTimeLabelConverter" />
    </Window.Resources>
    <Grid>
        <telerik:RadCartesianChart>
            <telerik:RadCartesianChart.HorizontalAxis>
                <telerik:LinearAxis>
                    <telerik:LinearAxis.LabelTemplate>
                        <DataTemplate>
                            <TextBlock Text="{Binding StringFormat='h:MM tt', Converter={StaticResource DoubleToDateTimeLabelConverter}}" />
                        </DataTemplate>
                    </telerik:LinearAxis.LabelTemplate>
                </telerik:LinearAxis>
            </telerik:RadCartesianChart.HorizontalAxis>

            <telerik:RadCartesianChart.VerticalAxis>
                <telerik:CategoricalAxis />
            </telerik:RadCartesianChart.VerticalAxis>

            <telerik:LineSeries CategoryBinding="City" ValueBinding="StartTimeOA" ItemsSource="{Binding}" />
        </telerik:RadCartesianChart>
    </Grid>

        public MainWindow()
        {
            InitializeComponent();

            var Items = new ObservableCollection<PlotItemViewModel>();
            var dateTime = DateTime.Now;
            Items.Add(new PlotItemViewModel() { City = "Atlanta", StartTime = dateTime.AddMinutes(5) });
            Items.Add(new PlotItemViewModel() { City = "Atlanta", StartTime = dateTime.AddMinutes(10), });
            Items.Add(new PlotItemViewModel() { City = "New York", StartTime = dateTime.AddMinutes(100), });
            Items.Add(new PlotItemViewModel() { City = "Miami", StartTime = dateTime.AddMinutes(120), });
            Items.Add(new PlotItemViewModel() { City = "Miami", StartTime = dateTime.AddMinutes(150), });
            Items.Add(new PlotItemViewModel() { City = "Savannah", StartTime = dateTime.AddMinutes(200), });
            Items.Add(new PlotItemViewModel() { City = "Birmingham", StartTime = dateTime.AddMinutes(250), });
            Items.Add(new PlotItemViewModel() { City = "New Orleans", StartTime = dateTime.AddMinutes(280), });

            this.DataContext = Items;
        }
    }

    public class PlotItemViewModel
    {
        public string City { get; set; }
        public DateTime StartTime { get; set; }
        public double StartTimeOA { get { return this.StartTime.ToOADate(); } }
    }

    public class DoubleToDateTimeLabelConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)
        {
            double doubleValue = double.Parse(value.ToString());
            return DateTime.FromOADate(doubleValue);
        }

        public object ConvertBack(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

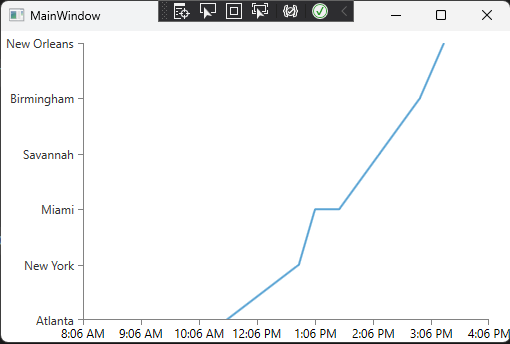

The Result is:

Here is the Dateformat "us-US" (10:05 AM / 4:06 PM) but i need German "de-DE" (10:05 / 16:06) !

Have anyone a idea how i can do this?

Best regards

Bernd





[Martin Ivanov]

Hello Bernd,

To achieve your requirement, you can call ToString() with German culture info in the Convert method. For example:

public object Convert(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)
{
	double doubleValue = double.Parse(value.ToString());
	return DateTime.FromOADate(doubleValue).ToString(new CultureInfo("de-DE"));
}

Regards,
Martin Ivanov
Progress Telerik

[BerndR]

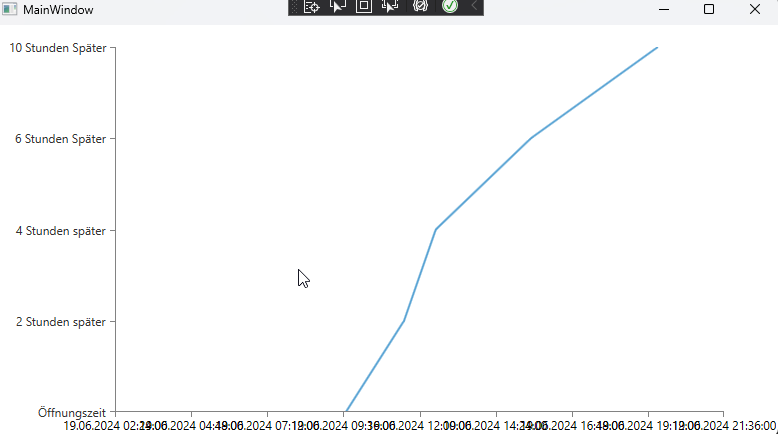

Nearly :-)

Now i need only the Time ;-)




[BerndR]

I got it!

return DateTime.FromOADate(doubleValue).ToString("HH:mm", new CultureInfo("de-DE"));

Thanks a lot :-)

[BerndR]

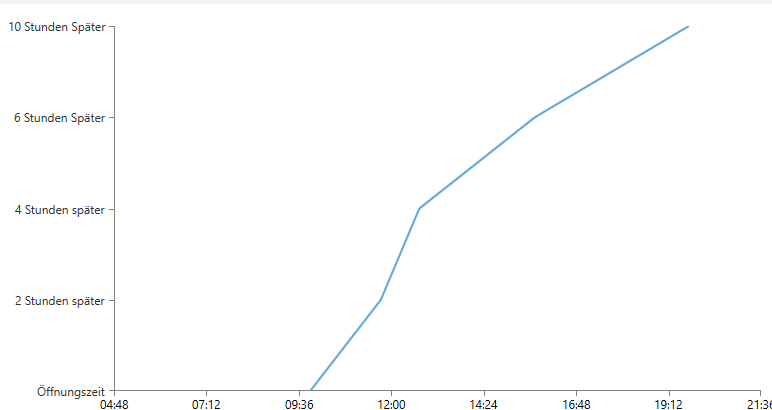

Now i have for me the right time :-)

[Martin Ivanov]

Great to hear that. Thanks for sharing your solution.
