Rad Grid CellDoubleClick event

[Bob]

I am trying to write some code for the cellDoubleClick event, but it seems that it only fires if the cells column is readonly.  Is there a way around this?  It looks like the first click will open the cell up for editing and the second click is ignored.  I want to have different code run for a single click  or a double click event.

[Richard Slade]

Hi Bob,

This happens because when you click a cell that is not read only as you rightly said it goes into edit mode. You are then no longer clicking on the cell you are clicking on the textbox editor so the click event is being handled there instead.

What is the goal you are trying to get to, and perhaps I can help find a suitable way around it for you.
Thanks
Richard

[Emanuel Varga]

Hello Bob,

Even if the grid is editable, you can double click on the cell and raise the CellDoubleClick event, please take a look at the following example:

using System;
using System.ComponentModel;
using System.Drawing;
using System.Windows.Forms;
using Telerik.WinControls.UI;

public partial class Form1 : Form
{
    private RadGridView radGridView1;

    private RadTextBox radTextBox1;

    public Form1()
    {
        InitializeComponent();
        this.Size = new Size(600, 600);
        this.Controls.Add(radGridView1 = new RadGridView());
        radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
        radGridView1.Dock = DockStyle.Fill;

        this.Controls.Add(radTextBox1 = new RadTextBox());
        radTextBox1.Dock = DockStyle.Bottom;
        radTextBox1.Multiline = true;
        radTextBox1.MinimumSize = new Size(0, 200);
        radTextBox1.Clear();
        radTextBox1.AutoScroll = true;
        radGridView1.CellClick += new GridViewCellEventHandler(radGridView1_CellClick);
        radGridView1.CellDoubleClick += new GridViewCellEventHandler(radGridView1_CellDoubleClick);
    }

    protected override void OnLoad(EventArgs e)
    {
        base.OnLoad(e);
        radGridView1.DataSource = new TestsCollection();
    }

    void radGridView1_CellDoubleClick(object sender, GridViewCellEventArgs e)
    {
        radTextBox1.Text += DateTime.Now.ToString() + ": CellDoubleClick called" + Environment.NewLine;
    }

    void radGridView1_CellClick(object sender, GridViewCellEventArgs e)
    {
        radTextBox1.Text += DateTime.Now.ToString() + ": CellClick called" + Environment.NewLine;
    }
}

public class Test
{
    public int Id
    {
        get;
        set;
    }

    public string Name
    {
        get;
        set;
    }

    public Test(int id, string name)
    {
        this.Id = id;
        this.Name = name;
    }
}

public class TestsCollection : BindingList<Test>
{
    public TestsCollection()
    {
        for (int i = 0; i < 10; i++)
        {
            this.Add(new Test(i, "Name" + i));
        }
    }
}

Hope this helps, if you have any other questions or comments, please let me know,

Best Regards,
Emanuel Varga

Telerik WinForms MVP

[Richard Slade]

Hi Emanuel,

I don't beleive that this will be the case,. Can you try the following:

• Launch the program
• Double click on a cell
• the cell click event and double click event are raised and the cell is put into edit mode
• Double click on another cell, neither event is raised
• Click on a header to end edit
• The cell click is raised
• Double click on a cell, both events are raised, cell is in edit
• Double click on another cell, no events are raised

Bob, let me know your goal and I will do my best to help
Thanks
Richard

[Emanuel Varga]

Hello Richard,

That's why i added the textbox there, so you can see exactly what happens and when.

Best Regards,
Emanuel Varga

Telerik WinForms MVP

[Richard Slade]

Hi Emanuel,

But that's exactly my point. Bob has mentioned he would like to perform different actions on CellClick than CellDoubleClick.
Richard

[Bob]

Here is exactly what I am trying to do.  I have a datagrid that our users enter data on.  If the user double clicks on a cell, todays date is automatically entered.  If they single click on it, they can type in the cell as needed (maybe to enter a different date).  This worked when we were using the standard .Net datagrid, but the Telerik grid will not allow this since the double click event will not fire if the cell is not readonly.  If I set readonly to false, the first click on the cell opens it up for editing and the second click is ignored.

Can I bind an event to the textbox editor of the cell?

[Richard Slade]

Hello Bob,

Thanks for writing back. As you are using Dates in your RadgridView, I'd suggest you use a GridViewDateTimeColumn, rather than a GridViewTextBoxColumn which from your description I think you are currently using. With a GridViewDateTimeColumn you are able to set a NullValue so if any of your data does not have a Date value set then the grid will automatically set the date value to be the null value.

This will also do away with the Single Click / Double Click scenario and allow users to pick the date they wish and still pick a date from a calendar.

this link details more information on the GridViewDateTimeColumn

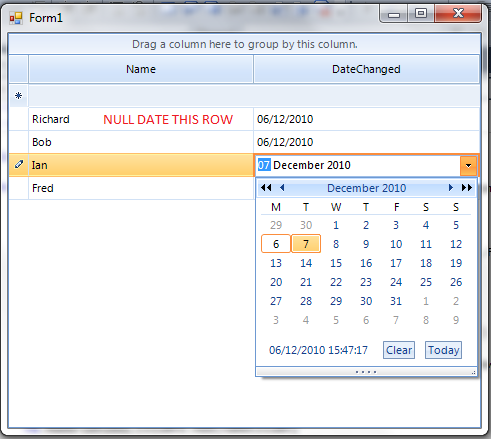

And here is a sample that shows the first row has an automatic date of today, even though the data for that cell is null.

Imports Telerik.WinControls.UI
Imports System.ComponentModel

Public Class Form1

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Me.RadGridView1.MultiSelect = True
        Me.RadGridView1.AllowRowResize = False
        Me.RadGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill
        Me.RadGridView1.AutoGenerateColumns = False
        Me.RadGridView1.AllowAddNewRow = True

        Dim nameColumn As New GridViewTextBoxColumn("Name")
        Dim dateChangedColumn As New GridViewDateTimeColumn("DateChanged")

        dateChangedColumn.NullValue = New DateTime(Now.Year, Now.Month, Now.Day)
        dateChangedColumn.FormatString = "{0:dd/MM/yyyy}"


        Me.RadGridView1.Columns.Add(nameColumn)
        Me.RadGridView1.Columns.Add(dateChangedColumn)

        Dim rowInfo As GridViewRowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Richard"
        rowInfo.Cells(1).Value = Nothing ' Will be set to default value (today)
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Bob"
        rowInfo.Cells(1).Value = Now
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Ian"
        rowInfo.Cells(1).Value = Now.AddDays(1)
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Fred"
        rowInfo.Cells(1).Value = Now.AddDays(4)


    End Sub
End Class

hope that helps, but just let me know if you have any further questions, and I'll do my best
to help
Thanks
Richard

[Bob]

OK.  So the bottom line is that I cannot get the double click event to fire unless the cell is readonly.  They don't want to use the date picker because it takes too long.  They just want to double click and have the date populate.  I will have to come up with something else.

[Richard Slade]

Hi Bob,

In that case, I will look into an alternative solution for you if you have to use a GridViewTextBoxColumn. I will get back to you as soon as possible.

All the best
Richard

[Richard Slade]

Hi Bob,

I don't think this is quite right yet, and it's not the cleanest solution, but have a go with this. It does seem to work if you double click on a cell it enters the date, and single clicking on a cell puts it just into edit mode. It's just a grid on a form.

Imports Telerik.WinControls.UI
Imports System.ComponentModel

Public Class Form1

    Private WithEvents m_BackgroundWorker As New BackgroundWorker()
    Private m_DateChangedColumn As GridViewTextBoxColumn

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Me.RadGridView1.MultiSelect = True
        Me.RadGridView1.AllowRowResize = False
        Me.RadGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill
        Me.RadGridView1.AutoGenerateColumns = False
        Me.RadGridView1.AllowAddNewRow = True

        Dim nameColumn As New GridViewTextBoxColumn("Name")
        m_DateChangedColumn = New GridViewTextBoxColumn("DateChanged")

        m_DateChangedColumn.FormatString = "{0:dd/MM/yyyy}"
        m_DateChangedColumn.ReadOnly = True

        Me.RadGridView1.Columns.Add(nameColumn)
        Me.RadGridView1.Columns.Add(m_DateChangedColumn)

        Dim rowInfo As GridViewRowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Richard"
        rowInfo.Cells(1).Value = Nothing
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Bob"
        rowInfo.Cells(1).Value = Nothing
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Ian"
        rowInfo.Cells(1).Value = Now.AddDays(1)
        rowInfo = Me.RadGridView1.Rows.AddNew()
        rowInfo.Cells(0).Value = "Fred"
        rowInfo.Cells(1).Value = Now.AddDays(4)

        AddHandler m_BackgroundWorker.RunWorkerCompleted, AddressOf BackgroundWorker_RunworkCompleted
    End Sub

    Private Sub BackgroundWorker_DoWork(ByVal sender As System.Object, ByVal e As System.ComponentModel.DoWorkEventArgs) Handles m_BackgroundWorker.DoWork
        Threading.Thread.Sleep(300)
    End Sub

    Private Sub BackgroundWorker_RunworkCompleted(ByVal sender As Object, ByVal e As RunWorkerCompletedEventArgs)
        If Me.RadGridView1.CurrentCell.ColumnInfo.Name = "DateChanged" Then
            m_DateChangedColumn.ReadOnly = False
            Me.RadGridView1.CurrentCell.RowInfo.Cells("DateChanged").BeginEdit()
        End If
    End Sub

    Private Sub RadGridView1_CellClick(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.GridViewCellEventArgs) Handles RadGridView1.CellClick
        If Me.RadGridView1.CurrentCell.ColumnInfo.Name = "DateChanged" Then

            m_BackgroundWorker.RunWorkerAsync()
        End If
    End Sub

    Private Sub RadGridView1_CellDoubleClick(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.GridViewCellEventArgs) Handles RadGridView1.CellDoubleClick
        If Me.RadGridView1.CurrentCell.ColumnInfo.Name = "DateChanged" Then

            m_DateChangedColumn.ReadOnly = False
            If e.Row.Cells("DateChanged").Value Is Nothing Then
                e.Row.Cells("DateChanged").Value = Now.ToString()
            End If
            e.Row.Cells("DateChanged").BeginEdit()
        End If
    End Sub

    Private Sub RadGridView1_CellEndEdit(ByVal sender As System.Object, ByVal e As Telerik.WinControls.UI.GridViewCellEventArgs) Handles RadGridView1.CellEndEdit
        m_DateChangedColumn.ReadOnly = True
    End Sub

End Class

Hope this helps, but let me know if you need any more information
Richard

[Bob]

Thanks.  This does exactly what I need it to do.  I know it is a little unconventional, but my users will be very happy.

Thanks again

Bob

[Richard Slade]

You're welcome Bob. Pleased to help. Please remember to mark as answer so others can find the solution too.
All the best
Richard

[Brad]

Hi Bob, Richard and Emanuel Varga

My clients need to double click and open a reference form as they are editing values in a grid. So, I worked through handling CellDoubleClick when Rad GridView is not in Read Only mode by combining your examples and the one I found in this thread: RadTextBoxEditor Doubleclick not firing

To do it I add a generic double click event handler to the Cell Editor base control in the Cell Begin Edit event. The generic event calls the Cell Double Click event to mimic double clicks in Read Only mode. The code can handle Text and ComboBox columns, support for other columns was not required in my project.

My example and project uses RadControls v.2011.1.11.419

public partial class Form1 : Form
{
    private RadGridView radGridView1;
    private RadTextBox radTextBox1;

    bool isTextEditorSetup;
    bool isComboBoxEditorSetup;

    public Form1()
    {
        InitializeComponent();

        this.Size = new Size(600, 600);
        this.Controls.Add(radGridView1 = new RadGridView());
        radGridView1.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;
        radGridView1.Dock = DockStyle.Fill;

        radGridView1.ReadOnly = false;

        this.Controls.Add(radTextBox1 = new RadTextBox());
        radTextBox1.Dock = DockStyle.Bottom;
        radTextBox1.Multiline = true;
        radTextBox1.MinimumSize = new Size(0, 200);
        radTextBox1.Clear();
        radTextBox1.AutoScroll = true;
        radGridView1.CellBeginEdit += new GridViewCellCancelEventHandler(radGridView1_CellBeginEdit);
        radGridView1.CellDoubleClick += new GridViewCellEventHandler(radGridView1_CellDoubleClick);
    }

    protected override void OnLoad(EventArgs e)
    {
        base.OnLoad(e);
        radGridView1.DataSource = new TestsCollection();
    }

    private void radGridView1_CellBeginEdit(object sender, GridViewCellCancelEventArgs e)
    {
        if (!isComboBoxEditorSetup && e.Column is GridViewComboBoxColumn)
        {
            //This Event Handler applies to columns of type GridViewComboBoxColumn
            ((e.ActiveEditor as RadDropDownListEditor).EditorElement as RadDropDownListEditorElement).DoubleClick += new EventHandler(editor_DoubleClick);
            isComboBoxEditorSetup = true;
        }
        if (!isTextEditorSetup && e.Column is GridViewTextBoxColumn)
        {
            //This Event Handler applies to columns of type GridViewTextBoxColumn
            ((e.ActiveEditor as RadTextBoxEditor).EditorElement as RadTextBoxEditorElement).TextBoxItem.HostedControl.DoubleClick += new EventHandler(editor_DoubleClick);
            isTextEditorSetup = true;
        }
    }

    private void editor_DoubleClick(object sender, EventArgs e)
    {
        radTextBox1.Text += DateTime.Now.ToString() + ": Form1_DoubleClick called" + Environment.NewLine;
        //Construct Arguments for CellDoubleClick
        GridViewCellEventArgs arg = new GridViewCellEventArgs(this.radGridView1.CurrentRow, this.radGridView1.CurrentColumn, this.radGridView1.ActiveEditor);
        radGridView1_CellDoubleClick(sender, arg);
    }

    private void radGridView1_CellDoubleClick(object sender, GridViewCellEventArgs e)
    {
        //return without doing anything if new row or one of the required double click cells is NULL.
        if (e.RowIndex == -1 || e.Row.Cells["Name"].Value == null || e.Row.Cells["Name"].Value == DBNull.Value)
            return;

        radTextBox1.Text += DateTime.Now.ToString() + ": radGridView1_CellDoubleClick called: " + e.Row.Cells["Name"].Value + Environment.NewLine;
    }

}

public class Test
{
    public int Id
    {
        get;
        set;
    }

    public string Name
    {
        get;
        set;
    }

    public Test(int id, string name)
    {
        this.Id = id;
        this.Name = name;
    }
}

public class TestsCollection : BindingList<Test>
{
    public TestsCollection()
    {
        for (int i = 0; i < 10; i++)
        {
            this.Add(new Test(i, "Name" + i));
        }
    }
}

[Martin Vasilev]

Hello Brad,

Thank you for sharing your code and sending us the sample project. For the convenience of the customers, who will find your solution useful, I am adding a link to your the code library thread:
Cell Double Click when ReadOnly = false, for Text and ComboBox Columns

Let me know if you have any other questions.

Kind regards,
Martin Vasilev
the Telerik team

[Hrishikesh]

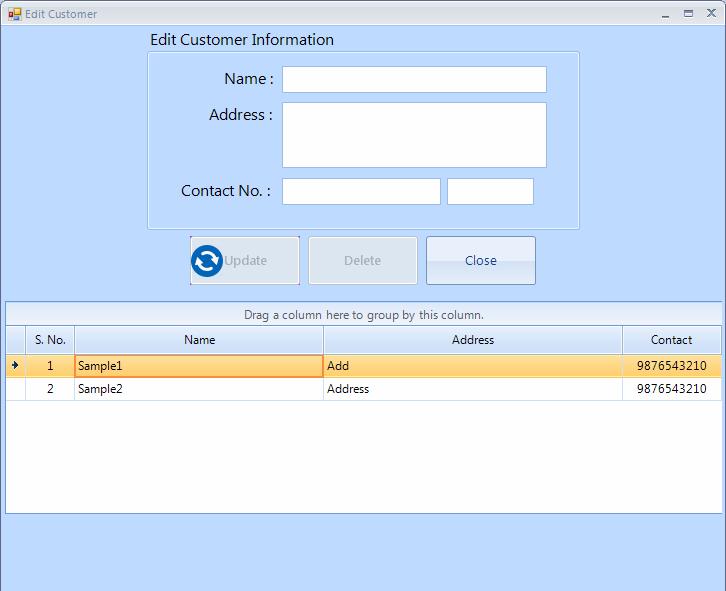

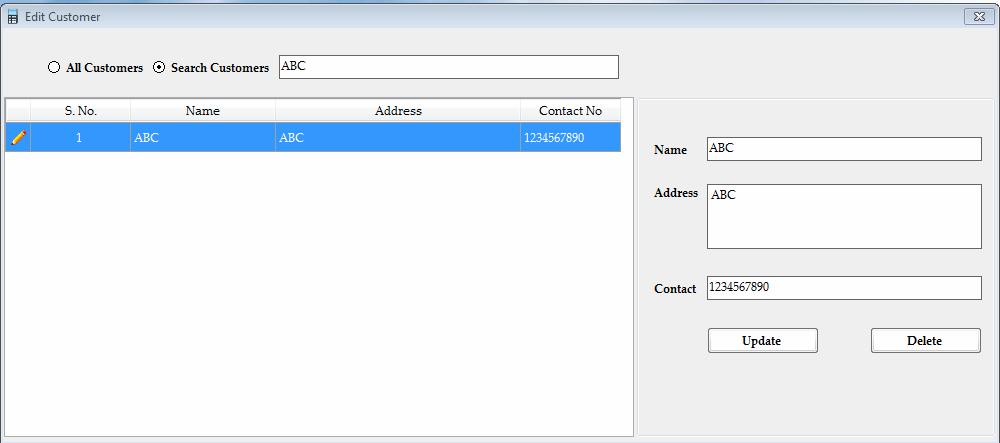

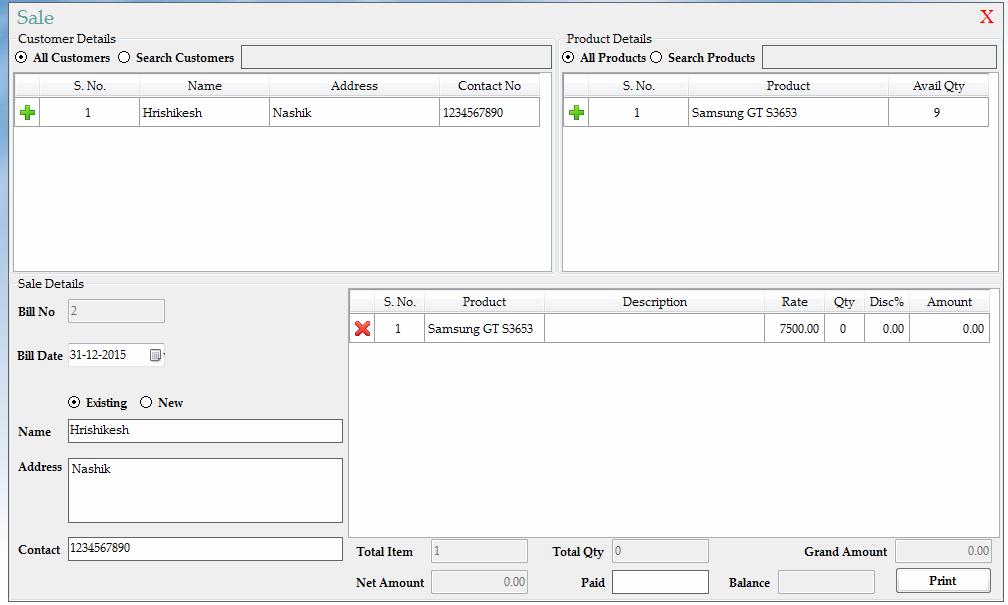

How to Display record RadGridView Row Double Click and display to Rad text box?

see attached file

[Hrishikesh]

How to Display record RadGridView Row Double Click and display to Rad text box?  which use code in vb.net 2010

[Stefan]

Hi Hrishikesh,

Let me start by mentioning that this forum concerns Telerik UI for WinForms and I will address your question for this product.

What you can do is to place RadGridView and RadDataLayout on a Form. Then you can subscribe to the CellDoubleClick event of RadGridView, and in the handler set the DataSource for RadDataLayout and it will automatically populate itself with the needed editors according to the row's fields:

Private Sub radGridView1_CellDoubleClick(sender As Object, e As GridViewCellEventArgs)
    dataLayout.DataSource = e.Row.DataBoundItem
End Sub

Alternatively, instead of using the double click event, you can use CurrentRowChanged, and this way, every time the user changes the current row, the data layout control will be updated.

I hope this helps.

Regards,
Stefan
Telerik

[Hrishikesh]

Sir

Please send sample project

Thanks for the support

[Dess | Tech Support Engineer, Principal]

Hello Hrishikesh,

Thank you for writing back.

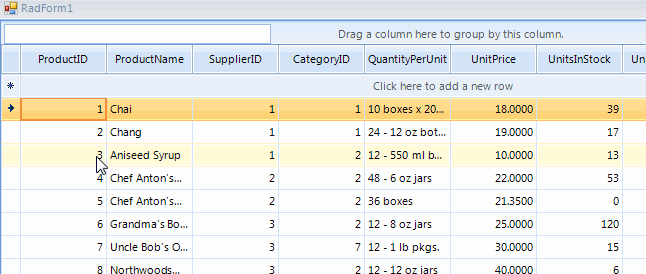

By default, double-clicking over a cell will activate the editor. When the editor is active and you double click on another cell, the first click will activate the editor for the new cell and the second click will be over the editor itself. Hence, you can either cancel the RadGridViewView.CellBeginEdit event or set the  BeginEditMode property to RadGridViewBeginEditMode.BeginEditProgrammatically.

While working on this thread, I have encountered a rendering issue in RadDataLayout.

I have logged it in our feedback portal. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - feedback item.

Currently, the possible solution that I can suggest is to use RadDataEntry instead of RadDataLayout. You can find attached a sample project.

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Telerik

[Hrishikesh]

Sir,

I am not using c#, I am using vb code. Pls send vb coded project...!

example is

Private Sub RadGridView1_DoubleClick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles

RadGridView1.DoubleClick
        txtID = RadGridView1.CurrentRow.Cells(0).Value
        txtCustName = RadGridView1.CurrentRow.Cells(1).Value
        txtAddress = RadGridView1.CurrentRow.Cells(2).Value
        txtContact = RadGridView1.CurrentRow.Cells(3).Value
    End Sub

 Pls see attached screenshot....!



[Dess | Tech Support Engineer, Principal]

Hello Hrishikesh,

Thank you for writing back.

You can find attached a sample project in VB.NET.

Feel free to use our online code converter in future which converts from C# to VB and from VB to C#.

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Telerik

[Hrishikesh]

How add image row header button ?

and how to use header button?

pls attach sample in vb.net

see attached screen shot...!

[Dess | Tech Support Engineer, Principal]

Hello Hrishikesh,

Thank you for writing back.

By default, GridRowHeaderCellElements are used to indicate the current row in a RadGridView with a specific arrow image. You can use the ViewCellFormatting event and apply the desired image to the GridRowHeaderCellElement. You can find a sample demonstrating how to use the ViewCellFormatting in the following link: http://www.telerik.com/help/winforms/gridview-cells-formatting-cells.html

I hope this information helps. If you have any additional questions, please let me know.
Regards,
Dess
Telerik

[Karthikeyan]

[quote]Dess said:Hello Hrishikesh,

Thank you for writing back.

You can find attached a sample project in VB.NET.

Feel free to use our online code converter in future which converts from C# to VB and from VB to C#.

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Telerik

[/quote]

the attachment file is not opening my visual studio 2010.

it gives design time error

please help me with this

[Karthikeyan]

[quote]Hrishikesh said:How to Display record RadGridView Row Double Click and display to Rad text box?  which use code in vb.net 2010[/quote]



Have you got solution for This? if yes then please share the code.

Thanks in Advance ;-)

[Dess | Tech Support Engineer, Principal]

Hello,

Thank you for writing.

I have attached a sample VS2010 project demonstrating how to handle the CellDoubleClick event and assign the cell's text to RadTextBox. The provided gif file illustrates the behavior on my end.

I hope this information helps. Should you have further questions I would be glad to help.

 Regards,
Dess
Telerik by Progress

[Denius]

Hello everyone, when I double-click on the header, it opens up my form, I do not want it.
Yes, i have event CellDoubleClik on the grid, but I 2x click on the header , and open my form (stupid)
How to fix it?

Tnx a lot

[Denius]

this is solution

  GridViewRowInfo info = this.yourGridName.CurrentRow;
            if (info != null && e.RowIndex >= 0)

{

}

[Dess | Tech Support Engineer, Principal]

Hello, Goran,

Thank you for writing.

I am glad that the problem you were facing is now resolved. An alternative solution for detecting whether the user clicks the header row is to check whether the GridViewCellEventArgs.Row is GridViewTableHeaderRowInfo.

Should you have further questions I would be glad to help.

 Regards,
Dess
Progress Telerik
