problem with invisible columns in grid hierarchy

2 Answers 92 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Tibor asked on 17 Nov 2010, 06:27 PM

Hello I have some problem with nestedview template and I hope that I find the answer here.

In the attached code I have a sample with my problem.
I have a hierarchical grid made up with NestedViewTemplate (no detail tables)
In the detail table i have two columns set to visible="false". But they are binded manualy(via eval) in a nested view template. Also I have defined a norecord template.

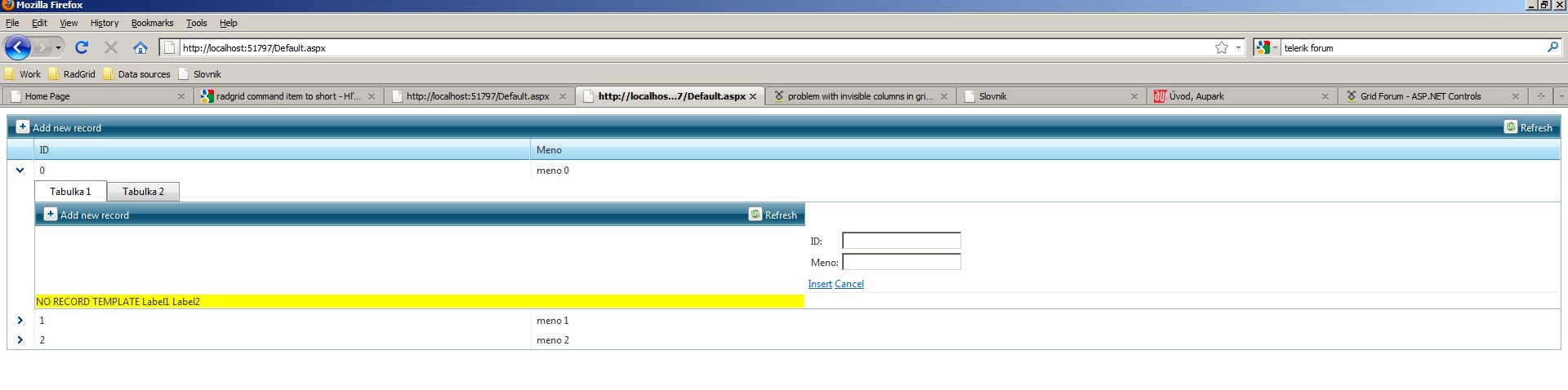

My problem is, that when I push the insert button, the grid style goes wrong. There is still visible a part of norecord template, and the edit form is in the right side of the grid.

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title></title>

</head>

<body>

<form id="form1" runat="server">

<telerik:RadScriptManager ID="RadScriptManager1" runat="server">

</telerik:RadScriptManager>

<div>

<telerik:RadGrid

DataSourceID="ObjectDataSource1"

Skin="Vista"

GridLines="None"

AutoGenerateColumns="False"

ID="RadGrid1"

runat="server">

<MasterTableView

CommandItemDisplay="Top"

DataKeyNames="ID"

EnableNoRecordsTemplate="true"

DataSourceID="ObjectDataSource1" >

<NestedViewTemplate>

<asp:Panel runat="server" ID="InnerContainer" Visible="false">

<telerik:RadTabStrip ID="RadTabStrip1" MultiPageID="mpLocalizationDataSection"

runat="server" SelectedIndex="2" Skin="Vista">

<Tabs>

<telerik:RadTab

runat="server"

Text="Tabulka 1"

PageViewID="pgv" >

</telerik:RadTab>

<telerik:RadTab

runat="server"

Text="Tabulka 2"

PageViewID="pgv2" >

</telerik:RadTab>

</Tabs>

</telerik:RadTabStrip>

<telerik:RadMultiPage

runat="server"

ID="mpLocalizationDataSection"

SelectedIndex="2"

RenderSelectedPageOnly="false" >

<telerik:RadPageView runat="server" ID="pgv">

<telerik:RadGrid

ID="RadGrid2"

Width="100%"

DataSourceID="ObjectDataSource2"

Skin="Vista"

GridLines="None"

AutoGenerateColumns="false"

runat="server" onprerender="RadGrid2_PreRender">

<MasterTableView

CommandItemDisplay="Top"

AutoGenerateColumns="false"

DataKeyNames="ID"

Width="100%"

ExpandCollapseColumn-Display="false"

ExpandCollapseColumn-Visible="false"

EnableNoRecordsTemplate="true"

DataSourceID="ObjectDataSource2" >

<Columns>

<telerik:GridBoundColumn

HeaderText="ID"

Visible="false"

DataField="ID" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn

HeaderText="Meno"

Visible="false"

DataField="Name" >

</telerik:GridBoundColumn>

</Columns>

<NestedViewTemplate>

<asp:Panel ID="NesteViewPanel" runat="server">

<asp:Label

runat="server"

ID="lblLocationPremisesTypeCode"

Text='<%# (Eval("ID")) %>' >

</asp:Label>

<asp:Label

runat="server"

ID="Label3"

Text='<%# (Eval("Name")) %>' >

</asp:Label>

</asp:Panel>

</NestedViewTemplate>

</MasterTableView>

</telerik:RadGrid>

<asp:ObjectDataSource

ID="ObjectDataSource2"

DataObjectTypeName="TestRadgridInsert.DTO2"

TypeName="TestRadgridInsert.DS1"

SelectMethod="Select2"

runat="server">

</asp:ObjectDataSource>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="pgv2">

text

</telerik:RadPageView>

</telerik:RadMultiPage>

</asp:Panel>

</NestedViewTemplate>

<Columns>

<telerik:GridBoundColumn

HeaderText="ID"

DataField="ID" >

</telerik:GridBoundColumn>

<telerik:GridBoundColumn

HeaderText="Meno"

DataField="Name" >

</telerik:GridBoundColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

<asp:ObjectDataSource

ID="ObjectDataSource1"

DataObjectTypeName="TestRadgridInsert.DTO1"

TypeName="TestRadgridInsert.DS1"

SelectMethod="Select1"

runat="server">

</asp:ObjectDataSource>

</div>

</form>

</body>

</html>

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using Telerik.Web.UI;

namespace TestRadgridInsert

{

public partial class _Default : System.Web.UI.Page

{

protected void Page_Load(object sender, EventArgs e)

{

RadGrid1.ItemCreated += new Telerik.Web.UI.GridItemEventHandler(RadGrid1_ItemCreated);

RadGrid1.PreRender += new EventHandler(RadGrid1_PreRender);

RadGrid1.ItemCommand += new GridCommandEventHandler(RadGrid1_ItemCommand);

}

void RadGrid1_ItemCommand(object sender, GridCommandEventArgs e)

{

if (e.CommandName == RadGrid.ExpandCollapseCommandName)

{

((GridDataItem)e.Item).ChildItem.FindControl("InnerContainer").Visible = !e.Item.Expanded;

}

void RadGrid1_PreRender(object sender, EventArgs e)

{

if (!Page.IsPostBack)

{

RadGrid1.MasterTableView.Items[0].Expanded = true;

RadGrid1.MasterTableView.Items[0].ChildItem.FindControl("InnerContainer").Visible = true;

}

void RadGrid1_ItemCreated(object sender, Telerik.Web.UI.GridItemEventArgs e)

{

if (e.Item is GridNestedViewItem)

{

e.Item.FindControl("InnerContainer").Visible = ((GridNestedViewItem)e.Item).ParentItem.Expanded;

}

protected void RadGrid2_PreRender(object sender, EventArgs e)

{

RadGrid grid = sender as RadGrid;

if (grid.MasterTableView.Items.Count > 0)

{

grid.MasterTableView.Items[0].Expanded = true;

GridExpandColumn collapseCol = grid.MasterTableView.ExpandCollapseColumn as GridExpandColumn;

//collapseCol.Display = false;

}

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

namespace TestRadgridInsert

{

public class DS1

{

public List<DTO1> Select1()

{

List<DTO1> list = new List<DTO1>();

for (int i = 0; i < 3; i++)

{

DTO1 dto1 = new DTO1();

dto1.ID = i;

dto1.Name = "meno " + i.ToString();

list.Add(dto1);

}

return list;

}

public List<DTO2> Select2()

{

List<DTO2> list = new List<DTO2>();

//for (int i = 0; i < 1; i++)

//{

// DTO2 dto2 = new DTO2();

// dto2.ID = i;

// dto2.Name = "meno " + i.ToString();

// list.Add(dto2);

//}

return list;

}

public void Insert2(DTO2 item)

{

}

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

namespace TestRadgridInsert

{

public class DTO1

{

public DTO1()

{

}

public int ID { get; set; }

public string Name { get; set; }

}

public class DTO2

{

public DTO2()

{

}

public int ID { get; set; }

public string Name { get; set; }

}

Thank you very much for answers and some solution.

With regards

Tibor

2 Answers, 1 is accepted

answered on 23 Nov 2010, 04:06 PM

Hi Tibor,

You should have at least one column visible in the nested grid. Otherwise you will not be able to expand the nested view template (the one with the two labels inside) because you will not see any items in the grid. The misalignment that you see is due to the lack of visible column in the inner grid, which leads to the effect that the only column left, which is the expand collapse column, stretches to occupy the whole available place. To fix the problem you need to remove the settings for visible=false and display=false for the expand collapse column and to set visible=true for the second column. This way the insert form will be aligned properly. Here is the code snippet for the changes:

<MasterTableView CommandItemDisplay="Top" AutoGenerateColumns="false" DataKeyNames="ID"

Width="100%" ExpandCollapseColumn-Display="false" ExpandCollapseColumn-Visible="false"

EnableNoRecordsTemplate="true" DataSourceID="ObjectDataSource2">

<Columns>

<telerik:GridBoundColumn HeaderText="ID" Visible="true" DataField="ID">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn HeaderText="Meno" Visible="true" DataField="Name">

</telerik:GridBoundColumn>

</Columns>

All the best,
Marin
