I have a report that is being exported to PDF for printing. This report has some charts in addition to some regular text.
The text in the charts is very "fuzzy" and pixelated. as if it was originally rendered at a much smaller resolution/dpi and then zoomed in. compared to other text that is the same size on the page it's terrible.

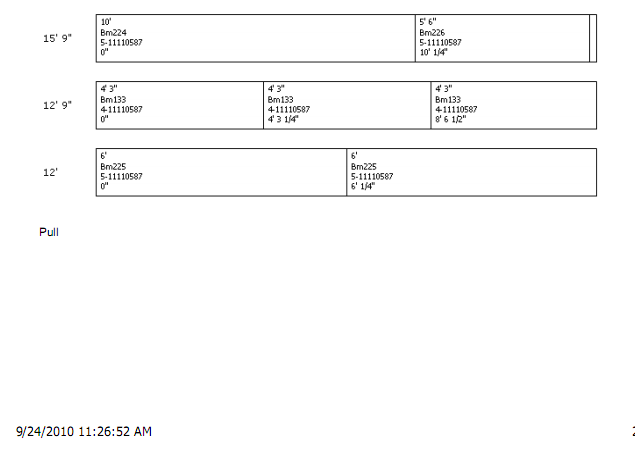

I'm hoping that it's something I'm doing wrong as I create the report/charts. I have attached a sample report. this is using a horizontal stacked bar chart to produce these "diagrams".

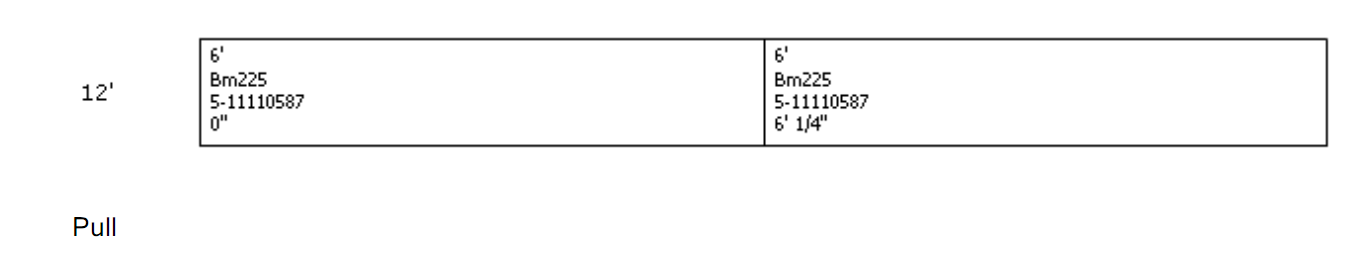

The second screenshot really highlights the difference.
The original pdf is available at http://www.zfootprint.com/sample1.pdf.
I can provide sample code/report if necessary.
The text in the charts is very "fuzzy" and pixelated. as if it was originally rendered at a much smaller resolution/dpi and then zoomed in. compared to other text that is the same size on the page it's terrible.
I'm hoping that it's something I'm doing wrong as I create the report/charts. I have attached a sample report. this is using a horizontal stacked bar chart to produce these "diagrams".
The second screenshot really highlights the difference.
The original pdf is available at http://www.zfootprint.com/sample1.pdf.
I can provide sample code/report if necessary.
9 Answers, 1 is accepted
0
Hello Joe,
Currently the chart image is rendered as a bitmap with the resolution of the screen which is usually 96dpi. The only way to solve the problem with the print quality in PDF is to render the chart in a vector format. This request is already in our TODO list but will take some time to implement as this is not a trivial task especially for the chart.
We apologize for the temporary inconvenience.
Best wishes,
Steve
the Telerik team
Currently the chart image is rendered as a bitmap with the resolution of the screen which is usually 96dpi. The only way to solve the problem with the print quality in PDF is to render the chart in a vector format. This request is already in our TODO list but will take some time to implement as this is not a trivial task especially for the chart.
We apologize for the temporary inconvenience.
Best wishes,
Steve
the Telerik team
Do you want to have your say when we set our development plans?
Do you want to know when a feature you care about is added or when a bug fixed?
Explore the
Telerik Public Issue Tracking
system and vote to affect the priority of the items
0
Joe
Top achievements
Rank 1
Rank 1
answered on 28 Sep 2010, 02:56 PM
wouldn't it be an easier bandaid to put in an option to set the dpi for rastor images when exporting to pdf? or just rastor at 200dpi all the time? I believe that would improve the problem and take a lot less time to implement.
0
John S.
Top achievements
Rank 1
Rank 1
answered on 30 Dec 2010, 12:42 AM
Hello,
I am curious if this increase in resolution is a possibility?
Ideally a vector approach is prefered; however, I sense this will not happen anytime soon (although alot of what you guys do are not trivial tasks).
As this is a reporting solution, which in my experience results in actual printing, I find it odd that the ability to print a part of a report results in such a pixelated output. It seems the opposite case in which the copy text was pixelated and the chart printed crisp would not take years to resolve as this has taken.
Is it possible that this issue be looked at with a more focused response than, to paraphrase, 'its real hard'. As Joe mentioned a band-aid to this issue would be an ability to scale up the pixel count.
Thanks,
John
I am curious if this increase in resolution is a possibility?
Ideally a vector approach is prefered; however, I sense this will not happen anytime soon (although alot of what you guys do are not trivial tasks).
As this is a reporting solution, which in my experience results in actual printing, I find it odd that the ability to print a part of a report results in such a pixelated output. It seems the opposite case in which the copy text was pixelated and the chart printed crisp would not take years to resolve as this has taken.
Is it possible that this issue be looked at with a more focused response than, to paraphrase, 'its real hard'. As Joe mentioned a band-aid to this issue would be an ability to scale up the pixel count.
Thanks,
John
0
Jason
Top achievements
Rank 1
Rank 1
answered on 05 Jan 2011, 07:06 AM
This is a massive problem for printed output.
Hashtable settings = new Hashtable();
settings.Add("OutputFormat", "PDF");
settings.Add("DpiX", 300);
settings.Add("DpiY", 300);
... where a report chart also has its BitmapResolution set to 300 will result in jagged / pixelated output.
I agree that Vector would be ideal but a stop gap Raster at higher DPI is needed in the interim. Please crank up the hard-coded 96 dpi cap ... or better yet apply the BitmapResolution setting we set. If it is a performance problem ... please let us be responsible for throwing hardware at the problem if we crank up the DPI too far. In our case, we can wait all day for number crunching ... but we need the output to be razor sharp.
If we can't crank up the DPI via a property, could you expose this in an XML document, config file, or registry setting?
Thanks,
Jason
Hashtable settings = new Hashtable();
settings.Add("OutputFormat", "PDF");
settings.Add("DpiX", 300);
settings.Add("DpiY", 300);
... where a report chart also has its BitmapResolution set to 300 will result in jagged / pixelated output.
I agree that Vector would be ideal but a stop gap Raster at higher DPI is needed in the interim. Please crank up the hard-coded 96 dpi cap ... or better yet apply the BitmapResolution setting we set. If it is a performance problem ... please let us be responsible for throwing hardware at the problem if we crank up the DPI too far. In our case, we can wait all day for number crunching ... but we need the output to be razor sharp.
If we can't crank up the DPI via a property, could you expose this in an XML document, config file, or registry setting?
Thanks,
Jason
0
Hi guys,
We pushed a fix that corrects the behavior of the Chart report item and now you can use the BitmapResolution Property to define the resolution of the generated image in all formats inc. PDF. The fix is part of the internal build available in your accounts.
In the long term we consider the vector rendering of the Chart item in PDF as a better solution and it will definitely improve the quality of the generated documents. The strongest point of the vector graphics is that they can produce images scalable to any size and detail. In contrast the raster graphics (bitmaps) are resolution dependent and they cannot scale up to an arbitrary resolution without loss of apparent quality.
Thank you for the involvement.
All the best,
Steve
the Telerik team
We pushed a fix that corrects the behavior of the Chart report item and now you can use the BitmapResolution Property to define the resolution of the generated image in all formats inc. PDF. The fix is part of the internal build available in your accounts.
In the long term we consider the vector rendering of the Chart item in PDF as a better solution and it will definitely improve the quality of the generated documents. The strongest point of the vector graphics is that they can produce images scalable to any size and detail. In contrast the raster graphics (bitmaps) are resolution dependent and they cannot scale up to an arbitrary resolution without loss of apparent quality.
Thank you for the involvement.
All the best,
Steve
the Telerik team
0
John S.
Top achievements
Rank 1
Rank 1
answered on 04 Feb 2011, 09:47 PM
Steve,
Thank you very much on the follow up of this issue. I will give it a try. Hopefully, a vector implementation will be available in the foreseeable future; however, this update is sincerely appreciated.
John
Thank you very much on the follow up of this issue. I will give it a try. Hopefully, a vector implementation will be available in the foreseeable future; however, this update is sincerely appreciated.
John
0
John S.
Top achievements
Rank 1
Rank 1
answered on 25 Mar 2011, 05:54 AM
Hi,
This is just a follow-up regarding the resolution. I finally got to try things out and it looks MUCH better. Thank you.
I hope you guys are looking into the vector integration and interface (which I admittedly didn't get to play with much, but I am guessing it didn't change). Setting a chart up seems to be a difficult thing to do compared to some of the other features that exist.
Again, thank you so much for adding the resolution property.
Sincerely,
John
This is just a follow-up regarding the resolution. I finally got to try things out and it looks MUCH better. Thank you.
I hope you guys are looking into the vector integration and interface (which I admittedly didn't get to play with much, but I am guessing it didn't change). Setting a chart up seems to be a difficult thing to do compared to some of the other features that exist.
Again, thank you so much for adding the resolution property.
Sincerely,
John
0
Keith
Top achievements
Rank 1
Rank 1
answered on 23 Aug 2013, 04:19 PM
has this issue been resolved using the graph item?
0
John S.
Top achievements
Rank 1
Rank 1
answered on 23 Aug 2013, 06:25 PM
Hi Keith,
The newer Graph (vs Chart) control takes care of this issue. I have been using it with great results.
John S.
The newer Graph (vs Chart) control takes care of this issue. I have been using it with great results.
John S.
