Hi there.
We needed to upgrade Telerik Reporting on one of our projects due a bug (couldn't list all listboxes in a multiple dropdown).
So.. We did this:
- downloaded the new version. (to our Dev computers)
- uninstalled the old one Q2 something.
- installed the new one Q3.
- Used the Telerik Reporting - Upgrade Wizard function inside VS 2008 on the project.
- Worked fine on our machine.
- Published the project.
- Updated the code on the live server.

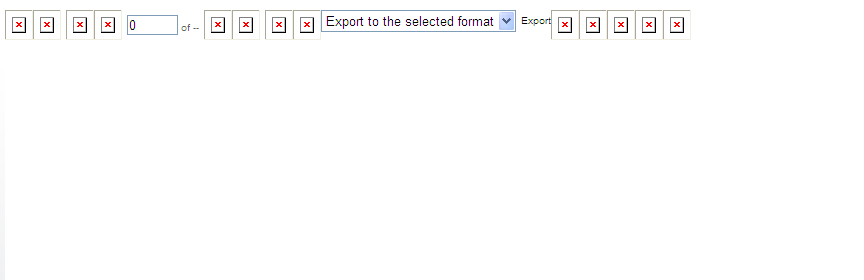

- Did get problems with the viewer. Couldn't load any data/design etc (see attachment)
- Even tried to install Q3 on the that live server.
Any suggestions of what it could be?
Thanks for any kind of help
Regards / Magnus
We needed to upgrade Telerik Reporting on one of our projects due a bug (couldn't list all listboxes in a multiple dropdown).
So.. We did this:
- downloaded the new version. (to our Dev computers)
- uninstalled the old one Q2 something.
- installed the new one Q3.
- Used the Telerik Reporting - Upgrade Wizard function inside VS 2008 on the project.
- Worked fine on our machine.
- Published the project.
- Updated the code on the live server.
- Did get problems with the viewer. Couldn't load any data/design etc (see attachment)
- Even tried to install Q3 on the that live server.
Any suggestions of what it could be?
Thanks for any kind of help
Regards / Magnus
2 Answers, 1 is accepted
0

Magnus
Top achievements
Rank 1
answered on 11 Jan 2010, 09:25 AM
<?xml version="1.0"?> |
<configuration> |
<configSections> |
<sectionGroup name="system.web.extensions" type="System.Web.Configuration.SystemWebExtensionsSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"> |
<sectionGroup name="scripting" type="System.Web.Configuration.ScriptingSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"> |
<section name="scriptResourceHandler" type="System.Web.Configuration.ScriptingScriptResourceHandlerSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication" /> |
<sectionGroup name="webServices" type="System.Web.Configuration.ScriptingWebServicesSectionGroup, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"> |
<section name="jsonSerialization" type="System.Web.Configuration.ScriptingJsonSerializationSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="Everywhere" /> |
<section name="profileService" type="System.Web.Configuration.ScriptingProfileServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication" /> |
<section name="authenticationService" type="System.Web.Configuration.ScriptingAuthenticationServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication" /> |
<section name="roleService" type="System.Web.Configuration.ScriptingRoleServiceSection, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" allowDefinition="MachineToApplication" /> |
</sectionGroup> |
</sectionGroup> |
</sectionGroup> |
<section name="openaccess" type="Telerik.OpenAccess.Config.ConfigSectionHandler, Telerik.OpenAccess.Config, Version=1.0.0.0, Culture=neutral, PublicKeyToken=7ce17eeaf1d59342" requirePermission="false" /> |
</configSections> |
<appSettings> |
???? |
</appSettings> |
<connectionStrings> |
<add name="ReportLibrary.Properties.Settings.????" connectionString="Data Source=????;Initial Catalog=????;Integrated Security=True" providerName="System.Data.SqlClient" /> |
</connectionStrings> |
<system.web> |
<httpRuntime maxRequestLength="102400" executionTimeout="3600" /> |
<!-- |
Set compilation debug="true" to insert debugging |
symbols into the compiled page. Because this |
affects performance, set this value to true only |
during development. |
--> |
<compilation debug="false"> |
<assemblies> |
<add assembly="System.Core, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" /> |
<add assembly="System.Data.DataSetExtensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" /> |
<add assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add assembly="System.Xml.Linq, Version=3.5.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" /> |
<add assembly="System.Design, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A" /> |
<add assembly="System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" /> |
<add assembly="System.Drawing.Design, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A" /> |
<add assembly="Telerik.ReportViewer.WebForms, Version=3.2.9.1104, Culture=neutral, PublicKeyToken=a9d7983dfcc261be" /> |
<add assembly="Telerik.Reporting, Version=3.2.9.1104, Culture=neutral, PublicKeyToken=a9d7983dfcc261be" /> |
</assemblies> |
</compilation> |
<!-- |
The <authentication> section enables configuration |
of the security authentication mode used by |
ASP.NET to identify an incoming user. |
--> |
<authentication mode="Forms"> |
<forms name="login" loginUrl="LogIn.aspx" /> |
</authentication> |
<authorization> |
<allow roles="????" /> |
<allow roles="????" /> |
<allow roles="????" /> |
<allow roles="????" /> |
<deny roles="????" /> |
<allow roles="????" /> |
<!--<deny users="*" />--> |
</authorization> |
<!-- |
The <customErrors> section enables configuration |
of what to do if/when an unhandled error occurs |
during the execution of a request. Specifically, |
it enables developers to configure html error pages |
to be displayed in place of a error stack trace. |
<customErrors mode="RemoteOnly" defaultRedirect="GenericErrorPage.htm"> |
<error statusCode="403" redirect="NoAccess.htm" /> |
<error statusCode="404" redirect="FileNotFound.htm" /> |
</customErrors> |
--> |
<pages> |
<controls> |
<add tagPrefix="asp" namespace="System.Web.UI" assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add tagPrefix="asp" namespace="System.Web.UI.WebControls" assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
</controls> |
</pages> |
<httpHandlers> |
<remove path="*.asmx" verb="*" /> |
<add path="*.asmx" verb="*" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" /> |
<add path="*_AppService.axd" verb="*" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" /> |
<add path="ScriptResource.axd" verb="GET,HEAD" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" /> |
<add path="Telerik.Web.UI.WebResource.axd" verb="*" type="Telerik.Web.UI.WebResource" validate="false" /> |
<add path="Telerik.Web.UI.DialogHandler.aspx" verb="*" type="Telerik.Web.UI.DialogHandler, Telerik.Web.UI, Version=2009.2.701.35, Culture=neutral, PublicKeyToken=121fae78165ba3d4" validate="false" /> |
<add path="Telerik.Web.UI.SpellCheckHandler.axd" verb="*" type="Telerik.Web.UI.SpellCheckHandler, Telerik.Web.UI, Version=2009.2.701.35, Culture=neutral, PublicKeyToken=121fae78165ba3d4" validate="false" /> |
<add verb="*" path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler, Telerik.Web.UI" /> |
<add type="Telerik.ReportViewer.WebForms.HttpHandler, Telerik.ReportViewer.WebForms, Version=3.2.9.1104, Culture=neutral, PublicKeyToken=a9d7983dfcc261be" path="Telerik.ReportViewer.axd" verb="*" validate="true" /> |
</httpHandlers> |
<httpModules> |
<add name="ScriptModule" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add name="RadUploadModule" type="Telerik.Web.UI.RadUploadHttpModule, Telerik.Web.UI" /> |
</httpModules> |
</system.web> |
<system.codedom> |
<compilers> |
<compiler language="c#;cs;csharp" extension=".cs" warningLevel="4" type="Microsoft.CSharp.CSharpCodeProvider, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"> |
<providerOption name="CompilerVersion" value="v3.5" /> |
<providerOption name="WarnAsError" value="false" /> |
</compiler> |
</compilers> |
</system.codedom> |
<!-- |
The system.webServer section is required for running ASP.NET AJAX under Internet |
Information Services 7.0. It is not necessary for previous version of IIS. |
--> |
<system.webServer> |
<validation validateIntegratedModeConfiguration="false" /> |
<modules> |
<remove name="ScriptModule" /> |
<add name="ScriptModule" preCondition="managedHandler" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
</modules> |
<handlers> |
<remove name="WebServiceHandlerFactory-Integrated" /> |
<remove name="ScriptHandlerFactory" /> |
<remove name="ScriptHandlerFactoryAppServices" /> |
<remove name="ScriptResource" /> |
<add name="ScriptHandlerFactory" verb="*" path="*.asmx" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add name="ScriptHandlerFactoryAppServices" verb="*" path="*_AppService.axd" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add name="ScriptResource" preCondition="integratedMode" verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" /> |
<add name="Telerik.ReportViewer.axd_*" type="Telerik.ReportViewer.WebForms.HttpHandler, Telerik.ReportViewer.WebForms, Version=3.2.9.1104, Culture=neutral, PublicKeyToken=a9d7983dfcc261be" path="Telerik.ReportViewer.axd" verb="*" /> |
</handlers> |
</system.webServer> |
<runtime> |
<assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1"> |
<dependentAssembly> |
<assemblyIdentity name="System.Web.Extensions" publicKeyToken="31bf3856ad364e35" /> |
<bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="3.5.0.0" /> |
</dependentAssembly> |
<dependentAssembly> |
<assemblyIdentity name="System.Web.Extensions.Design" publicKeyToken="31bf3856ad364e35" /> |
<bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="3.5.0.0" /> |
</dependentAssembly> |
</assemblyBinding> |
</runtime> |
<openaccess xmlns="http://www.telerik.com/OpenAccess"> |
<references> |
<reference assemblyname="Business" configrequired="True" /> |
<reference assemblyname="Data" configrequired="True" /> |
<reference assemblyname="Entities" configrequired="True" /> |
</references> |
<connections> |
<connection id="DatabaseConnection1"> |
<databasename>????</databasename> |
<servername>????</servername> |
<integratedSecurity>True</integratedSecurity> |
<backendconfigurationname>mssqlConfiguration</backendconfigurationname> |
</connection> |
</connections> |
</openaccess> |
</configuration> |
This is our web.config file using a IIS 7.0 server. (6.0 on our dev servers)
We have been investigating some and found a problem that might be the "error" we are looking for.
" HTTP Error 500.21 - Internal Server Error Handler "Telerik.ReportViewer.axd_*" has a bad module "ManagedPipelineHandler" in its module list"
This error shows when we are trying to connect to "http://devmachine/MyApplication/Telerik.ReportViewer.axd?name=Resources.ReportViewer.js&optype=Resource&version=x.x.x.x"
Also been trying these things.
http://www.telerik.com/support/kb/reporting/report-viewers/reportviewer-is-undefined-javascript-error.aspx
0

Magnus
Top achievements
Rank 1
answered on 11 Jan 2010, 09:34 AM
Found the problem.
was missing "preCondition="integratedMode,runtimeVersionv2.0" in the handler
was missing "preCondition="integratedMode,runtimeVersionv2.0" in the handler
