Hi,
We have a few classes that inherits from our CustomShape class that inherits from RadDiagramShape, we also have a CustomConnector (inherits from RadDiagramConnector) class and we would like to have our ports always visible, we did try to edit the default template of RadDiagramShape and change the visibility to visible but it is not working.
Would you be able to tell us to change the visibility of the ports to make them visible even when the shape is not clicked?
Thanks!
7 Answers, 1 is accepted
The easiest way is to override the UpdateVisualStates() in your CustomShape.cs file with the following code:
protected
override
void
UpdateVisualStates()
{
base
.UpdateVisualStates();
var isConnectorsAdornerVisibleResult =
this
.Diagram !=
null
;
VisualStateManager.GoToState(
this
, isConnectorsAdornerVisibleResult ?
"ConnectorsAdornerVisible"
:
"ConnectorsAdornerCollapsed"
,
false
);
}
The other approach is to create your own style template for your shapes and set the ConnectorsControl Visibility to Visible.
Hope this helps,
Shawn
Hi Shawn,
Thanks for your quick reply, It worked fine!!!
We have another issue with the diagram, bezier connections are not working well. I will try to explain what we tried,
- As you know we have the following classes : CustomDiagram , CustomConnector, CustomConnection and CustomShape.
- The problem that we are facing is related to CustomConnector because the bezier does not know where they start or end (that's what we guess), we tried to implement the solutions available in the documentation (ConnectionPoints, IsModified...) but it is not working.
- We also try to use the SetBezierHandles without success.
Our implementation of the ports
private
void
AddOutputConnector()
{
var outConnector =
new
CustomConnector() { Offset =
new
Point(1, 0.5), Direction = ConnectorDirection.Out };
outConnector.Margin =
new
Thickness(-10, 0, 0, 0);
outConnector.Name =
"out"
;
Connectors.Add(outConnector);
}
private
void
AddInputConnector()
{
var inConnector =
new
CustomConnector() { Offset =
new
Point(0, 0.5), Direction = ConnectorDirection.In };
inConnector.Margin =
new
Thickness(0, 0, -10, 0);
inConnector.Name =
"in"
;
Connectors.Add(inConnector);
}
public
CustomConnection()
{
IsEnabled =
false
;
LinearGradientBrush gradientBrush =
new
LinearGradientBrush(Color.FromRgb(0, 115, 255), Color.FromRgb(0, 197, 255),
new
Point(0, 0),
new
Point(1, 1));
Stroke = gradientBrush;
StrokeThickness = 6.0;
ConnectionType = ConnectionType.Bezier;
BezierTension = 0.8;
IsManipulationAdornerVisible =
false
;
InitMap();
}
We also try to use a style for the connections, stroke color and thickness are working, however we have issues with how the diagram handles the bezier.

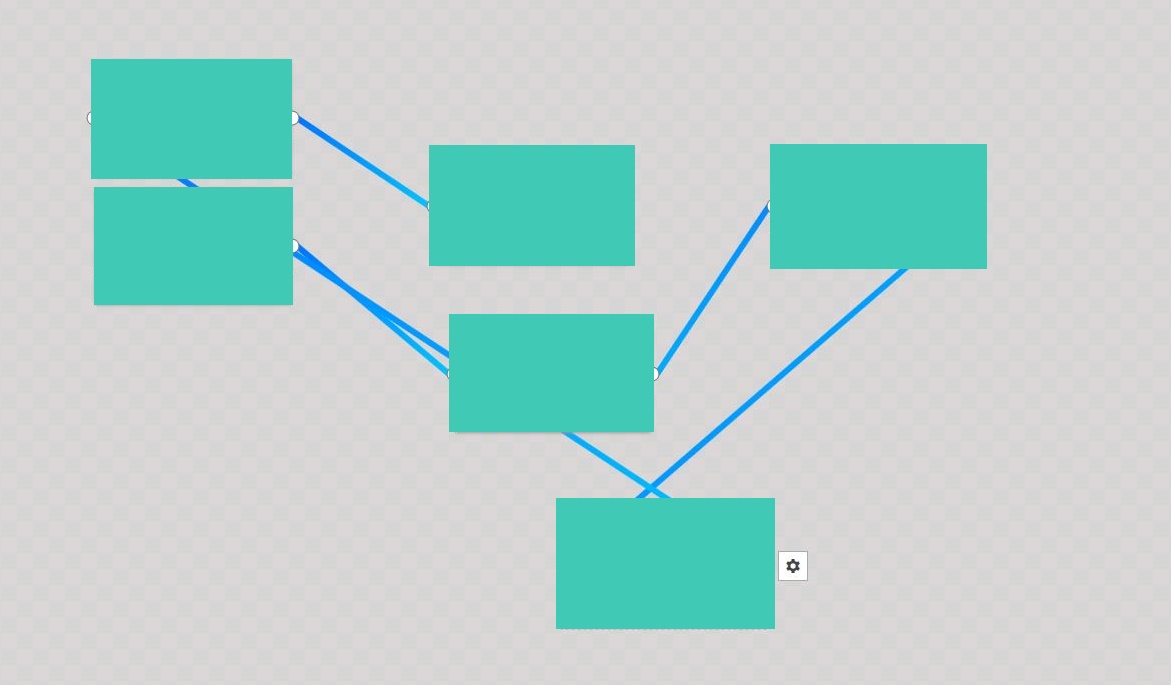

Here you can find and attached example of the problem we have.
Would you be able to help us?
Thanks!
Without seeing the source code of your example, it's difficult to pinpoint the exact problem but somethings you can try:
- Make sure that IsConnectorsManipulationEnabled is set to True on your RadDiagram .
- Since you are overriding the Connection style, you have to make sure the Path named "GeometryPath" otherwise the connection will not set any points properly
- The SourceConnectorPosition and TargetConnectorPositions of your connection have to be set to match the name of your connectors. By default, they are set to "Auto".
- On your Connection, set Route = false;
Give these a try and hopefully one will help.
Shawn
Hi Fede,
Without seeing your source code, it's difficult to pinpoint the exact cause but here are a few things you can check:
- Make sure your Connection has Route set to False
- Make sure your Diagram object has IsConnectorsManipulationEnabled set to True
- Make sure your SourceConnectorPosition and TargetConnectorPositions are set to the Connector name and not Auto.
- Since you are overriding the Style for your connector, make sure the Path has the name set to "GeometryPath" otherwise the logic can't set any points for the path to follow.
Hope this helps,
Shawn
Can you post your CustomConnection code, the code which creates new connections and the part when you attach them to shapes and add them in RadDiagram ? Also, is it possible to test your scenario with the latest telerik binaries from R3 2016 ?
Regards,
Petar Mladenov
Telerik by Progress
Hi Petar,
Here is the code of our custom connection and customconnector
public
class
CustomConnector : RadDiagramConnector
{
private
ConnectorDirection direction;
private
IConnection connection =
null
;
//Empty Constructor
public
CustomConnector()
{
Background = Brushes.White;
Height = 15;
Width = 15;
}
public
ConnectorDirection Direction
{
get
{
return
direction; }
set
{ direction = value; }
}
public
IConnection Connection
{
get
{
return
connection; }
set
{ connection = value; }
}
protected
override
void
OnMouseDown(MouseButtonEventArgs e)
{
}
protected
override
void
OnMouseEnter(MouseEventArgs e)
{
base
.OnMouseEnter(e);
}
class
CustomConnection : RadDiagramConnection
{
#region Properties Definitions
CustomDiagram diagram = ((((MainWindow)Application.Current.MainWindow).mainGrid
.Children[((MainWindow)Application.Current.MainWindow).mainGrid.Children.Count - 1])
as
NodeEditor).diagram;
private
static
MultiValueDictionary<System.Type, System.Type> connectionMapping =
new
MultiValueDictionary<System.Type, System.Type>();
private
bool
isReverse =
false
;
public
bool
IsReverse
{
get
{
return
isReverse; }
set
{ isReverse = value; }
}
#endregion
#region Constructors
public
CustomConnection()
{
IsEnabled =
false
;
LinearGradientBrush gradientBrush =
new
LinearGradientBrush(Color.FromRgb(0, 115, 255), Color.FromRgb(0, 197, 255),
new
Point(0, 0),
new
Point(1, 1));
Stroke = gradientBrush;
StrokeThickness = 6.0;
ConnectionType = ConnectionType.Bezier;
BezierTension = 0.8;
IsManipulationAdornerVisible =
false
;
InitMap();
}
#endregion
#region Compatibility
private
static
void
InitMap()
{
connectionMapping.Clear();
connectionMapping.Add(
typeof
(Product),
typeof
(StationConveyor));
connectionMapping.Add(
typeof
(StationConveyor),
typeof
(EndEffector));
connectionMapping.Add(
typeof
(EndEffector),
typeof
(Robot));
connectionMapping.Add(
typeof
(Robot),
typeof
(PalletStation));
connectionMapping.Add(
typeof
(PalletStation),
typeof
(Pallet));
}
public
static
void
ConnectionManipulationCompleted(
object
sender, ManipulationRoutedEventArgs e)
{
var diagram = ((((MainWindow)Application.Current.MainWindow).mainGrid
.Children[((MainWindow)Application.Current.MainWindow).mainGrid.Children.Count - 1])
as
NodeEditor).diagram;
if
(e.ManipulationStatus == ManipulationStatus.Attaching)
{
CheckCompatibility(e.Connector
as
CustomConnector, e.Connection
as
CustomConnection, e);
}
else
if
(e.ManipulationStatus == ManipulationStatus.Detaching)
{
Console.WriteLine(
"Detaching"
);
}
else
if
(e.ManipulationStatus == ManipulationStatus.Moving)
{
Console.WriteLine(e.Shape.Position);
}
else
if
(e.ManipulationStatus == ManipulationStatus.Moved)
{
Console.WriteLine(
"Moved"
);
e.Handled =
true
;
return
;
}
else
{
Console.WriteLine(
"Else"
);
}
Mouse.OverrideCursor = Cursors.Arrow;
}
private
static
void
CheckCompatibility(CustomConnector connector, CustomConnection connection, ManipulationRoutedEventArgs e)
{
IReadOnlyCollection<System.Type> value;
if
(!connection.Source.Equals(connector.Shape))
{
if
((connector !=
null
) && (connector.Direction == ConnectorDirection.In))
{
if
(connection.Source.GetType().BaseType.Name.Equals(
typeof
(EndEffector).Name))
connectionMapping.TryGetValue(connection.Source.GetType().BaseType,
out
value);
else
connectionMapping.TryGetValue(connection.Source.GetType(),
out
value);
foreach
(Type type
in
value)
{
if
(type.Equals(connector.Shape.GetType()) || type.Name.Equals(connector.Shape.GetType().BaseType.Name))
{
Console.WriteLine(
"Esto es Compatible"
);
}
else
{
e.Handled =
true
;
break
;
}
}
}
else
if
((connector !=
null
) && (connector.Direction == ConnectorDirection.Out))
{
if
(connector.Shape.GetType().BaseType.Name.Equals(
typeof
(EndEffector).Name))
connectionMapping.TryGetValue(connector.Shape.GetType().BaseType,
out
value);
else
connectionMapping.TryGetValue(connector.Shape.GetType(),
out
value);
foreach
(Type type
in
value)
{
if
(type.Equals(connection.Source.GetType()) || type.Name.Equals(connection.Source.GetType().BaseType.Name))
{
connection.isReverse =
true
;
Console.WriteLine(
"Compatible"
);
}
else
{
e.Handled =
true
;
break
;
}
}
}
}
}
/*
* Método sobrescrito para eliminar las conexiones
* que se quedan coleando en el limbo del diagrama.
* (Recolector de basura ciberespacial).
*/
protected
override
void
OnPropertyChanged(DependencyPropertyChangedEventArgs e)
{
if
(((e.Property.Equals(CustomConnection.SourceProperty)) || (e.Property.Equals(CustomConnection.TargetProperty))) &&
(e.NewValue ==
null
))
{
diagram.RemoveConnection(
this
);
}
base
.OnPropertyChanged(e);
}
#endregion
}
}
Hope this helps...non of the above solutions worked
We see nothing abnormal in this implementation (except getting the diagram, which can be replaced with this.ParentOfType<RadDiagram>()). However, we miss the code which populates the diagram with connections. We are also not sure the exact issue you are trying to solve - please point us to what you need to be different on the picture you sent us previously (is it the connectors be always visible, or the bezier curve to be more different in terms of geometry) ?
Ideally, we would need an isolated sample to investigate more precisely - can you open a new support thread with isolation ?
Also, what is the version you are using and have you tried our latest release - you did not answer this but it might be crucial, cause we have several bezier curves fixes for the last several releases.
Regards,
Petar Mladenov
Telerik by Progress
