Points are not visible in ScatterPointSeriesChart

2 Answers 116 Views
ChartView
This is a migrated thread and some comments may be shown as answers.
yalçın
Top achievements
Rank 1
yalçın asked on 06 Oct 2015, 08:46 AM

Hello



I am trying to generate a simple chart with 3 datapoint. Datapoints are defined as shown below

public IDgraphViewModel()         {

    Data = new ObservableCollection<ChartProfileSerisi>();

     ChartProfileSerisi chartProfil1 = new ChartProfileSerisi();

    chartProfil1.Noktalar.Add(new ChartVeriNoktasi(1.0,1.0));

     chartProfil1.Noktalar.Add(new ChartVeriNoktasi(10.0, 10));

         chartProfil1.Noktalar.Add(new ChartVeriNoktasi(140, 60));

                        Data.Add(chartProfil1);                    }

I define the series with code behind

 Chart.HorizontalAxis = new LinearAxis();            Chart.VerticalAxis = new LinearAxis();                        ScatterPointSeries series1 = new ScatterPointSeries();

           series1.ItemsSource = Data[0].Noktalar;            series1.XValueBinding = new PropertyNameDataPointBinding() {PropertyName = "Zaman"};            series1.XValueBinding = new PropertyNameDataPointBinding() { PropertyName = "Stres" };            series1.Visibility = Visibility.Visible;

           Chart.Series.Add(series1);

 In generated graph, axis appears correctly, x axis covers all data range up to 140 but points are not visible. In debugger, I checked

series1.DataPoints  property, it is empty. What could be missing? The remaining code is below



public class ChartProfileSerisi     {

  public ObservableCollection<ChartVeriNoktasi> Noktalar { get; set; }

   public ChartProfileSerisi()        {

 Noktalar = new ObservableCollection<ChartVeriNoktasi>();

         }    }





public class ChartVeriNoktasi    {

    public ChartVeriNoktasi(double zaman, double stres)        {

      this.Zaman = zaman;            this.Stres = stres;        }

       public double Zaman { get; set; }

     public double Stres { get; set; }

}​

2 Answers, 1 is accepted

Sort by
0
yalçın
Top achievements
Rank 1
answered on 06 Oct 2015, 05:51 PM

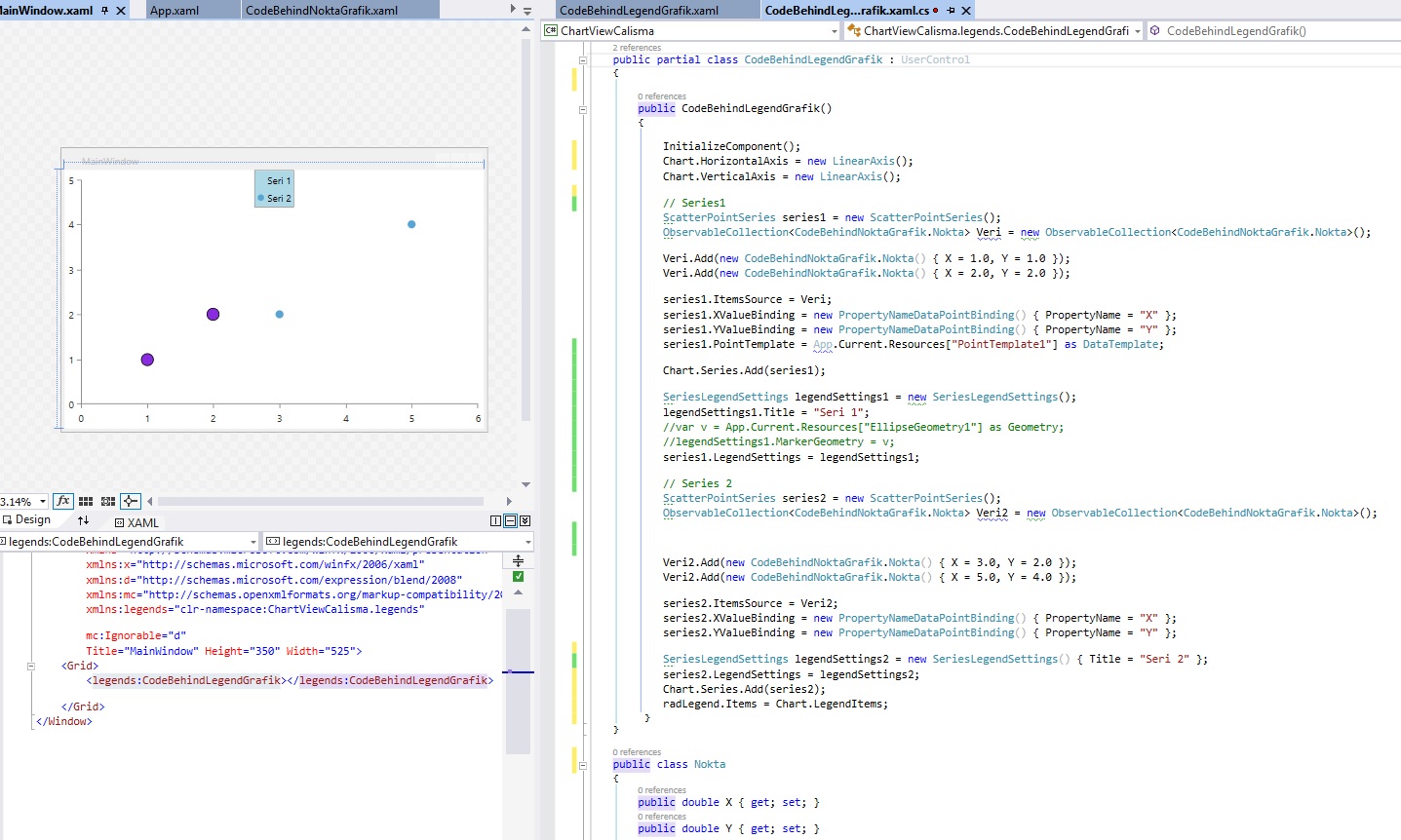

I managed to get it work but I can't set legend marker geometry if I use a custom PointTemplate for a series. In the screenshot "Seri 1" legend is missing.
