PieCharts!

0 Answers 142 Views
Report Designer (standalone)
Deasun
Top achievements
Rank 3
Bronze
Bronze
Bronze
Deasun asked on 21 Sep 2021, 05:26 PM

I have a dataset coming back:

Group      GrpAmt

PArent    $10.00

Standard $5.00

2 columns and 2 rows come back. Should this be formatted another way?

I have attached to the chart object but I am not getting the expected pie pieces.

Instead I get 2 round circles within each other. Not the doughnut version, changed to that and just got an extra white circle in the center.

How do I get the chart to show me the pieces?





Deasun
Top achievements
Rank 3
Bronze
Bronze
Bronze
commented on 21 Sep 2021, 06:01 PM

hmm

I added a 3 row of data and I now have 3 pie pieces, but! their equal sizes within the pie.

even though the amts are quite different.

1 says its 9.59%, another says 42.51% and the 3rd says 47.90%

But the pie pieces show up as 1/3 in size!!!

I expected the 1st to be a tiny piece and the other two to be major pieces.

What am I doing wrong?

Neli
Telerik team
commented on 24 Sep 2021, 11:49 AM

Hi Deasun,

I attached a sample report that contains a PieChart. It was created through the Wizard in the following way:

Series: Group

Values: Parent

Then you may want to change the DataPointLabel property of the barSeries to:

= Fields.Group + ": $" + Fields.Parent

Deasun
Top achievements
Rank 3
Bronze
Bronze
Bronze
commented on 05 Oct 2021, 07:33 PM

What does the DataPointLabel have to do with the pie piece's sizes ?

See each pie piece is exactly the same size!

They should be in relation to the % amt.

So the 58.50% should nearly take up 60% of the whole piechart.

Sorry if i am asking dumb ?'s first time playing with this chart.

Deasun
Top achievements
Rank 3
Bronze
Bronze
Bronze
commented on 07 Oct 2021, 03:27 PM

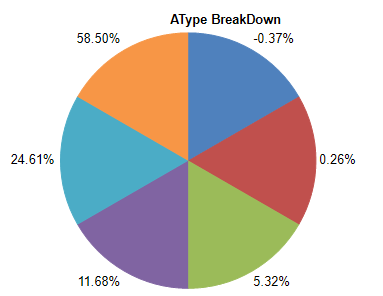

The way your piechart looks is what I want mine to look like. But as you can see from above image mine does not.

How can I get the sections to match up to their % value of the whole?



Deasun
Top achievements
Rank 3
Bronze
Bronze
Bronze
commented on 07 Oct 2021, 03:44 PM

It appears my issue was with the Series.barseries1.X property.

I had it set to: Count(Fields.SubGroup), which now makes sense as to way they were all one size. duh!

I reset it to: Fields.GrpAmt and it kinda worked.

It appears a negative bucket was given it a further problem. I only seemed to see half the PieChart.

I took that negative amt out from the datasource and the piechart worked!! :)



Whats the negative amount do that messes it up?

Neli
Telerik team
commented on 08 Oct 2021, 02:42 PM

Hi Deasun,

If  I understood correctly, there were some negative values in the datasource, is that correct?

In this case, I would recommend using a column or line chart, where the negative values can be presented below the horizontal axis.

In order to avoid such issues, you can edit the expression of series' X value, which will return 0 if the current sum is a negative number:
= IIF(Sum(Fields.Value) < 0, 0, Sum(Fields.Value))

Note that having a negative number in the data set will affect the calculation of the other grouping members.
