Pie Chart with % value displayed

[Quan Nguyen]

Hi,
Do you have any sample codes for for creating a pie chart with the value of each slice displayed (counter or %).
I have tried the codes below to create pie chart on-fly but couldn't get it done:

........

Dim



objChart As New Telerik.Reporting.Chart()





objChart.SeriesPalette =

"Palette1"













objChart.Style.Color = Color.DarkBlue



objChart.BitmapResolution = 96.0F



objChart.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf

objChart.Name = strFieldName

objChart.ChartTitle.TextBlock.Text = objChartDetails.ChartTitle

objChart.ChartTitle.Appearance.FillStyle.MainColor = Color.Transparent

objChart.Size =

New Telerik.Reporting.Drawing.SizeU(New Telerik.Reporting.Drawing.Unit(drReport("Width"), Telerik.Reporting.Drawing.UnitType.Pixel), New Telerik.Reporting.Drawing.Unit(drReport("Height"), Telerik.Reporting.Drawing.UnitType.Pixel))





objChart.ChartTitle.Appearance.Dimensions.Margins =

New Telerik.Reporting.Charting.Styles.ChartMargins(0, 10, 10, 10)





objChart.PlotArea.EmptySeriesMessage.Appearance.Visible =

True













objChart.PlotArea.EmptySeriesMessage.Visible =

True



















objChart.PlotArea.Appearance.FillStyle.MainColor = Color.White



objChart.PlotArea.Appearance.FillStyle.SecondColor = Color.White





Dim



objChartSeries As New ChartSeries()



objChartSeries.DefaultLabelValue =

"#%"



objChartSeries.Appearance.TextAppearance.Visible =

True



objChartSeries.Appearance.LegendDisplayMode = Telerik.Reporting.Charting.ChartSeriesLegendDisplayMode.ItemLabels

objChartSeries.DataLabelsColumn =

"StatName"



objChartSeries.Type = objChartDetails.ChartType

objChartSeries.DataYColumn =

"StatCount"





objChart.Series.Add(objChartSeries)





........

my data source is from a table with StatName (varchar) and StatCount(int)
StatName      StatCount
Verified          23
No-Verified    65

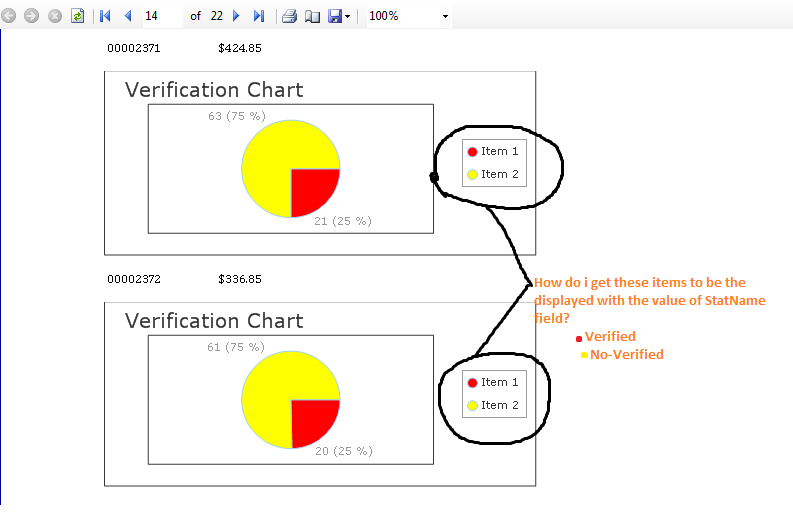

Attached is a sample of my result.

Thanks
quan

[Steve]

Hello Quan,

The following articles elaborate on the desired functionality:

• Formatting Chart Labels
• DefaultLabelValue

All the best,
Steve
the Telerik team

[Quan Nguyen]

Thank you for your reply, I have made some progress but still got 1 issue left for the label of items in pie chart. How do I assign the label for each colored. Right now it just list Item 1 and Item 2. It should list the name of each value for StatName field.

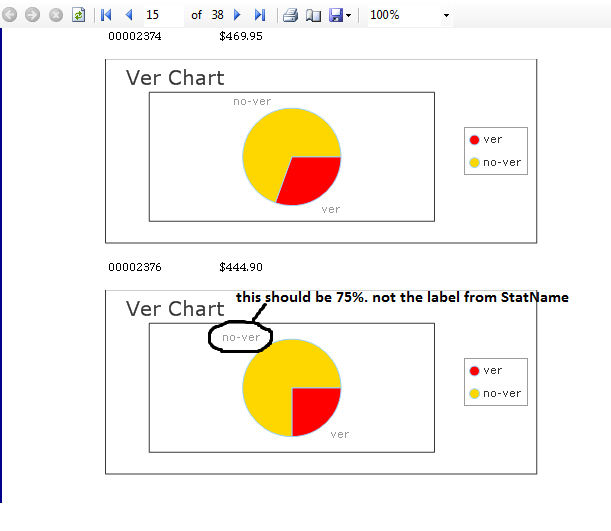

Attach is my current result with question.

Thanks
Quan

[Steve]

Hi Quan Nguyen,

You should set the StatName field as value for the DataLabelsColumn property of the series and make sure that the LegendDisplayMode is set to ItemLabels.

All the best,
Steve
the Telerik team

[c e]

Hi
I followed this sample, but when assign  StatName field as value for the DataLabelsColumn and setting LegendDisplayMode to ItemLabels, I'm ending having the StatName field value in both, close to each area in the chart and in the legend area.

Is it possible to have the StatName  field value + the % near each area in the chart and only the StatName  field value in the legend area?
Besides, is it possible assign specific colors to each area?

Thank in advance


Carlos

[Steve]

Hi Carlos,

Sure you can, check the Data Binding Chart to a Generic List of Objects help article for a sample.

Greetings,
Steve
the Telerik team
