Pdf Annotations on rotated pages look incorrect

[Vladimir]

Hello, again!



If pdf annotations on rotated pages have the flag /Rotate with the same angle as page angle, they will be displayed wrong.



I attached file with this trouble:   http://u.pc.cd/A71rtalK

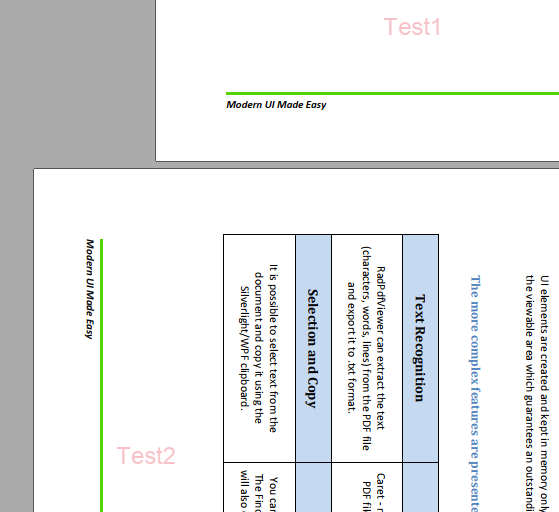

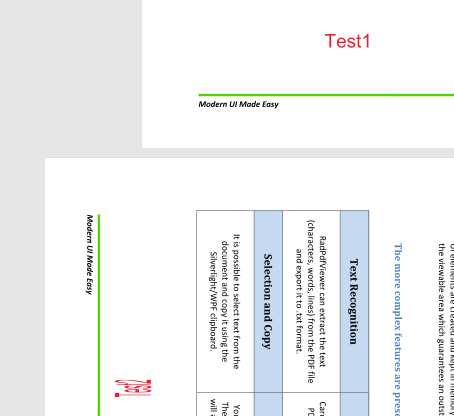

And 2 screens: Correct.png and Incorrect.png

Annotation "Test2" looks incorrectly



Reason for this may be the using 'apprearance stream', which is trying to rotate on an already rotated page. But I am not sure.

[Vladimir]

Solution of this - just updating from '2020.2.617' to '2020.3.915'.

After updating to the '2020.3.915' I saw correct annotations on every page.

[Martin]

Hi Vladimir,

I am happy that updating the assemblies' version solves your case.

The reason behind this is that with the 2020 R3 Release we introduced a new document model for the PdfViewer, a unified one (between PdfProcessing and PdfViewer document models). For more information, you can check the Unifying the Power of PdfViewer & PdfProcessing: Edit a PDF with our Newest Secret blog post.

Regards,
Martin
Progress Telerik

[Vladimir]

Hi Martin,

Thank you for the link to the article. I got it and found the most useful thing for me - these are UILayers and method InvalidatePageUI. UI layers we have already done by ourself, and I was trying to implement similar method as InvalidatePageUi with old model by myself, but it was looked awful. Now we can solve and our other tasks.

Regards, Vladimir

[Martin]

Hi Vladimir,

I am happy you find the positives of merging the models.

If you need any further assistance, please let us know.

Regards,
Martin
Progress Telerik
