Override Sort Issue

1 Answer 58 Views
PropertyGrid
This is a migrated thread and some comments may be shown as answers.
Chuck
Top achievements
Rank 1
Chuck asked on 04 Feb 2015, 04:39 PM
I am overriding my GetProperties() and Sort Methods of an objects PropertyDescriptorCollection in order to sort by index of a collection.

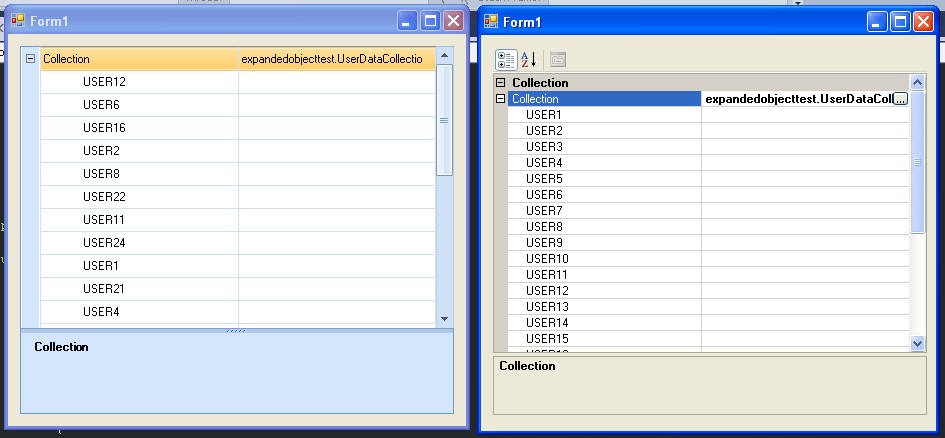

In the ms winforms propertyGrid this is displaying as expected, while in the Telerik radPropertyGrid it is not performing the same as the picture depicts.

Is there a reason this isn't compatible with the Telerik PropertyGrid?

Below is the code for the PropertyDescriptorCollection sort and GetProperties overrides:

class UserDataPropertyDescriptorCollection : PropertyDescriptorCollection
{
    public UserDataPropertyDescriptorCollection(PropertyDescriptor[] propertyDescriptors)
        : base(propertyDescriptors)
    {
    }

    public override PropertyDescriptorCollection Sort()
    {
        PropertyDescriptorCollection ret = new PropertyDescriptorCollection(null);
        return this;
    }

    public override PropertyDescriptorCollection Sort(string[] names)
    {
        return this;
    }

    public override PropertyDescriptorCollection Sort(string[] names, System.Collections.IComparer comparer)
    {
        return this;
    }

    public override PropertyDescriptorCollection Sort(System.Collections.IComparer comparer)
    {
        return this;
    }

}

public class UserDataExpandableObjectConverter : ExpandableObjectConverter
{
    public override PropertyDescriptorCollection GetProperties(ITypeDescriptorContext context, object value, Attribute[] attributes)
    {
        PropertyDescriptorCollection d = base.GetProperties(context, value, attributes);
        List<PropertyDescriptor> props = new List<PropertyDescriptor>();

        foreach (PropertyDescriptor f in d)
        {
            props.Add(f);
        }

        UserDataPropertyDescriptorCollection m = new UserDataPropertyDescriptorCollection(props.ToArray());
        return m;
    }
}

The object being displayed in the propertyGrid
public class alpha
{
    private UserDataCollection usd;
    private string test;

    public alpha()
    {
        usd = new UserDataCollection();
        test = "Fun";
    }

    [TypeConverterAttribute(typeof(UserDataExpandableObjectConverter))]
    [Category("Collection")]
    public UserDataCollection Collection
    {
        get { return usd; }
        set { usd = value; }
    }

    [Category("String")]
    public string Attr
    {
        get { return test; }
        set { test = value; }
    }
}

The form:

public Form1()
{
    InitializeComponent();
    UserDataCollection temp = new UserDataCollection();
    alpha obj = new alpha();
    //Inner test = new Inner();

    for (int i = 0; i < 25; i++)
    {
        obj.Collection.Add("");
    }
    radPropertyGrid1.SelectedObject = obj;
}

The only difference between the two projects is the propertyGrid

1 Answer, 1 is accepted

Sort by
0
Accepted
Dess | Tech Support Engineer, Principal
Telerik team
answered on 09 Feb 2015, 09:21 AM
Hello Chuck,

Thank you for writing.

Your question has already been answered in the support thread that you had opened on the same topic. However, I am posting the answer here as well in order the community to benefit from it.

It is a known issue with RadPropertyGrid. However, its fix was introduced in Q3 2013 SP1. Here is the feedback item for your reference. I would recommend you to upgrade in order to benefit from all the introduced improvements. As to the specific version, you can use a custom IComparer which would only work in your specific case:
public class MyComparer : IComparer<PropertyGridItem>
{
    public MyComparer()
    {
    }

    public int Compare(PropertyGridItem x, PropertyGridItem y)
    {
        int xValue = -1;
        int yValue = -1;

        if (int.TryParse(x.Name.Substring(1), out xValue) &&
            int.TryParse(y.Name.Substring(1), out yValue))
        {
            if (xValue > yValue)
            {
                return 1;
            }
            else if (xValue < yValue)
            {
                return -1;
            }
            else
            {
                return 0;
            }
        }
        else
        {
            return x.Name.CompareTo(y.Name);
        }
    }
}
this.radPropertyGrid1.PropertyGridElement.PropertyTableElement.CollectionView.Comparer = new MyComparer();


I hope this information helps. Should you have further questions, I would be glad to help.

Regards,
Dess
Telerik
