Overlapping RadPanes

3 posts, 0 answers
  1. Mateusz
    Mateusz avatar
    2 posts
    Member since:
    Dec 2018

    Posted 05 Dec 2018 Link to this post

    Hi,

    I've got a problem with overlapping RadPanes when using RadDocking Root Compass.

    The case is that when I'm dragging RadPanes to the one side of the Root Compass, the Rad Panes on the other side gets overlapped by the dragged ones.

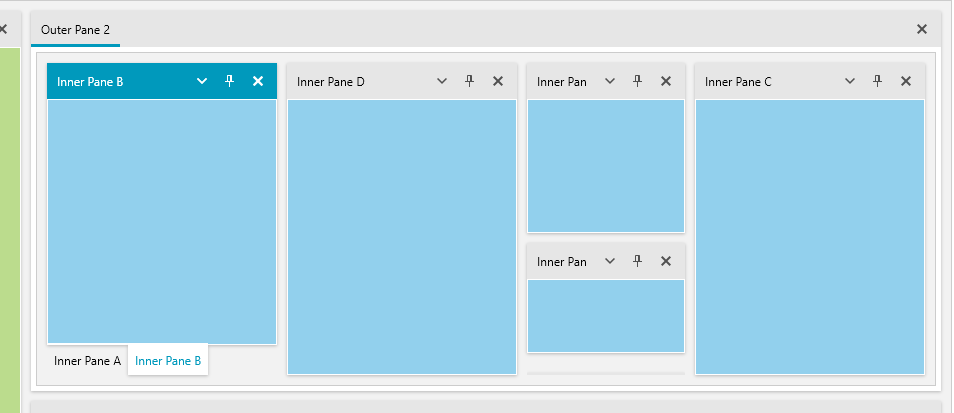

    Description may not be clear, so here is simple gif showing the problem:

    Pane "Inner Pane C" get overlapped, when dragging new panes to the left side of the Root Compass. It works for every side of the Root Compass.



    Is there a simple solution for this issue? Ex. modifying the docked Panes width, to fit them all in the RadDocking control? I've searched on this forum and in the documentation, and couldn't find the solution.



    Best regards,

    Mateusz

  2. Mateusz
    Mateusz avatar
    2 posts
    Member since:
    Dec 2018

    Posted 05 Dec 2018 in reply to Mateusz Link to this post

    GIF didn't load correctly, please find it in attached files.
  3. Dilyan Traykov
    Admin
    Dilyan Traykov avatar
    1070 posts

    Posted 07 Dec 2018 Link to this post

    Hello Mateusz,

    I'm afraid that such behavior is expected when there are no panes docked at the opposite side of the control.

    RadDocking is designed to mimic the Visual Studio application and you can observe the same behavior there if you follow the same action steps.

    My only viable suggestion would be to disable the root compass to avoid putting the control in such a state in the first place:

    <telerik:RadDocking.RootCompassStyle>
        <Style TargetType="telerik:RootCompass">
            <Setter Property="Visibility" Value="Collapsed" />
        </Style>
    </telerik:RadDocking.RootCompassStyle>

    I do hope such an approach would work for you. Please let me know if any further questions or concerns arise.

    Regards,
    Dilyan Traykov
    Progress Telerik
