Outer border bug?

[J]

I can't seem to get rid of the extra space around RadVerticalLinearGauge. Is this a bug or am I missing a property?

Try this code:

<Grid>
    <Border Background="#FF1B1B1F" CornerRadius="0">
        <telerik:RadVerticalLinearGauge OuterBorderThickness="0" OuterBorderBrush="Green" Background="Red" telerik:StyleManager.Theme="Green">
            <telerik:VerticalLinearScale MajorTickBackground="DeepSkyBlue" MiddleTickBackground="DeepSkyBlue" MinorTickBackground="DeepSkyBlue" MajorTickOffset="-10" MiddleTickOffset="-10" MinorTickOffset="-10" Min="0" Max="100" LabelLocation="Inside" MajorTickLocation="Inside" MinorTickLocation="Inside" MiddleTickLocation="Inside" MiddleTicks="2" MinorTicks="1" LabelFormat="{}{0:F0} %" FontSize="20" Foreground="#FF9EABAA" Fill="{x:Null}">
                <telerik:VerticalLinearScale.Indicators>
                    <telerik:BarIndicator BorderBrush="{x:Null}" Value="100" Background="#FF323232"/>
                    <telerik:BarIndicator BorderBrush="{x:Null}" Value="70" Background="DeepSkyBlue"/>
                </telerik:VerticalLinearScale.Indicators>
            </telerik:VerticalLinearScale>
        </telerik:RadVerticalLinearGauge>
    </Border>
</Grid>



There is a black extra space around the red gauge object. Margin is 0 so that's not the culprit. I added OuterBorderThickness and OuterBorderBrush for demonstration purpose. If I set OuterBorderThickness to 10 the green border is drawn over the black area. Not sure if they are related but something to start with.

Shouldn't the red area fill the entire border object with the above property values? Especially if you remove both OuterBorderThickness and OuterBorderBrush property values from the code.





[J]

There seems to be a bug in the formatted code. Background and CornerRadius are badly formatted after I moved them on the same line with <Border . They were on their own rows in my original code that I pasted in the formatted code dialog.

[Dinko | Tech Support Engineer]

Hello J H,

I am not exactly sure what do you mean by badly formatted. Can you send me a picture of the behavior? Basically, there are several properties which you can use to customize the borders around the control. You can check the Backgrounds and Borders help article which describes these properties.

Regards,
Dinko
Progress Telerik

[J]

Hi Dinko.

Ok, I wasn't clear enough. My second post was about this forum and the "Format Code Block" under "Formatting options".

As you can see in my first post, the "B" is separated from "ackground" (same with Co rnerRadius) and uses different color.

I.e., my second post can be send to the forum/website admin.

My first post still stands. Ignore the second one.

[Sia]

Hello,

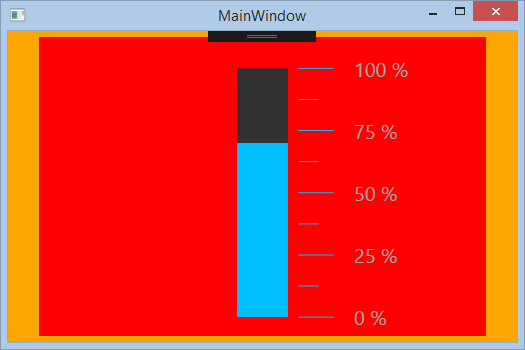

This space is caused by the layout in the default VerticalLinearGauge control template. There is a Grid with three row and three columns. If you set the OuterBackground property to Orange, you will see that this apply to the free space. Please check the attached image. In order to remove it the best option is to set a custom control template as the shown in the attached project (Excuse me for the misleading name). Just remove all settings for Grid.Row, Grid.Column, Grid.RowSpan and Grid.ColumnSpan also.

Regards,
Sia
Progress Telerik
