Need help with Crosstab formatting

[Mark]

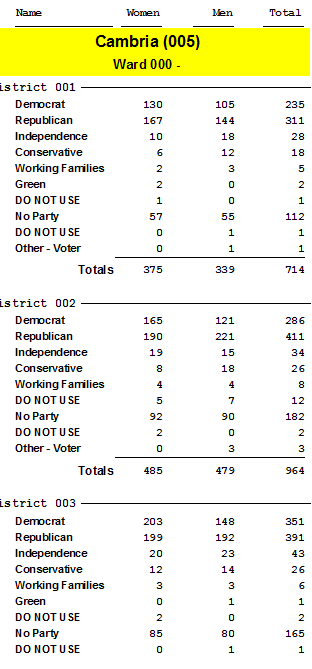

We are converting our Legacy system to .Net using Telerik Reports and the Crosstab control.  Below, is a screen shot of an example from the Legacy system. This is a cross tab report, based on Town/Ward/District and Party Affiliation, counting on Gender.  Formatting is key for our customers.  Any help would be greatly appreciated.



Thanks





[Stef]

Hi Mark,

Based on your screenshot I can suggest you the following scenario:

1. Use directly the report sections - Report Structure;
2. Create static groups for the headers;
3. Create a dynamic group for the District :
   • Display the district information in the GroupHeaderSection;
   • Display the totals in the GroupFooterSection;
4. Use the Detail section to display the reset information;

Other layouts can be created with a Table/List/Crosstab item and the report's sections for headers.


The selected approach depends on your custom requirements for layout and the data structure. Interesting data-binding approaches are elaborated in How to use the ReportItem.DataObject property in expressions and How to Databind to Collection Properties.


I hope this information is helpful.

Regards,
Stef
Telerik
