Gerry asked on 28 Oct 2021, 05:42 PM

Hi,

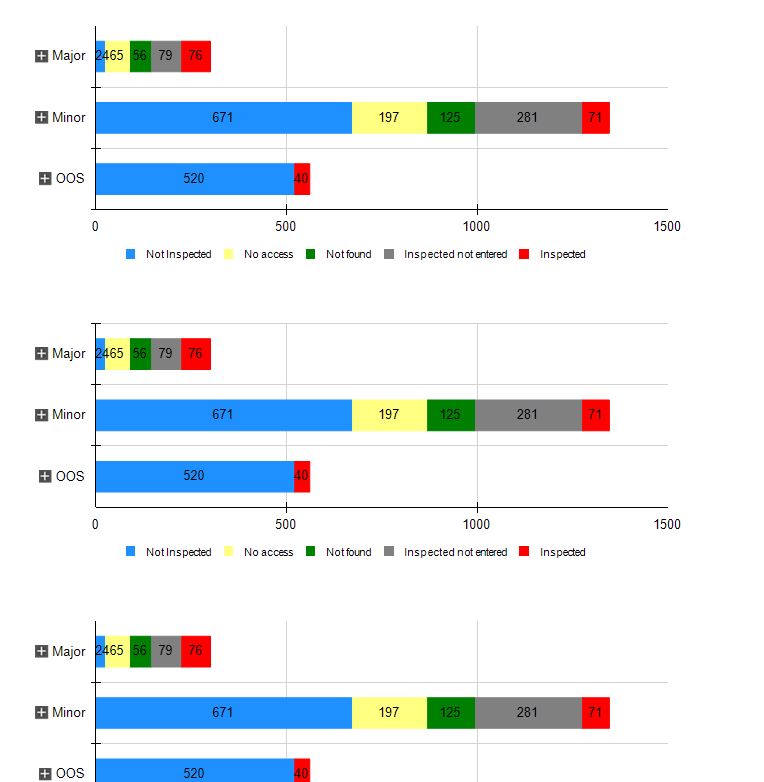

 I ma running a report that has 1 chart, but for some reason when I run it multiple duplicates of the same chart show up on the report.

Does anyone have suggestions on what setting to tweak?

Thanks

1 Answer, 1 is accepted

Sort by
0
Todor
Telerik team
answered on 02 Nov 2021, 09:42 AM

Hi Gerry,

I suspect that you have a data source set on the Report as well as on the Graph. If the Graph is in the Report Details section, it will be printed as many times as there are records in the Report DataSource. The reason is that the Details section is generated once per data record.

The solution will be either to remove the Report DataSource or if this is not acceptable, to move the Graph in the Report Header or Report Footer section.

If the above doesn't help, you may open a support ticket and send us the report for local investigation.

Regards,
Todor
Progress Telerik

Brand new Telerik Reporting course in Virtual Classroom - the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products. Check it out at https://learn.telerik.com/.
Gerry
Top achievements
Rank 1
commented on 23 Nov 2021, 02:36 AM | edited

Thank you Todor,

 I moved the report to the report header and that did the trick. The new issue I have is that the report is generating blank pages after the graph. Do you have any suggestions on how to handle that?

Thanks



Neli
Telerik team
commented on 25 Nov 2021, 10:34 AM

Hi Gerry,

Please, check if the report's width is not bigger that the one of the page. You might have a warning in the top left corner of the report in design time. You can test decreasing the width of the report.

Gerry
Top achievements
Rank 1
commented on 25 Nov 2021, 02:55 PM

Thanks Neil. The report is set up to be 8.5 by 11. I have the margins set to 0.5in,0.5in,1 in, 1in.

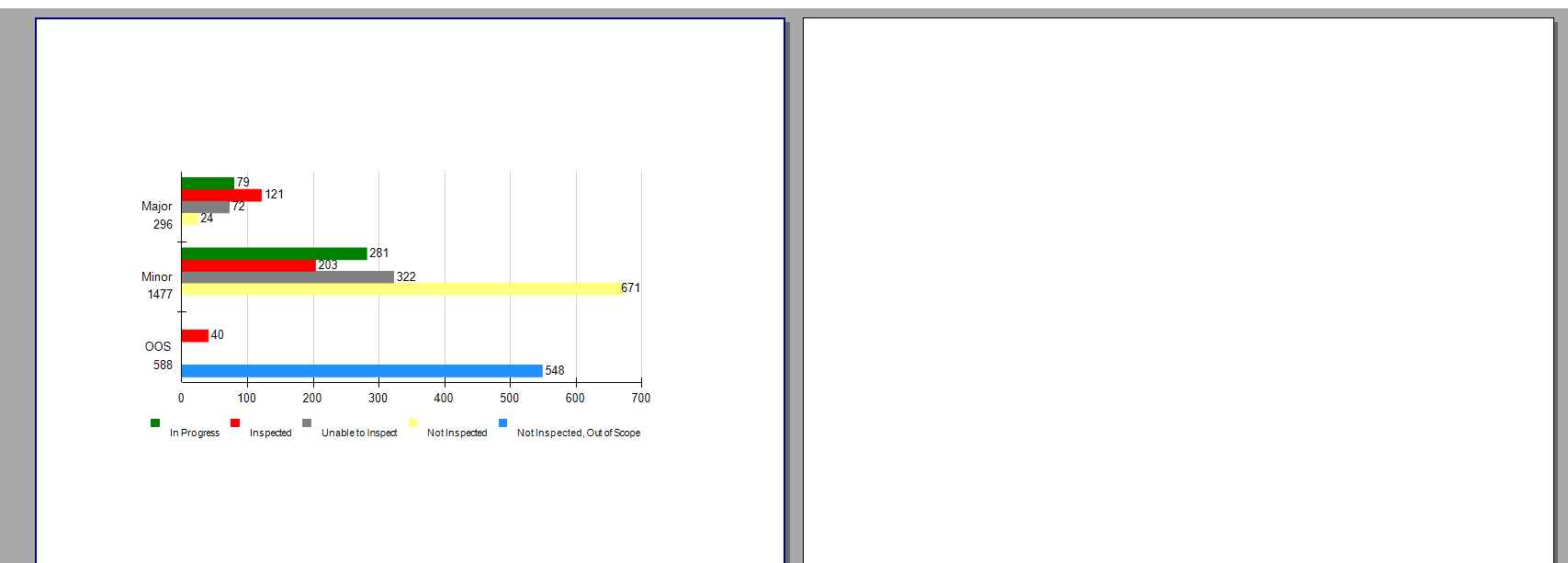

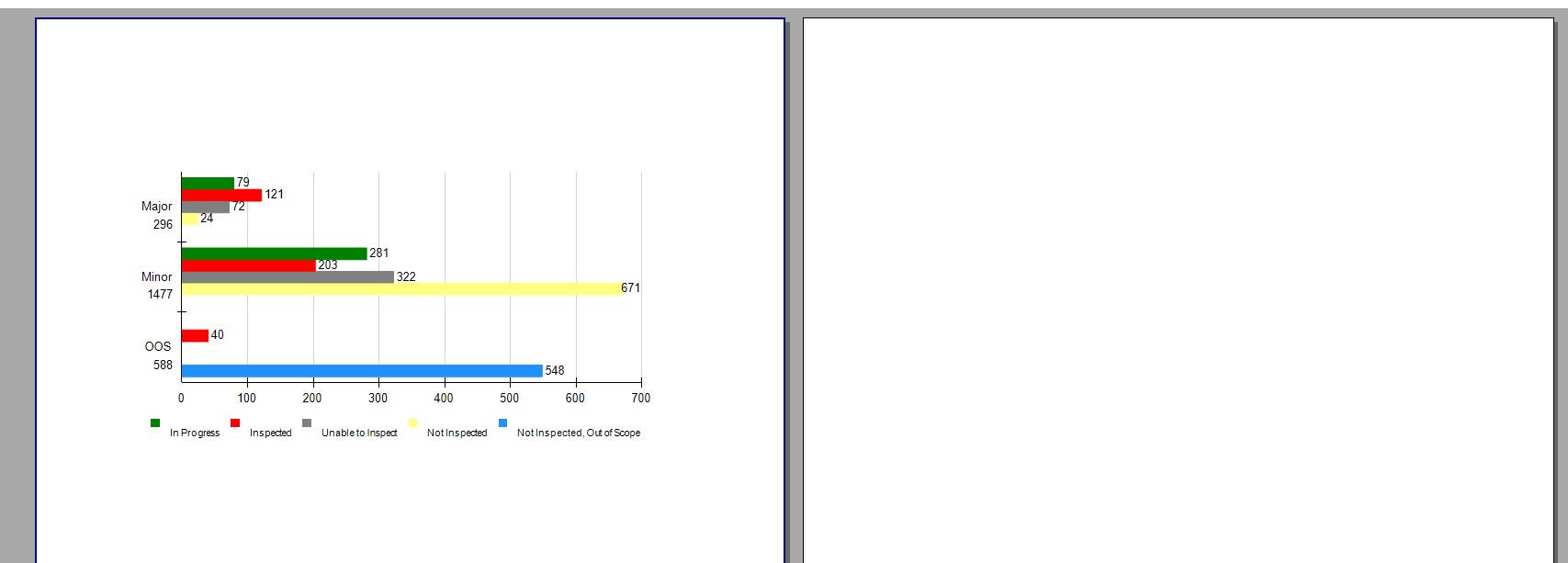

The report is graph is smaller than the width of the report. See image below:



Todor
Telerik team
commented on 30 Nov 2021, 09:50 AM

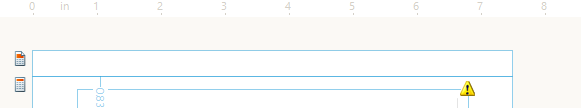

Indeed, the image indicates that there is no warning that the Report cannot fit on a single page. I see a warning yellow triangle in the top right corner of the report item part of which is visible on the screenshot. What does it state?

Are there any page breaks, grouping, etc. in the report definition that may be causing the blank page?

If the problem persists, I suggest opening a support ticket and sending us a runnable report definition, including sample data, for local investigation.
