Multiple areas in RadChartView

6 posts, 0 answers
  1. Jonathan
    Jonathan avatar
    6 posts
    Member since:
    Feb 2016

    Posted 29 Feb 2016 Link to this post

    I've read in the docs that RadChart supports charts with multiple areas for its series. Is there any way to get something similar in RadChartView?

    In case it helps, what I'm trying to achieve is to "stack" vertically different series (candlestick, lines, bars) sharing one common horizontal axis but each with its individual vertical axis.

  2. Petar Marchev
    Admin
    Petar Marchev avatar
    1029 posts

    Posted 03 Mar 2016 Link to this post

    Hi Jonathan,

    Due to multiple reasons, we have decided not to implement multiple areas within a single chart. You can however put charts together and get the same results. The only major thing you need to take care of is to align the plot areas of the charts (at least I assume you would want to do that). You can get the code from this qsf demo, see the ChartViewUtilities static class.

    You can collapse the axes you do not want to get displayed and in case the horizontal data in the different series varies, you can bind the ranges of the collapsed horizontal axes to the ActualRange of the visible one.

    Let us know how it goes.

    Regards,
    Petar Marchev
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Jason D
    Jason D avatar
    130 posts
    Member since:
    Jan 2011

    Posted 16 Jun Link to this post

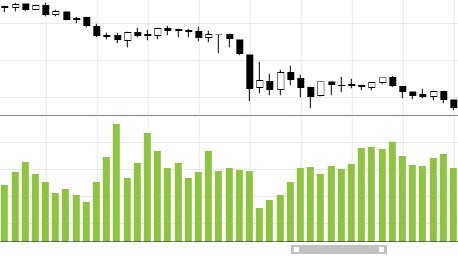

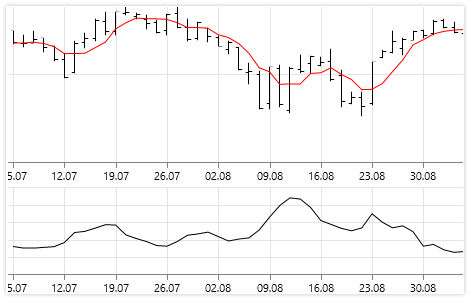

    Is this still true? There are two images that appear to show multiple areas:
