Multi-Level Swimlanes

1 Answer 37 Views
Diagram
This is a migrated thread and some comments may be shown as answers.
ViDrIlL
Top achievements
Rank 1
ViDrIlL asked on 25 Jan 2020, 11:49 AM

Hello,

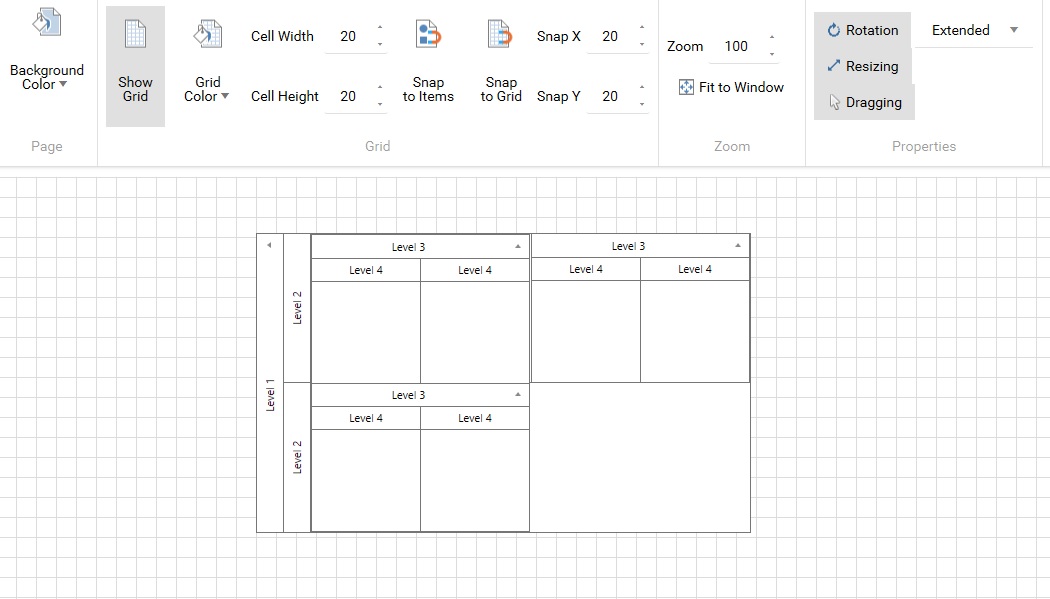

We'd like to make a Multi-Level Swimlanes project such as the attached image.

The lanes should support drag and drop (reordering), resizing, collapsing and etc like in the real demo of the WPF Swimlane Example.
Let me know if you can provide me an example project.



Regards,

1 Answer, 1 is accepted

Sort by
0
Martin Ivanov
Telerik team
answered on 30 Jan 2020, 06:55 AM

Hello ViDrIlL,

Thank you for the attached picture.

I am afraid that we do not have an example showing such customization. What I can suggest you is to use the Swimlane example from our demo application and extend it further to draw a vertical swimlane. Then you can extend also the logic of the elements to allow nesting the swimlanes into one another.

Regards,
Martin Ivanov
Progress Telerik
