Greetings!
Is it possible to add margins for container so the connections stops near or with some offset?
I've tried to:

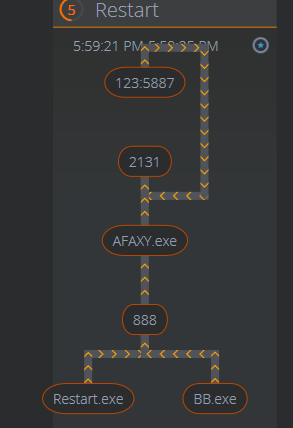

1) add margins to container template but then shapes that belong to container are being rendered without noticing that margin (attach 1)

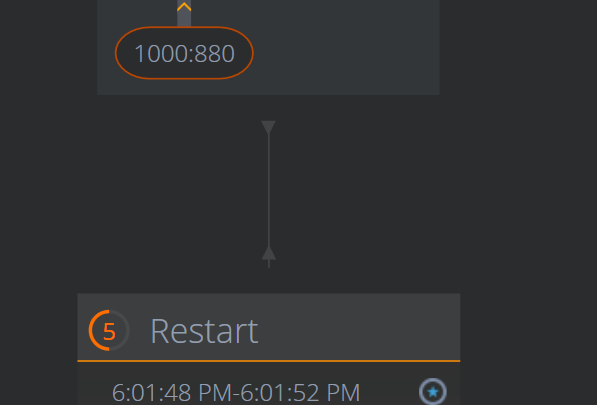

2) replace connectors for shape with increased offset from all sides but then connection looks pretty awful (attach 2)
I use OrgTreeRouter and every time something happens with container I call diagram layout with specific settings.
Is there any other way to get something like attach 3?
Is it possible to add margins for container so the connections stops near or with some offset?
I've tried to:
1) add margins to container template but then shapes that belong to container are being rendered without noticing that margin (attach 1)
2) replace connectors for shape with increased offset from all sides but then connection looks pretty awful (attach 2)
I use OrgTreeRouter and every time something happens with container I call diagram layout with specific settings.
Is there any other way to get something like attach 3?
1 Answer, 1 is accepted
0
Accepted
Hi Wipatel,
As their are some dependencies between the shapes and the connection in the diagram there is not very straight forward approach to set a margin between them except the one with the Connectors of the shape. Basically you can modify the distance between a shape and its connection by changing the value of the Offset property of the shape's Connectors.
If this doesn't work for you, I think calling the diagram Layout() method is okay except in the case when you have a big number of shapes that should be rearranged.
Regards,
Martin
Telerik
As their are some dependencies between the shapes and the connection in the diagram there is not very straight forward approach to set a margin between them except the one with the Connectors of the shape. Basically you can modify the distance between a shape and its connection by changing the value of the Offset property of the shape's Connectors.
this.shape1.Connectors["Top"].Offset = new Point(0.5, -0.1);this.shape1.Connectors["Bottom"].Offset = new Point(0.5, 1.1);this.shape1.Connectors["Left"].Offset = new Point(-0.1, 0.5);this.shape1.Connectors["Right"].Offset = new Point(1.1, 0.5);If this doesn't work for you, I think calling the diagram Layout() method is okay except in the case when you have a big number of shapes that should be rearranged.
Regards,
Martin
Telerik
