Map is not showing all data points

4 posts, 0 answers
  1. Nikola
    Nikola avatar
    6 posts
    Member since:
    Jun 2017

    Posted 12 Jun 2018 Link to this post

    I have a map which I need to put points very close to each other. The distance from each other should be less than 1 meter. The points must also overlap each other. However, I'm facing an issue which I cannot find a good logic on how it works.

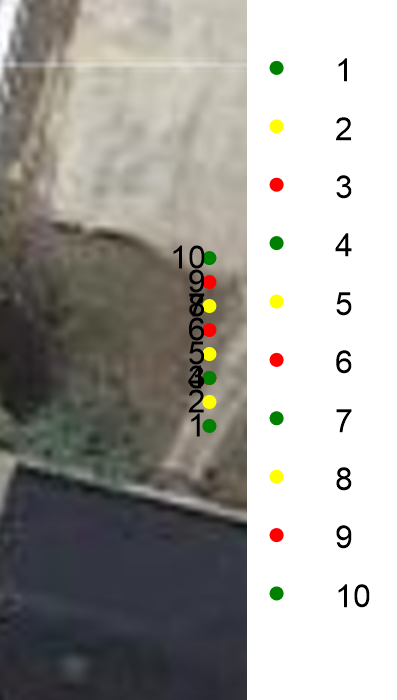

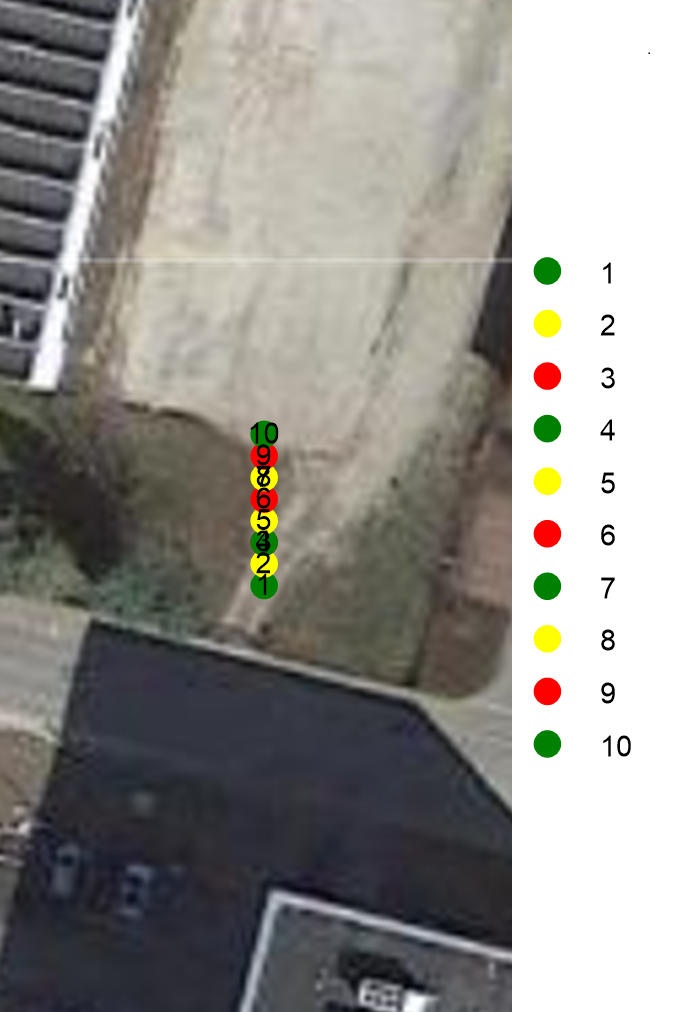

    The attached picture consists of 10 points with the same longitude, but only different latitude. Each has unique Id field. To each point has been added 0.0001 latitude (which translates as roughly 1.12meters). My issue is that points 1,2,5,6,9,10 look great. However 3,4 and 7,8 are grouped/combined/on top of each other. How is it determined which to group and how?

    A little bit more relevant information:

    I'm using PointMapSeries.
    MarketMaxSize, MarketMinSize, MarketSize is set to 1mm/1px
    The seriesGroups groups by Fields.Id and so does the geoLocationGroup.
    My dataclass has only Lat, Long & id.

    I can provide more information if needed.

  2. Ivan Hristov
    Admin
    Ivan Hristov avatar
    196 posts

    Posted 14 Jun 2018 Link to this post

    Hello Nikola,

    This behavior is due to a precision loss. The interpolating functions that calculates the point position on the graph area based on its coordinates, works with float numbers for performance reasons. Given that the differences between the numbers are < 0.00001, converting the numbers to float produces the same float output for points that are close to each other.

    I believe the latitude delta should be 0.00001 instead of 0.0001, because 0.0001 decimal degrees latitude equals to ~11.1m at the equator. If the points' differences are of the 0.0001 scale, they should not overlap.

    However, the Map item is not designed to be used in scenarios where such precision is needed. Its purpose is to be used to display aggregated data over geographical regions, rather than showing points at a precise locations. Of course, if such a feature proves to be important for our users, we will consider its implementation, that's why you can log it in our Feedback & Ideas portal so the community can vote for it.

    Regards,
    Ivan Hristov
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Nikola
    Nikola avatar
    6 posts
    Member since:
    Jun 2017

    Posted 18 Jun 2018 in reply to Ivan Hristov Link to this post

    Hi Ivan,

    You are right regarding the delta, I have written a zero less. It should have been 0.00001
    I am aware that the case I have is not very well suited for the framework, but I couldn't find any known limitations on the documentation. Thank you for the clarification.

    Could you elaborate on what the upcoming in Q3 Heatmap addition will contain? I have seen it on your roadmap: https://www.telerik.com/support/whats-new/reporting/roadmap
  4. Ivan Hristov
    Admin
    Ivan Hristov avatar
    196 posts

    Posted 20 Jun 2018 Link to this post

    Hi Nikola,

    You are right, the precision limitations was not mentioned in the documentation and this is now fixed.

    We're working in a dynamic environment and our targets and priorities for the next releases may change. This is the case with the Heatmap item - its implementation will be postponed for a subsequent release of our product. Based on the votes in our Feedback portal, it appears that the community considers other features more important than the Heatmap. We'll have it removed from the roadmap as soon as possible and replaced with the features we're committed to implement for R3 release.

    As for the Heatmap implementation - we'll consider the details during the design stage, but surely the item will cover the non-geographical scenarios like TreeMap, because for colored geographical representation we already have the Choropleth item

    Regards,
    Ivan Hristov
    Progress Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
