load report

[Dhenny]

how to bind datasource from C# to the report and load report file .trdx?
please give me an example..
thank you

[Steve]

Hello Dhenny,

With the introduction of the XML report definition the reports can exist not only as CLR types and objects in the memory but as XML markup stored in different ways (file, database, etc.). As we do not want to limit the users to work with only objects or files the need for a unified way for referencing reports in the applications emerged - Report Sources.

To show a report created with the standalone designer (.trdx file), you can use UriReportSource:

Copy Code

Copy Code

protected void Page_Load(object sender, EventArgs e)
{
            if (!IsPostBack)
            {
                Telerik.Reporting.UriReportSource uriReportSource = new Telerik.Reporting.UriReportSource();

                // Specifying an URL or a file path
                uriReportSource.Uri = @"C:\MyWebApplication\Reports\Barcodes Report.trdx";
                this.ReportViewer1.ReportSource = uriReportSource;
            }
}

If you prefer to work with CLR types and objects, you can deserialize the xml report definition as shown in the Serializing Report Definition in XML help article and proceed from there like you would normally do following the basic concepts of the programming language and the .NET platform.

Regards,
Steve
the Telerik team

[Pj]

Hello Steve

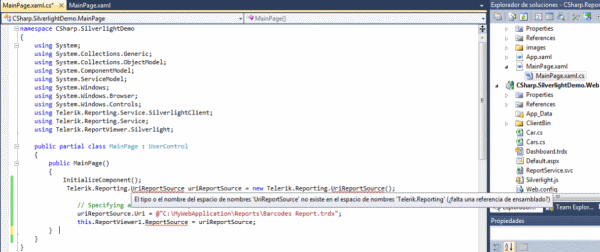

(Firstly sorry for my English ) I have the same problem but in a Silverlight project. If I want to use Telerik.Reporting.UriReportSource is not posible because in my xaml.cs file does not exist-->attach file (imagen error.png)

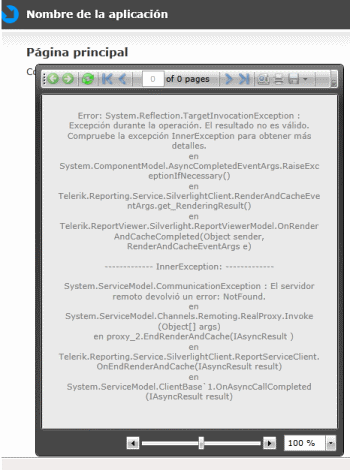

Secondly  I have tried to do http://www.telerik.com/help/reporting/wcf-report-service-how-to-add-custom-report-resolver.html in vb but it could not work.  On the other hand I  have found a complete example project in c#, but I haven´t found in vb.  I download  the project exampIe of  http://blogs.telerik.com/telerikreportingteam/posts/12-05-07/extending-telerik-reporting-service-with-custom-ireportresolver.aspx and i have tried to convert project c# to vb but it does not work. -->attach file (imagen error.png).
Please It´s posible to share the same project in c# convert it to  vb project example.

Thridly i try to deserialize the xml report definition as shown in the Serializing Report Definition in XML

     Dim settings As New XmlReaderSettings()
       settings.IgnoreWhitespace = True
       Using xmlReader As System.Xml.XmlReader = System.Xml.XmlReader.Create("SampleReport1.trdx", settings)
      Dim xmlSerializer As New Telerik.Reporting.XmlSerialization.ReportXmlSerializer()
      Dim report As Telerik.Reporting.Report = DirectCast(xmlSerializer.Deserialize(xmlReader), Telerik.Reporting.Report)
    End Using

 but i do not know how i can pass this deserialize file which is stored in variable Dim report As Telerik.Reporting.Report  to my viewer which is in a .xaml file or .xaml.vb. Please the same question is it possible share a complete project example to help us?.

Finally, i would like to ask if in the q3 2012 there are a new ways to load report file .trdx, or something new way help us?

I am very worry because i don´t get to work telerik reports which loads report file .trdx.

Thanks

[Peter]

Hello Pj,

In Q3 2012 we have migrated to Silverlight 5 and one of the improvements is the native vector print.

Generally the reporting engine is not compatible with Silverlight and it requires .NET framework to perform its operations, in other words the reports reside on the server and you cannot process them in your Silverlight application directly and Telerik Reporting WCF Service enables the remote access to the Telerik Reporting Engine. The Reporting Service acts as a communication interface between the client programs and the report server. Thus you have to resolve report definition and make the report definition changes on the server and this why we have provided the IReportResolver. In this line of thoughts our suggestion is to deserialize the reports, set up the report instance and serialize it again to a temporary location for report service usage as shown in the following IReportResolver implementation:

Imports Telerik.Reporting
Imports System.IO
Imports Telerik.Reporting.Service

Public Class ReportResolve
    Implements IReportResolver

    Public Function Resolve(reportName As String) As ReportSource Implements IReportResolver.Resolve

        'Try to reuse an already updated trdx
        Try
            Dim uri As New Uri(reportName)
            Return New UriReportSource() With { _
             .Uri = reportName _
            }
        Catch generatedExceptionName As UriFormatException
        End Try

        Dim settings = New System.Xml.XmlReaderSettings()
        settings.IgnoreWhitespace = True

        Using xmlReader = System.Xml.XmlReader.Create(Me.MapPath("report.trdx"), settings)
            Dim xmlSerializer = New Telerik.Reporting.XmlSerialization.ReportXmlSerializer()

            Dim report = DirectCast(xmlSerializer.Deserialize(xmlReader), Telerik.Reporting.Report)
            Dim dataSource = DirectCast(report.DataSource, Telerik.Reporting.SqlDataSource)
            dataSource.ConnectionString = ""
            dataSource.SelectCommand = ""

            Dim reportFilePath As String = MapPath(String.Format("report{0}.xml", Guid.NewGuid()))
            Using fileStream = New FileStream(reportFilePath, FileMode.OpenOrCreate, FileAccess.Write, FileShare.Write)
                Using xmlWriter = System.Xml.XmlWriter.Create(fileStream)
                    xmlSerializer.Serialize(xmlWriter, report)
                End Using
            End Using

            Dim reportSource As New UriReportSource
            reportSource.Uri = reportFilePath
            Return reportSource

        End Using
    End Function

    Private Function MapPath(path As String) As String
        Return HttpContext.Current.Server.MapPath(path)
    End Function

End Class

Check out the following help resources:

• Silverlight Report Viewer
• How to: Implement and use custom IReportResolver

Greetings,
Peter
the Telerik team
